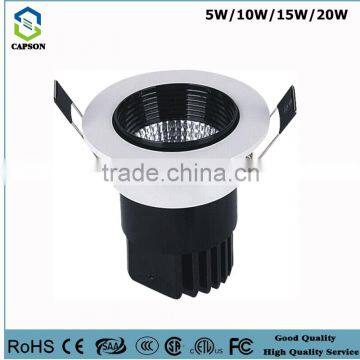

Whosale ceiling light High power 5W Dimmable COB LED Downlight

FOB Price

US$ 5.2 - 8 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Epistar	Install Style	Other, ceilighting lamp
Input Voltage(V)	AC85-265V	Lamp Power(W)	5
Lamp Luminous Flux(lm)	520	Lamp Luminous Efficiency(lm/w)	110
Color Temperature(CCT)	Other, cool white/warm white/pure white	Working Temperature(℃)	30, 50
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum
IP Rating	IP33	Certification	BV, CCC, CE, CQC, GS, SAA, UL, VDE
Place of Origin	Guangdong, China	Brand Name	capsonlighting
Model Number	CS-THD-011A-5W

Model	CS-THD-011A-5W
Dimension	D86*H68mm
Hole size	D75mm
Power	5W
Luminous flux	≥500lm
Lamp efficiency	90-100lm/w
Light source	Sanan'/Epistar/Bridgelux LEDs or Customized
Light degradation rate	25000h ≤ 30%
Color rendering index	Ra>82
Power factor	PF≥0.96
Beam angle	30°/ 45° / 60°Both available
Rated life	≥50000h
Color temperature	≥2700-6500KB
Working temperature	-30~+50°C
Input wattage	AC90-260V
IP code	IP33
Brand	Capson & Customized
Warranty	3 years
Certificate	CE, ROHS, SAA,TUV, EMC, LVD,UL,VDE
Application	Applicable to all building lighting
Payment terms	By T.T, Western Union, L/C, etc
MOQ	1pcs
Product features: 1 simple and beautiful appearance, convenient installation; 2 high purity aluminum die-casting, good heat dissipation effect, strong light transmittance; 3 vacuum coating reflector, light effect is good, light transmission rate is strong; 4 imported 5730SMD lamp, light uniformity, high display; 5 widely used in shopping malls, hotels, office buildings and other places, is the ideal alternative product of the traditional lamp. We also make customized products, any question, don't hesitate to contact us

Other Power Technical Parameters
Model	Voltage	Power	Lamp size	Hole Size	Color Temperature	Beam Angle	CRI	CRISurface Color
CS-THD-011	AC85~265V	5W	D86*H68mm	D75mm	2700~6500K	30°45°60°	Ra≥80	Silver+White+Two Black/ Silver+White+ Black
CS-THD-011	AC85~265V	10W	D110*H85mm	D95mm	2700~6500K	30°45°60°	Ra≥80
CS-THD-011	AC85~265V	15W	D135*H95mm	D120mm	2700~6500K	30°45°60°	Ra≥80
CS-THD-011	AC85~265V	20W	D160*H110mm	D140mm	2700~6500K	30°45°60°	Ra≥80
