PET recycling drying washing plant

NO

ITEM

DESCRIPTION

SELECTIVITY

1

Prewasher

Remove the solid impurity which are water insoluble, such as handstone, sand, etc. It can also wash bottles' surface.

Optional

2

Bale Breaker

It is used in large capacity recycling line, and bottles are compressed in bale.

Optional

3

Belt Conveyer

Including the metal detector.

1Necessary

4

Label Remover

Label removing efficienc more than 98%

Optional

5

Manual Select Plateform

Made according to workers' height, supply a suitable plate for selecting the left lables or some other impurity.

Optional

6

Belt Conveyer

Conveying the bottles into crusher.

2Necessary

7

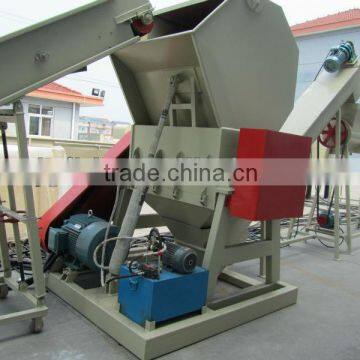

Crusher

With water, the material of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too.

3Necessary

8

Screw Feeder

Conveying the flakes into friction washer.

Optional

9

Friction Washer

Scrubbing material in high-speed with water.

Optional

10

SCrew Floating Washer

Remove few remand paper, sand, label from material based on different density.

Optional

11

Screw Feeder

Conveying the flakes into hot washer.

4Necessary

12

Hot Washer

High temperature stirring washing with caustic soda. Water can be heated by steam or electric.

5Necessary

13

Screw Feeder

Same as Item 8.

6Necessary

14

Friction Washer

Same as Item 9.

7Necessary

15

Screw Floating Washer

Same as Item 10.

8Necessary

16

Dewatering Machine

High speed centrifuge drying.

9Necessary

17

Drying System

Electric heating wind drying.

10Necessary

18

Label Wind Separator

The last left impurity will be separated from flakes by the blower fan.

Optional

19

 Silo

Store the final material.

11Necessary

20

Electrical Control Panel

Adopts Siemens and DELIXI as main component.

12Necessary
