TLJ-300 PP PE Plastic Film Agglomerator

Specifications

TLJ-300 PP PE Plastic Film Agglomerator

1. Features of TLJ-300 PP PE Plastic Film Agglomerator  :

The TLJ-300 PP PE Plastic Film Agglomerator is used to granulate the thermal plastic films, PET fibers, whose thickness is less than 2 mm into small granules & pellets directly. The soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other thermoplastics are suitable for it.

2. Working Principle of TLJ-300 PP PE Plastic Film Agglomerator :

When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing  processing,  the material  that soaked  up lots heat from  the  frictional  movement  of  material  being  crushing  and  the  wall  of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely,  the  cold  water  pre-prepared  is  sprayed  into  the  material  being crushed. The water will be evaporated off quickly and the surface temperature of  material  being  crushed  drop  down  quickly  also.  So  the  material  being crushed will become small particles or granules. It is easy to recognize the particles  by different  size and can be colored  by using  of color  agent being putted into the container during the crushing processing.

3,Main Technical Standards of TLJ-300 PP PE Plastic Film Agglomerator:

Blades of  TLJ-300 PP PE Plastic Film Agglomerator

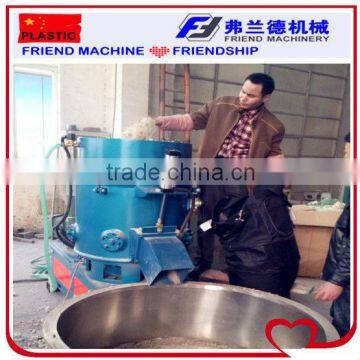

 Factory Picture
