PVC recycling granulator /plastic pelletizing line
- 5 Set / Sets per Month
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Granulating Production Line, PVC Hot-cut Granulation Line | |
| Capacity | 120-600kg/h | Place of Origin | Jiangsu, China | |
| Brand Name | Friend | Model Number | SJSZ | |
| Material | PVC | Screw Design | Double | |
| Voltage | Customized | Power | 37KW | |
| Dimension(L*W*H) | 10000*1200*1500MM | Weight | 4500KG | |
| Certification | ISO9001, ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

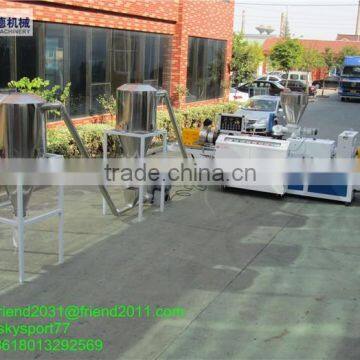

PVC plastic pelletizing line
PVC granulating line/PVC pelletizer/PVC pelletizing machine
Principle and applications:
With CE certifications, we have exported to all over world, such as Poland, Germany, Brazil, Holand, etc. With the better after sale service, we are always give our customer the best production line.
With different designs of screw,this machine can be applied to granulate the recycled material of rigind PVC,soft PVC and waste PVC.It can be stopless in the course of production.It uses pneumatic conversion and strong wind blowing.At the same time can adjust stainless steel storage container and can run at high speed for along time while extrude stably.
Application:
1. PVC granulating machine
2. Raw material: PVC
3. Capacity: 100-150kg/hour
4. Cutting: Hot cutting
5. PVC compounding, profiles
Main technical standards:
| Model | SJSZ-51 | SJSZ-65 | SJSZ-80 | SJSZ-92 |
| Screw dia.(mm) | 51/105 | 65/132 | 80/156 | 92/188 |
| Max speed(rpm) | 40 | 38 | 37 | 36 |
| Main motor(KW) | 22 | 37 | 55 | 90 |
| Output(KG/H) | 100-150 | 150-250 | 250-380 | 380-700 |
| Centre height(mm) | 1050 | 1050 | 1050 | 1100 |
| Net weight(KG) | 3000 | 4000 | 5500 | 8000 |
| L*W*H(m) | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
