Product Details

Place of Origin	Zhejiang, China		Brand Name	YF / OEM
Model Number	C-band LNB

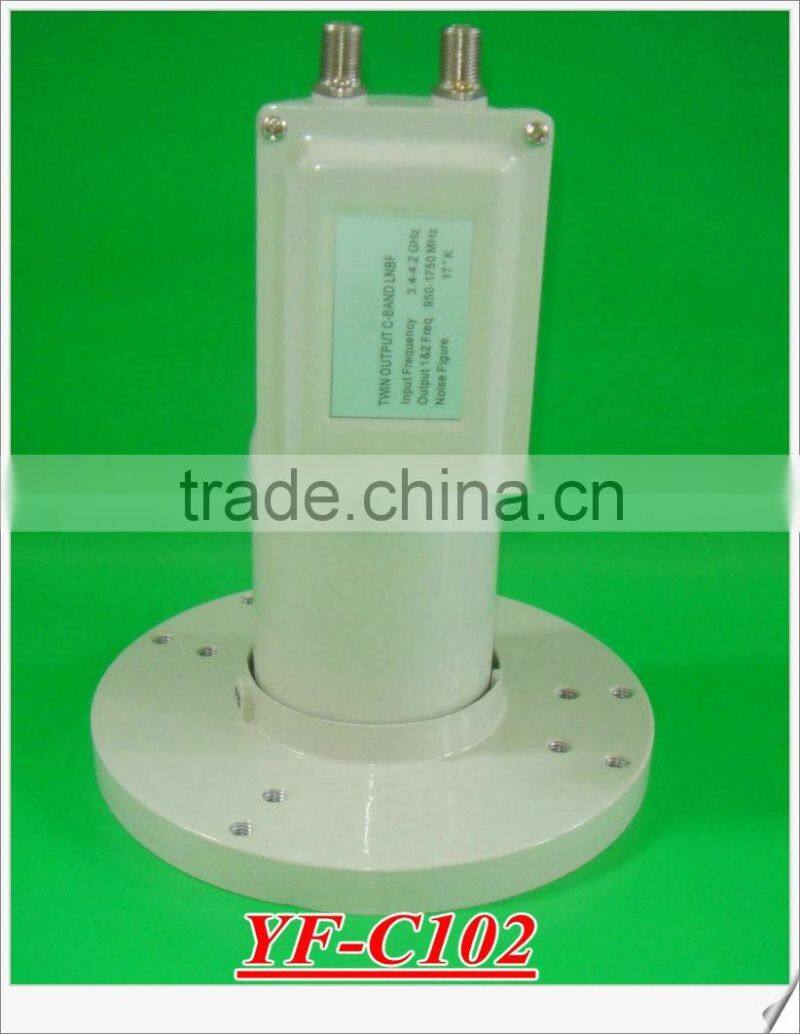

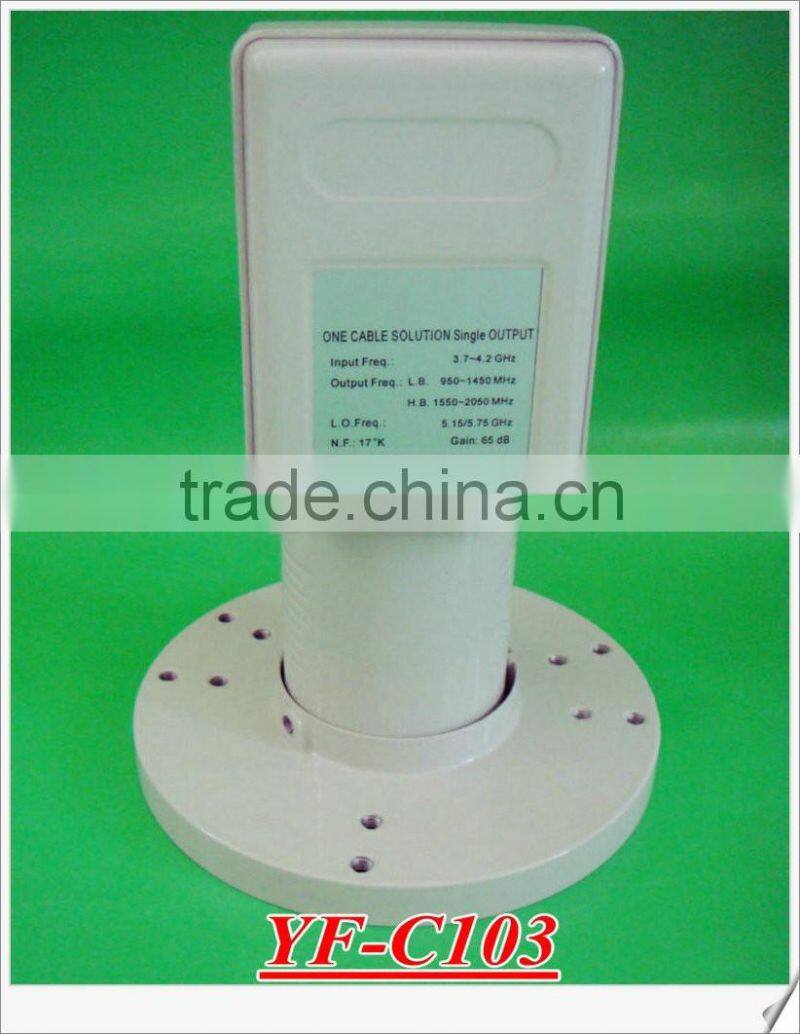

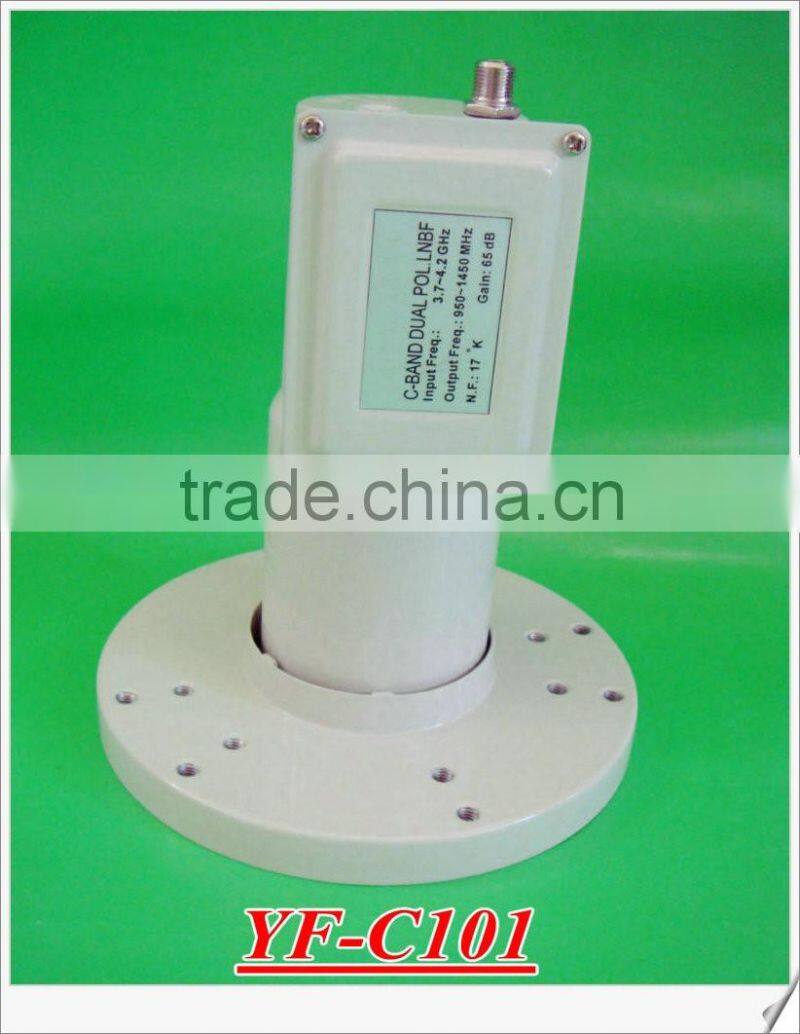

C band universal single,twin (double) ,quad,HD LNBF factory

WeChat/Whatsapp: +8615869301566

Skype: dingdingfengfeng

Specifications
Input freq. range: 3.4 to 4.2GHz L.o. frequency: 5150MHz (+/- 500KHz @ 25 degree Celsius) L.o. stability: +/-1.5MHz (-40 to +70 degree Celsius) Output freq. range: 950 to 1750MHz Noise figure: 20 degree K typ. Conversion gain: 55dB typ. Input VSWR: 2.5:1 (max.) Output VSWR: 2.0:1 (max.) Output connector: F-female connector Output impedance: 75 ohms typ. Cross polar isolation: 20dB (min.) Image rejection: 45dB (min.) Phase noise: -85dBc @ 10KHz (min.) Supply voltage: 11.5 to 14.0V (vertical polarization) 16.0 to 19.0V (horizontal polarization) Operating temperature: -40 to +70 degree Celsius Storage temperature: -40 to +80 degree Celsius Relative humidity: 0% to 95%

Specifications

Input freq. range: 3.4 to 4.2GHz
L.o. frequency: 5150MHz (+/- 500KHz @ 25 degree Celsius)
L.o. stability: +/-1.5MHz (-40 to +70 degree Celsius)
Output freq. range: 950 to 1750MHz
Noise figure: 20 degree K typ.
Conversion gain: 55dB typ.
Input VSWR: 2.5:1 (max.)
Output VSWR: 2.0:1 (max.)
Output connector: F-female connector
Output impedance: 75 ohms typ.
Cross polar isolation: 20dB (min.)
Image rejection: 45dB (min.)
Phase noise: -85dBc @ 10KHz (min.)
Supply voltage:
11.5 to 14.0V (vertical polarization)
16.0 to 19.0V (horizontal polarization)
Operating temperature: -40 to +70 degree Celsius
Storage temperature: -40 to +80 degree Celsius
Relative humidity: 0% to 95%
