Home > Products > Grinding Steel Ball > 2016 Selling Hot Steel Ball Function
2016 Selling Hot Steel Ball Function
- SHANGHAI/DALIAN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | OEM | |
| Model Number | OEM | Application | industry, ball mill,cement plant,mine, ball mill,cement plant,mine | |
| Dimensions | customized |
Product Description

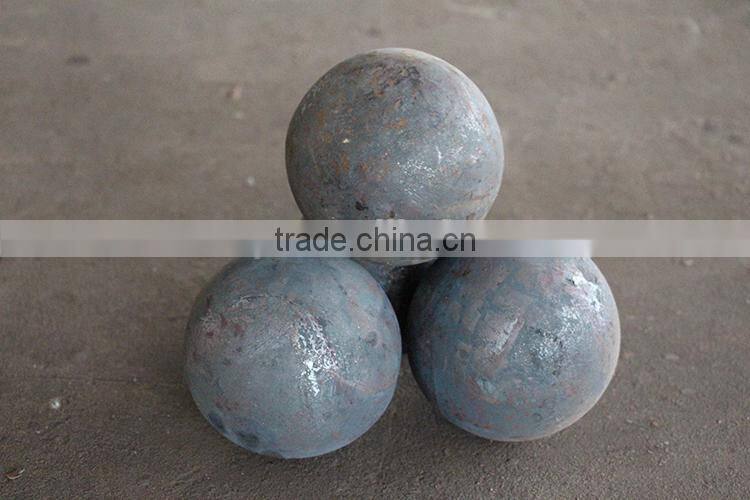

2016 selling hot steel ball function
The application of grinding steel balls is ultrafine powder preparation and processing.They are widely used in cement building materials,metal mine,coal slurry thermal power,chemical,ceramic material,light paper making,magnetic materials and many other industries.The main advantages of the balls are with high hardness and tenacity,low abrasion and less crush.
Production Process:
Raw Material → Cutting → Stove → Forging → Transfer Machine → Quenching→
Heat Treatment→ Dimension Test → Hardness Test →Packing →Transportation
Main Specification and Technology
Specification
Diameter(mm) | |||||||||||||||||
10 | 12.7 | 15 | 17 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 125 | 130 |
Chemical composition
Name | style | C | Si | Mn | Cr | Mo | P | S |
Normal | ZQCr10 | 1.8-3.2 | 0.3-1.2 | 0.2-1.0 | 10-13 | micro- | ≤0.10 | ≤0.10 |
Special | ZQCr26 | 2.0-3.0 | ≤1.0 | 0.2-1.0 | 22-28 | ≤1.0 | ≤0.10 | ≤0.08 |
ZQCr20 | 2.0-3.0 | ≤1.0 | 0.2-1.0 | 18-22 | ≤1.0 | ≤0.10 | ≤0.08 | |
ZQCr17 | 2.0-3.2 | ≤1.0 | 0.2-1.0 | 13-18 | ≤1.0 | ≤0.10 | ≤0.08 |
Properties and Micro-structure
Name | Style | HRC | AK(J/cm²) | Metallographic structure | Falling ball Impact fatigue Life(times) | |
Quench | Not quench | |||||
Normal | ZQCr10 | ≥58 | ≥50 | ≥4.0 | M+C | ≥18000 |
Special | ZQCr26 | ≥58 | ≥45 | ≥5.0 | M+C | ≥18000 |
ZQCr20 | ≥58 | ≥45 | ≥4.0 | M+C | ≥18000 | |
ZQCr17 | ≥58 | ≥49 | ≥4.0 | M+C | ≥18000 | |
Casting ball size and weight
Diameter | weight | Pieces Per Ton | Diameter | weight | Pieces Per Ton |
Φ30 | 0.11 | 9091 | Φ90 | 2.90 | 345 |
Φ40 | 0.257 | 3891 | Φ100 | 4.0 | 250 |
Φ50 | 0.50 | 2000 | Φ110 | 5.30 | 188 |
Φ60 | 0.867 | 1153 | Φ120 | 6.80 | 147 |
Φ70 | 1.37 | 729 | Φ125 | 7.75 | 129 |
Φ80 | 2.05 | 487 | Φ130 | 8.74 | 114
|

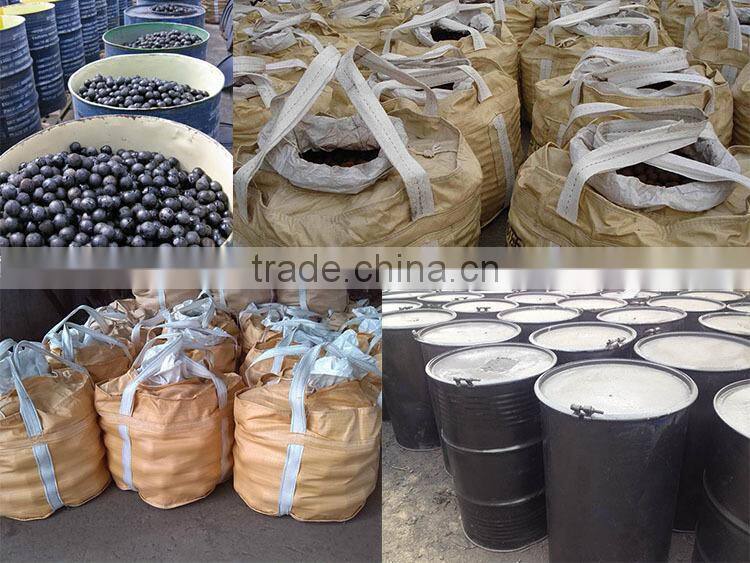

Flexible container bags or steel drums, depends on customer’s need
Advantages
1. High hardness and good wear resistance
2. Strong toughness and unbreakable
3. Regular outer shape, keeping a round shape without deformation
4. Light weight and energy saving and environmental protection
Use tips
Please don’t use different material balls together to avoid high rate of broken
To ensure the product quality and consistency,we have obtained the ISO 9001 quality system certificate
1. Q:Does your company offer free sample?
A: Yes, we can offer free sample ,we will not pay for the shipping cost
2. Q:Does your company accept any factory inspection?
A: Yes,we accept customer inspection and third party inspection
3. Q: Can i be a distributor of YUNTIAN?
A: Of course you can.
4. Q:What are the benefits of being a YUNTIAN distributor?
A:-Special discount
-Marketing protection.
-Point to point technical supports and after sales services.
5. Q:How can i become a distributor of YUNTIAN?
A:Contact us immediately for further details by sending us an inquiry.
