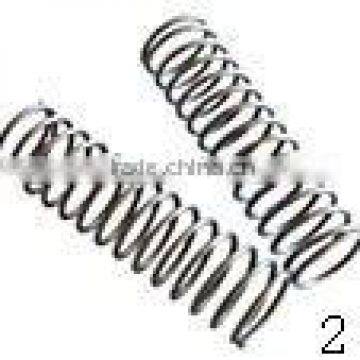

Black Carbon Spring Steel Wire
- Nantong Port/Shanghai Port
- T/T
You May Like
Product Details
| Steel Grade | 45#,60#,70#,SWRH72A,SWRH72B,80#,SWRH82B | Standard | ASTM, DIN, GB, JIS | |
| Wire Gauge | 0.2-13mm | Place of Origin | Jiangsu, China | |
| Type | Spring | Application | Other, spring | |
| Alloy Or Not | Non-alloy | Brand Name | Golden Rabbit |
Product Description
Specifications
1.Diameter range:0.2-13mm2.Application:spring,mattress,wire rope.
3.Standard:GB4357-89,DIN17223-84,JISG3521-91
High Carbon Steel Wire Performance:
High Carbon Steel Wire | |||
wire diameter(mm) | Tensile Strength(N/mm² ) | ||
Grade B | Grade C | Grade D | |
0.20 | 2150-2550 | 2400-2790 | 2690-3090 |
0.25 | 2060-2450 | 2300-2700 | 2640-3040 |
0.30 | 2010-2400 | 2300-2700 | 2640-3040 |
0.40 | 1910-2300 | 2250-2650 | 2600-2990 |
0.50 | 1860-2260 | 2200-2600 | 2550-2940 |
0.60 | 1760-2160 | 2110-2550 | 2450-2840 |
0.70 | 1710-2110 | 2060-2450 | 2450-2840 |
0.80 | 1710-2060 | 2010-2400 | 2400-2840 |
1.00 | 1600-2010 | 1960-2300 | 2300-2690 |
1.20 | 1620-1910 | 1910-2250 | 2250-2550 |
1.40 | 1620-1910 | 1860-2110 | 2150-2450 |
1.60 | 1570-1860 | 1810-2160 | 2110-2400 |
1.80 | 1520-1810 | 1760-2110 | 2010-2300 |
2.00 | 1470-1760 | 1710-2010 | 1910-2200 |
2.20 | 1420-1710 | 1660-1960 | 1810-2110 |
3.00 | 1370-1670 | 1570-1860 | 1710-1960 |
4.00 | 1320-1570 | 1520-1760 | 1620-1860 |
5.00 | 1320-1570 | 1470-1710 | 1570-1810 |
6.00 | 1220-1470 | 1420-1660 | 1520-1760 |
7.00 | 1170-1420 | 1370-1570 |
|
8.00 | 1170-1420 | 1370-1570 |
|
9.00 | 1130-1320 | 1320-1520 |
|
10.00 | 1130-1320 | 1320-1520 |
|
11.00 | 1080-1270 | 1270-1470 |
|
12.00 | 1080-1270 | 1270-1470 |
|
13.00 | 1030-1220 | 1220-1420 |
|
Loading Capacity:
20" container:loading 20-25 Ton.
