The diesel engine self priming water pump set
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | SCGC | |
| Model Number | ZCSB15/200F | Theory | Vacuum Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Other | Fuel | Diesel | |
| Pressure | Low Pressure | Application | Other |
Product Description

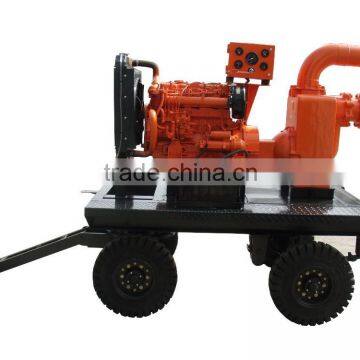

The water-cooled diesel engine drive self priming water pump set
The water-cooled diesel engine drive self priming water pump set is a new type designed by ourselves. It is driven by the water-cooled diesel engine through flexible coupling, has the advantages of neoteric construction, high efficiency, good anti-cavitation characteristic, small vibration, low noises, reposeful and reliable operation, convenient installation and uninstallation, etc.
Mainly used in fire fighting systems, water works, architectural water supply, irrigations, drainage pump stations, industrial water supply systems, shipping industries, mine drainage and petrochemical, metallurgical industries etc liquid transporting occasions.
Pump set model | ZCSB15/100 | ZCSB20/80 | ZCSB20/100 | ZCSB20/120 | ZCSB30/180 | ZCSB15/200 |
Rated capacity ( m3/h) | 100 | 80 | 100 | 120 | 180 | 200 |
Rated head (m) | 15 | 20 | 20 | 20 | 30 | 15 |
Rated speed (r/min) | 1500-1800 r/min | |||||
Inlet diameter (mm) | 100 | 100 | 100 | 125 | 150 | 150 |
Outlet diameter (mm) | 75 | 75 | 75 | 100 | 125 | 125 |
Engine model | 4L22-SB1 | 4L22-SB1 | 4L22-SB1 | 4L22-SB1 | 4100AD | 4100AD |
Engine rated output (kW) | 18 | 18 | 18 | 18 | 31.6 | 31.6 |
Self priming pump model | ZW100-100-15 | ZW100-80-20 | ZW100-100-20 | ZW125-120-20 | ZW150-180-30 | ZW150-200-15 |
Trailer truck type | Two tires | Two tires | Two tires | Two tires | Two tires | Two tires |
control unit | Lubricating oil pressure gauge,temperature gauge ,Tachometer ,Hour meter ,Charging ammeter “START/STOP”switch | |||||
Auxiliary systems | maintenance-free battery | |||||
LA high flexible coupling | ||||||
Trailer truck | a completely welded steel structural chassis | |||||
150L-250L fuel tank in the chassis with fuel gauge for 12 hours running | ||||||
Inside mounted Exhaust muffler and pipe | ||||||
Two or four solid type rubber tires | ||||||
two mechanical supports | ||||||
mechanical redirector for four tires trailer truck | ||||||
Pump set type (option) | Open type,trailer type,weatherproof type,soundproof type | |||||
We are looking for sales and after-sales agents worldwide for these products.
Pump set model | ZCSB25/200 | ZCSB14/280 | ZCSB18/300 | ZCSB28/280 | ZCSB20/420 | ZCSB14/800 |
Rated capacity ( m3/h) | 200 | 280 | 300 | 280 | 420 | 800 |
Rated head (m) | 25 | 14 | 18 | 28 | 20 | 14 |
Rated speed (r/min) | 1500-1800 r/min | |||||
Inlet diameter (mm) | 150 | 200 | 200 | 200 | 200 | 250 |
Outlet diameter (mm) | 125 | 150 | 150 | 150 | 150 | 200 |
Engine model | 4100AD | 4100AD | 4100AD | 4135D | 4135D | 4135AD |
Engine rated output (kW) | 31.6 | 31.6 | 31.6 | 58.8 | 58.8 | 73.5 |
Self priming pump model | ZW150-200-25 | ZW200-280-14 | ZW200-300-18 | ZW200-280-28 | ZW250-420-20 | ZW300-800-14 |
Trailer truck type | Two tires | Two tires | Two tires | Four tires | four tires | four tires |
control unit | Lubricating oil pressure gauge,temperature gauge ,Tachometer ,Hour meter ,Charging ammeter “START/STOP”switch | |||||
Auxiliary systems | maintenance-free battery | |||||
LA high flexible coupling | ||||||
Trailer truck | a completely welded steel structural chassis | |||||
150L-250L fuel tank in the chassis with fuel gauge for 12 hours running | ||||||
Inside mounted Exhaust muffler and pipe | ||||||
Two or four solid type rubber tires | ||||||
two mechanical supports | ||||||
mechanical redirector for four tires trailer truck | ||||||
Pump set type (option) | Open type,trailer type,weatherproof type,soundproof type | |||||
We are looking for sales and after-sales agents worldwide for these products.
