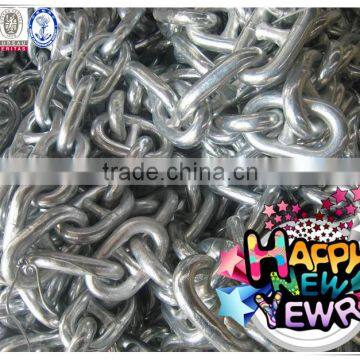

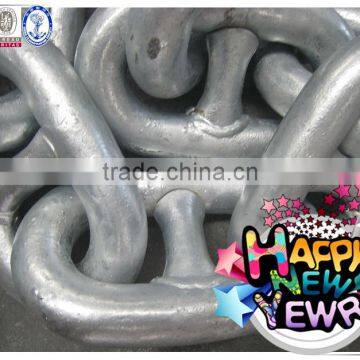

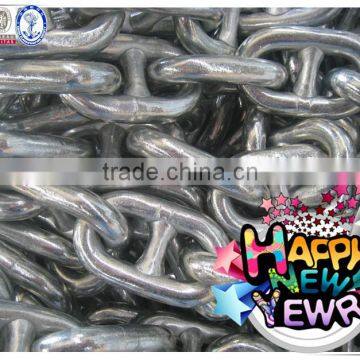

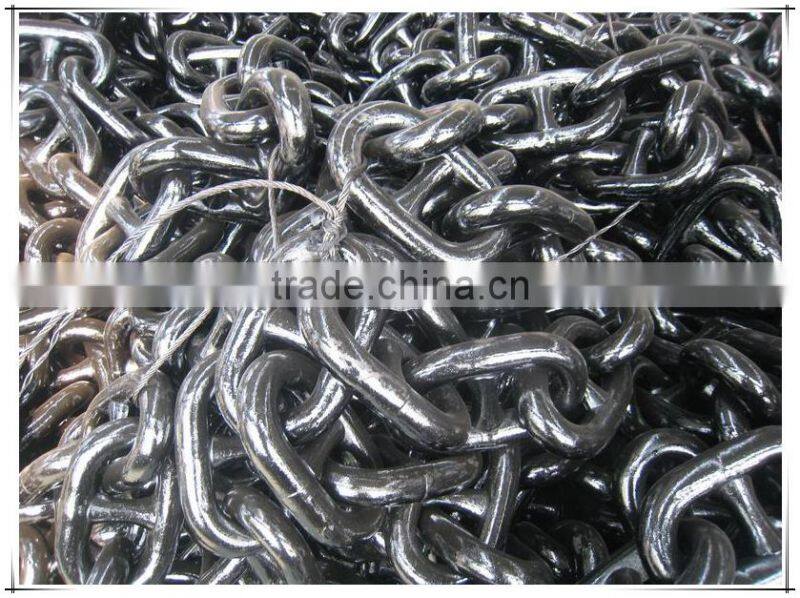

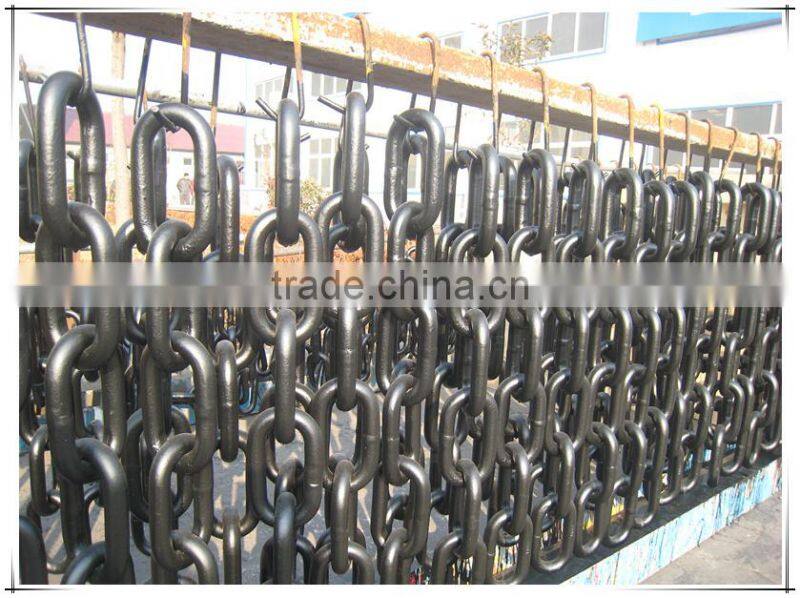

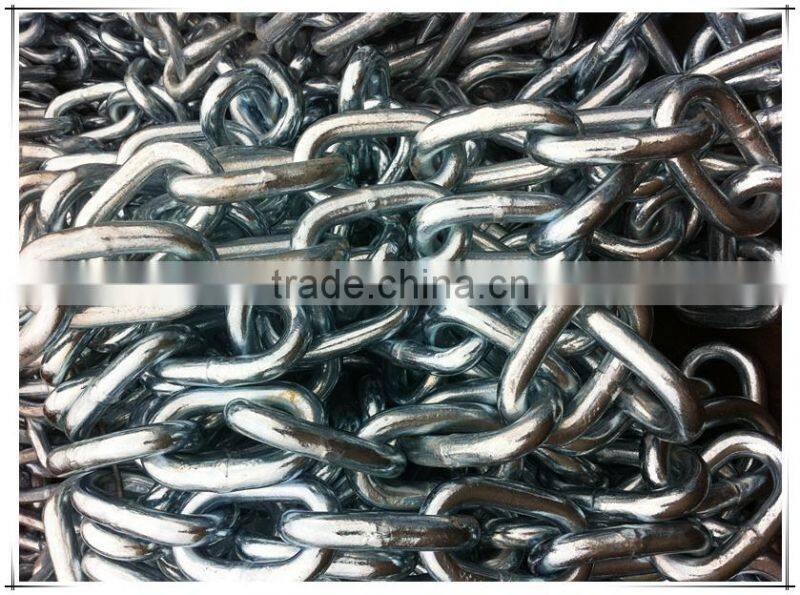

2016 High Quality Steel Anchor Galvanized Short Link Chain

FOB Price

US$ 1 - 1,000 / Meter

10 Meters(Min. Order)

Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	QINGDAO TAI STAR MACHINERY CO .,LTD
Model Number	STUDLESS LINK CHAIN	Structure	Welded Chain
Function	Other, Anchor chain	Material	Alloy
Standard or Nonstandard	Standard

Product Description

Material: carbon Steel

Original: China

Chain Diameter: 12.5mm to 70mm

Steel grade: U3,U2, U1

Technology: Welded link Chain

Usage: Ship, Boat, Marine, Vessel and so on

1 length: 27.5meter (normal), others can supply too bases on requirements

Test Load: Break and Proof testing

Packing: Bulk or bags package

High strength anchor chain

Certificate: CCS ABS BV GL LR KR etc

Payment terms: T/T, L/C, West Union or others

To non-standard chain, we can produce on your drawing

SURFACE:SELF-COLORED OR ACCORDING TO CLIENT REQUEST

MATERIAL:(U1:CM370;U2:CM490;U3:CM690)

OPEN LINK / STUDLESS LINK ANCHOR CHAIN, LINK SIZE (6×3.6D), TEST LOAD AND WEIGHT

D(φ) DIAMETER		CHAIN LINK SIZE		BM1 U1 OPEN LINK CHAIN		BM2 U2 OPEN LINK CHAIN		BM3 U3 OPEN LINK CHAIN		APPROX. WEIGHT
D(φ) DIAMETER		L OUTSIDE LENGTH	B OUTSIDE WIDTH	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	27.5M
INCH	MM	MM	MM	KN	KN	KN	KN	KN	KN	KG
1/2	12.5	75	45	28.75	57.81	41.20	82.60	56.40	112.80	85.41
9/16	14	84	50.4	34.78	69.93	51.00	101.90	70.76	141.51	106.55
5/8	16	96	57.6	47.10	94.72	66.20	132.30	92.42	184.83	139.43
11/16	17.5	105	63	56.35	113.31	78.89	157.78	110.55	221.10	178.35
3/4	19	114	68.4	66.42	133.57	93.60	187.20	130.32	260.64	217.68
13/16	20.5	123	73.8	77.33	155.49	108.64	217.27	151.70	303.42	229.14
7/8	22	132	79.2	89.06	179.08	125.40	250.90	174.40	349.40	264.49
15/16	24	144	86.4	105.98	213.25	149.90	298.90	207.90	415.80	341.82
1-1/16	26	156	93.6	124.38	250.12	175.40	350.80	244.00	488.00	369.94
1-1/8	28	168	100.8	144.26	290.08	203.80	406.70	283.00	566.00	427.04
1-3/16	30	180	108	165.60	333.00	234.20	467.50	324.90	649.80	490.98
1-1/4	32	192	115.2	188.42	378.88	265.60	531.20	369.60	739.30	559.65
1-5/16	34	204	122.4	212.70	427.72	299.90	599.80	417.30	834.60	671.52
1-7/16	36	216	129.6	238.46	479.52	336.10	672.30	467.80	935.70	707.85
1-1/2	38	228	136.8	265.70	534.28	374.40	748.70	521.30	1042.50	788.98
1-9/16	40	240	144	294.40	592.00	414.50	829.10	577.60	1155.20	869.36
1-5/8	42	252	151.2	324.58	652.68	457.70	915.30	636.80	1273.60	959.30
1-3/4	44	264	158.4	356.22	716.32	502.70	999.60	698.90	1398.00	1111.25
1-13/16	46	276	165.6	389.34	782.92	548.80	1097.60	763.90	1527.80	1152.07
1-7/8	48	288	172.8	423.94	852.48	597.80	1195.60	831.70	1663.50	1256.26
2	50	300	180	460.00	926.09	648.80	1293.60	902.50	1805.00	1360.41
2-1/16	52	312	187.2	497.54	1000.48	697.63	1395.26	976.14	1952.28	1485.61
2-1/8	54	324	194.4	536.54	1078.92	752.33	1504.66	1052.68	2105.36	1648.08
2-3/16	56	336	201.6	577.02	1160.32	809.09	1618.18	1132.10	2264.20	1715.97
2-5/16	58	348	208.8	618.98	1244.68	867.91	1735.82	1214.40	2428.80	1844.50
2-3/8	60	360	216	662.40	1332.00	928.80	1857.60	1299.60	2599.20	1973.29
2-7/16	62	372	223.2	707.30	1422.28	991.75	1983.50	1387.68	2775.36	2101.56
2-1/2	64	384	230.4	753.66	1515.52	1056.77	2113.54	1478.66	2957.32	2298.47
2-9/16	66	396	237.6	801.50	1611.72	1123.85	2247.70	1572.52	3145.04	2398.10
2-11/16	68	408	244.8	850.82	1710.88	1192.99	2385.98	1669.26	3338.52	2522.88
2-3/4	70	420	252	901.60	1813.00	1264.20	2528.40	1768.90	3537.80	2697.65

Accessories

ANCHOR	JIS STOCKLESS ANCHOR
	BALDT ANCHOR
	HALL ANCHOR
ANCHOR CHAIN	OPEN/STUDLESS LINK CHAIN
ANCHOR CHAIN	STUD LINK CHAIN
CHAIN	English standard link chain	English standard Short link chain
		English standard Medium link chain
		English standard Long link chain
	American standard link chain	American standard Proofcoil chain ASTM80(G30)
		American standard High test chain ASTM80(G43)
		American standard Transport chain ASTM80(G70)
		American standard Proofcoil chain NACM90(G30)
		American standard Proofcoil chain NACM96(G30)
	Germanic standard link chain	Germanic standard DIN763 link chain
		Germanic standard DIN764 link chain
		Germanic standard DIN766 link chain
		Germanic standard DIN5685 A/C link chain
	Australian standard link chain	Australian standard Short link chain
		Australian standard Medium link chain
		Australian standard Long link chain
	Russia standard link chain
	Dobber chain
	Hatch board chain
	Binding chain
	Lifting chain
	High tensility chain for mining
	High intensity chain
ANCHOR ACCESSORIES	Anchor shackle
	Joint shackle
	Kenter shackle
	Swivel
SHACKLE	European Type Anchor Shackle SH01
	European Type D Shape Shackle SH02
	US Type Shackle G210 G209 SH06/SH05
	US Type Shackle G2150 G2130 SH08/SH07
	JIS Type Shackle SH19
OTHER PRODUCTS	CHAIN TENSIONER
	TOWING RING/CHIN BRACKET
	BOLLARD
	U-ANCHOR
	EC-3ANCHOR

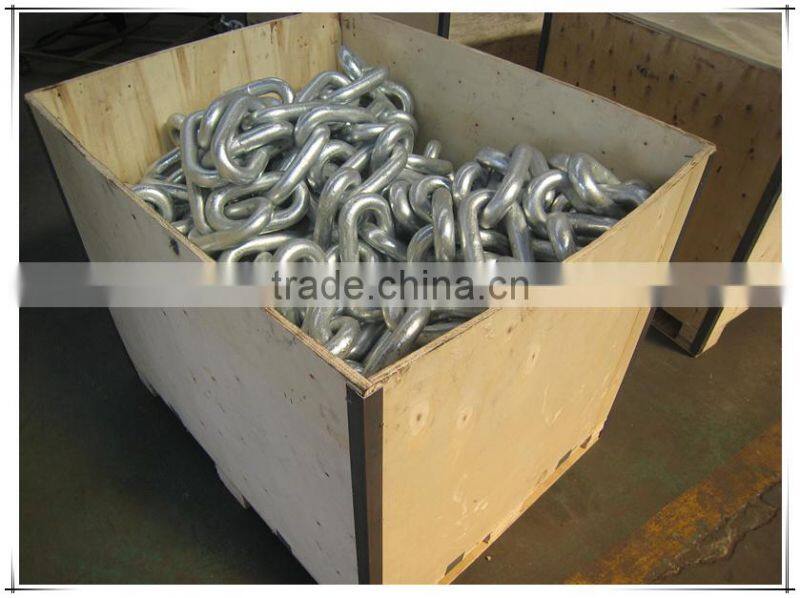

Packaging & Shipping

Company Information

Qingdao Tai Star Machinery Co.,Ltd.establish in 1996, is one of leading companies in China,specializing in producing anchor chain and chain.

Our compangy is located in Qingdao City,the area of our compang is about 40,000 square meters,and have fixed assets RMB90,000,000, our company have 200 employees,10 engineers and 30 professional technicians, factory yearly capacity is about 12,000 tons

We can manufacture Grade 1,Grade 2 and Grade 3 stud&studless anchor chain as well as various chain accessories. We can also manufacture English standard,American standard,German standard,and Russian standard chain,and high test chain,widely used in ship,mining,pulling,binding,lifting and so on,with diameter from 6mm to 70mm. Meanwhile,we can process special specification welded chain and chain assemblies according to sample or drawing of clients. Our products sell well at home and abroad,was favourably reviewed.

FAQ

1. Are you a factory or a trading company?

We are a factory manufacturing,established in 1996,is one of leading companies in China,specializing in producing anchor chain and chain.

Our company is located in Qingdao China. The area of our factory is about 40,000 square meters, and has fixed assets RMB 90,000,000,it also has 200 employees, factory yearly capacity is about 12, 000 tons.

2. How do you ensure quality?

We have strict self inspection mechanism, Third party inspection is accepted

Guaranteeing quality inspection of each product before assembly and packing.

3. Where are your customer?

After 20 years of development,our customers all over the world.Our products sell well at home and abroad,was favourably reviewed.
