Wireless Remote 3G Inclinometer Low Price for Satellite/railway/oil drilling/Geological equipment Level Control

1pcs/box,10pcs/ctn

Specifications

Wireless Remote 3G Inclinometer Low Price for Satellite/railway/oil drilling/Geological equipment Level Control

SCA126T is a serial output dual-axis inclinometer launched by RION company to the field of industrial control, built-in high-precision 16bit A / D differential converter, through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interface RS485, RS232, RS422, TTL, CAN,MODBUS are optional.

Because of Built in ADI company’s high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor, to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response standards up to 18Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability, and a variety of output options. Suitable for a variety of harsh industrial control environment.

Features:

• Dual-Axis Inclinometer
• Measuring Range :±1~±90° optional
• Accuracy: refer to the technical dataWide voltage input: 9~36V
• Wide temperature working: -40~+85°C
• Resolution: 0.01°
• IP67 protection class
• Highly anti-vibration performance >2000g
• Direct lead cable interface
• Small size :90×40×26mm(customized)
• Output mode RS232/RS485/RS422/PWM/CAN (optional)

Application:

• Satellite positioning Search
• Rail-mobile monitoring
• engineering mechanical measurement of dip angle
• oil-well drilling equipment
• Radar detection of vehicle platform
• Underground drill posture navigation
• Gun Barrel angle measurement in early shooting
• Based on the angle direction measurement
• Satellite communications vehicle posture detection
• Shield pipe jacking application

Product Show:

Technical Data

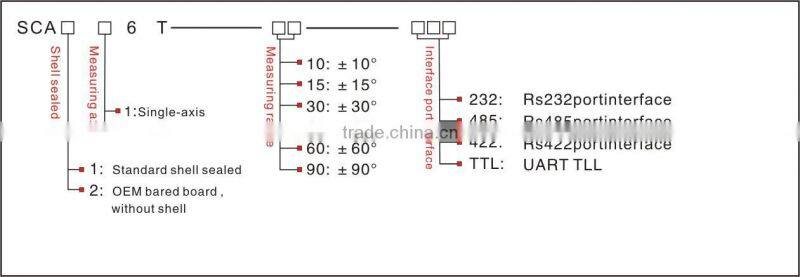

Order infomation:

Measuring Directions&Fix

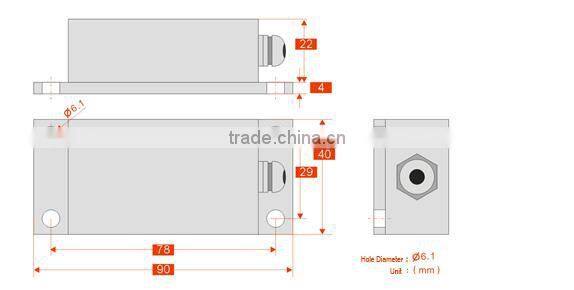

Dimension

• Packaging: carton with sponge
• Delivery time: within 7 business days for common order after we receive the full payment
• Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.

  Our Services

Pre-sale service

• Evaluate your application, recommend the most suitable item;
• Make you fully understand the products, usage and maitenance;
• Answer all your questions, and let you have no doubt before make any decision;
• Adjust, revise or redesign our products to consist with the application(for customized service);

Sales service

• Recommend the best payment term and shipping term for you;
• Make official quotation and PI with company Stamp;
• Keep you posted about the products producing;
• Send exactly requried products on time;
• Provide tracking NO. and inform you when products leave factory and arrive destination;

Post-sale service

• Instruct products connection, installation and application;
• if anything happen to products(barely will), engineer will evaluate the problem, solve the problem or exchange malfunction item for free, make sure you get the best solution and service.
• Keep tracking the products usage and ask for suggestion and advice.

Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.

Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.

You satisfaction is our mission.

Certificates & Honor

•
  FAQ
• How to choose suitable item: bowse our webiste and choose products by catalog, or contact us directly by email, skype, TM.
• How to buy: We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
• How to ship: by DHL, Fedex, UPS, EMS, TNT and ARAMEX Express mainly, we have long term and reliable logistic cooperator to ensure the safety and cost-saving
• How to apply: We provide instruction manual, software and online service to instuct you to connect, install, use and maintain our products.
• What if anything happen to products: contact us, we will evaluate the problem and instruct you, exchange the wrongly purchased item or fix the malfunction item for free...till you get the best solution.
• What if no suitable item to be found: customerized service is available.
• How to cooperate: we offer technical support, products info, samples, favorable terms&condition and sales support in concerned region.
