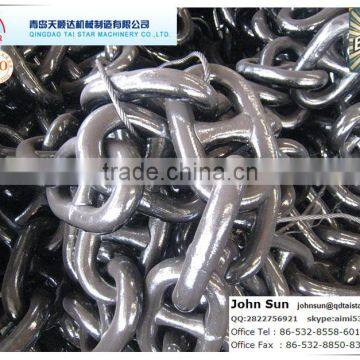

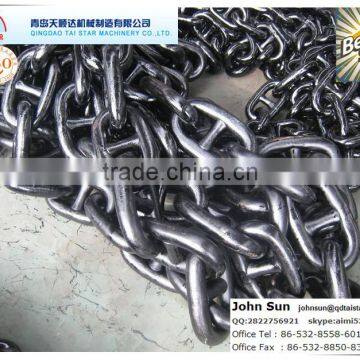

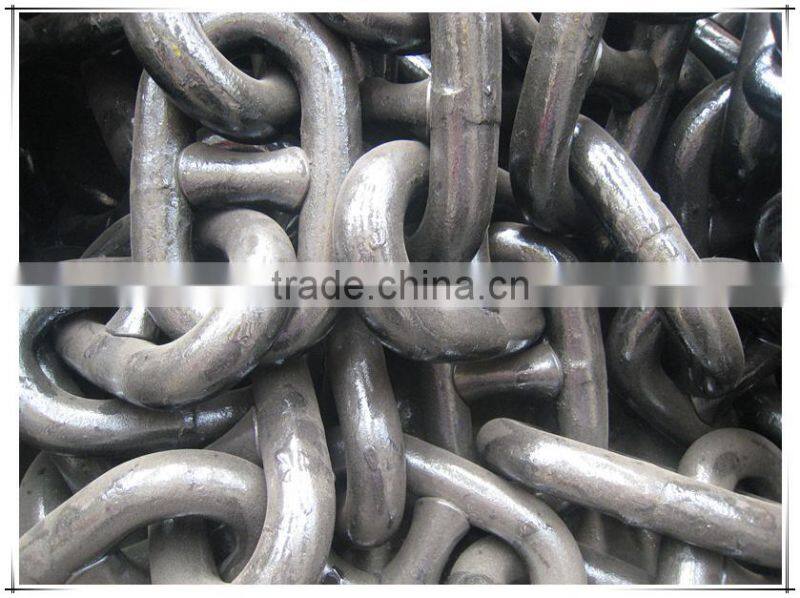

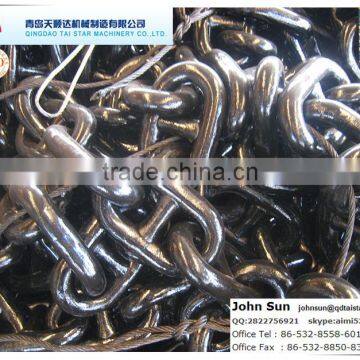

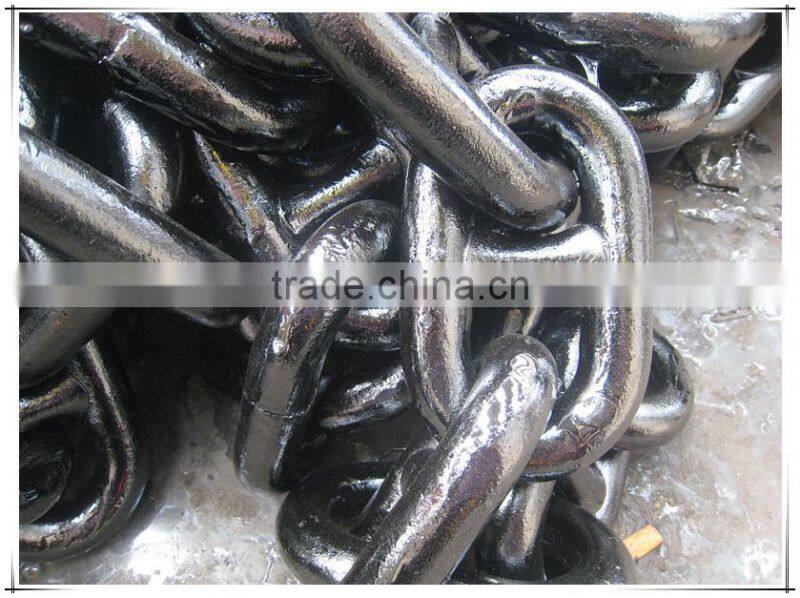

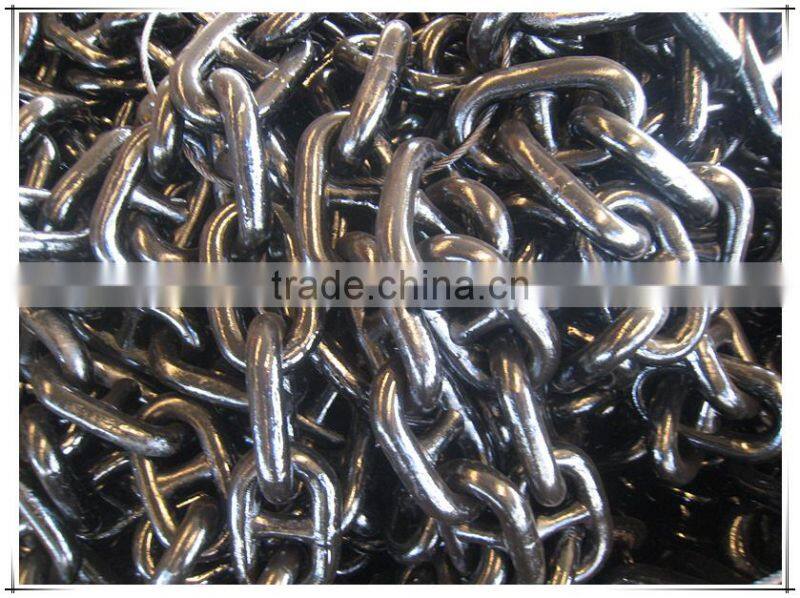

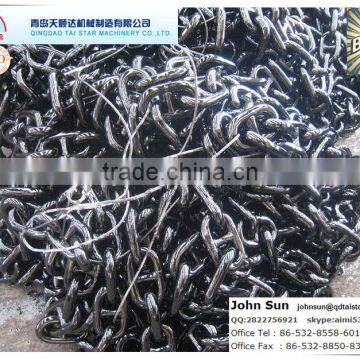

Cheap Used Anchor Chain

FOB Price

US$ 1 - 1,000 / Meter

10 Meters(Min. Order)

Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	QINGDAO TAI STAR MACHINERY CO .,LTD
Model Number	stud link chain	Structure	Welded Chain
Function	Other, Anchor chain	Material	Alloy
Standard or Nonstandard	Standard

Product Description

SURFACE:HOT DIP CALVANIZED OR ACCORDING TO CLIENT REQUEST

MATERIAL:(U1:CM370;U2:CM490;U3:CM690)

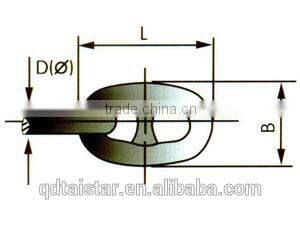

D(φ) DIAMETER		CHAIN LINK SIZE		AM1 U1 STUD LINK CHAIN		AM2 U2 STUD LINK CHAIN		AM3 U3 STUD LINK CHAIN		APPROX. WEIGHT
D(φ) DIAMETER		L OUTSIDE LENGTH	B OUTSIDE WIDTH	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	27.5M
INCH	MM	MM	MM	KN	KN	KN	KN	KN	KN	KG
1/2	12.5	75	45	46	66	66	92	92	132	98.00
9/16	14	84	50.4	58	82	82	116	116	165	119.00
5/8	16	96	57.6	76	107	107	150	150	216	156.00
11/16	17.5	105	63	89	127	127	179	179	256	186.00
3/4	19	114	68.4	105	150	150	211	211	301	230.00
13/16	20.5	123	73.8	123	175	175	244	244	349	260.00
7/8	22	132	79.2	140	200	200	280	280	401	300.00
15/16	24	144	86.4	167	237	237	332	332	476	370.00
1-1/16	26	156	93.6	194	278	278	389	389	556	431.00
1-1/8	28	168	100.8	225	321	321	449	449	642	496.00
1-3/16	30	180	108	257	368	368	514	514	735	564.00
1-1/4	32	192	115.2	291	417	417	583	583	833	635.00
1-5/16	34	204	122.4	328	468	468	655	655	937	712.00
1-7/16	36	216	129.6	366	523	523	732	732	1050	800.00
1-1/2	38	228	136.8	406	581	581	812	812	1160	887.00
1-9/16	40	240	144	448	640	640	896	896	1280	1032.00
1-5/8	42	252	151.2	492	703	703	981	981	1400	1084.00
1-3/4	44	264	158.4	538	769	769	1080	1080	1540	1197.00
1-13/16	46	276	165.6	585	837	837	1170	1170	1680	1310.00
1-7/8	48	288	172.8	635	908	908	1270	1270	1810	1438.00
2	50	300	180	686	981	981	1370	1370	1960	1546.00
2-1/16	52	312	187.2	739	1060	1060	1480	1480	2110	1661.00
2-1/8	54	324	194.4	794	1140	1140	1590	1590	2270	1791.00
2-3/16	56	336	201.6	851	1220	1220	1710	1710	2430	1926.00
2-5/16	58	348	208.8	909	1290	1290	1810	1810	2600	2086.00
2-3/8	60	360	216	969	1380	1380	1940	1940	2770	2249.00
2-7/16	62	372	223.2	1030	1470	1470	2060	2060	2940	2361.00
2-1/2	64	384	230.4	1100	1560	1560	2190	2190	3130	2516.00
2-9/16	66	396	237.6	1160	1660	1660	2310	2310	3300	2676.00
2-11/16	68	408	244.8	1230	1750	1750	2450	2450	3500	2885.00
2-3/4	70	420	252	1290	1840	1840	2580	2580	3690	3010.00

Accessories

ANCHOR	JIS STOCKLESS ANCHOR
	BALDT ANCHOR
	HALL ANCHOR
ANCHOR CHAIN	OPEN/STUDLESS LINK CHAIN
ANCHOR CHAIN	STUD LINK CHAIN
CHAIN	English standard link chain	English standard Short link chain
		English standard Medium link chain
		English standard Long link chain
	American standard link chain	American standard Proofcoil chain ASTM80(G30)
		American standard High test chain ASTM80(G43)
		American standard Transport chain ASTM80(G70)
		American standard Proofcoil chain NACM90(G30)
		American standard Proofcoil chain NACM96(G30)
	Germanic standard link chain	Germanic standard DIN763 link chain
		Germanic standard DIN764 link chain
		Germanic standard DIN766 link chain
		Germanic standard DIN5685 A/C link chain
	Australian standard link chain	Australian standard Short link chain
		Australian standard Medium link chain
		Australian standard Long link chain
	Russia standard link chain
	Dobber chain
	Hatch board chain
	Binding chain
	Lifting chain
	High tensility chain for mining
	High intensity chain
ANCHOR ACCESSORIES	Anchor shackle
	Joint shackle
	Kenter shackle
	Swivel
SHACKLE	European Type Anchor Shackle SH01
	European Type D Shape Shackle SH02
	US Type Shackle G210 G209 SH06/SH05
	US Type Shackle G2150 G2130 SH08/SH07
	JIS Type Shackle SH19
OTHER PRODUCTS	CHAIN TENSIONER
	TOWING RING/CHIN BRACKET
	BOLLARD
	U-ANCHOR
	EC-3ANCHOR

Packaging & Shipping

Company Information

Qingdao Tai Star Machinery Co.,Ltd.establish in 1996, is one of leading companies in China,specializing in producing anchor chain and chain.

Our compangy is located in Qingdao City,the area of our compang is about 40,000 square meters,and have fixed assets RMB90,000,000, our company have 200 employees,10 engineers and 30 professional technicians, factory yearly capacity is about 12,000 tons

We can manufacture Grade 1,Grade 2 and Grade 3 stud&studless anchor chain as well as various chain accessories. We can also manufacture English standard,American standard,German standard,and Russian standard chain,and high test chain,widely used in ship,mining,pulling,binding,lifting and so on,with diameter from 6mm to 70mm. Meanwhile,we can process special specification welded chain and chain assemblies according to sample or drawing of clients. Our products sell well at home and abroad,was favourably reviewed.

FAQ

1. Are you a factory or a trading company?

We are a factory manufacturing,established in 1996,is one of leading companies in China,specializing in producing anchor chain and chain.

Our company is located in Qingdao China. The area of our factory is about 40,000 square meters, and has fixed assets RMB 90,000,000,it also has 200 employees, factory yearly capacity is about 12, 000 tons.

2. How do you ensure quality?

We have strict self inspection mechanism, Third party inspection is accepted

Guaranteeing quality inspection of each product before assembly and packing.

3. Where are your customer?

After 20 years of development,our customers all over the world.Our products sell well at home and abroad,was favourably reviewed.

Contact way

How to order?

Order by FAX: You can print out a copy of your order and fax it anytime to us at +86 532 88508376
Order by TEL: our order line at +86 532 885586018 during regular business hours. Our regular business hours are typically 8:00 A.M. - 5:00 P.M. Beijing Standard Time.
Order by e-mail : send your order to us :
On Line Message :

Skype: aimi539 , QQ:2822756921 , WeChat:15865328520
Order face to face :Actual inspection to the factory:

NORTH INDUSTRIAL DISTRICT JIMO,QINGDAO CITY ,CHINA

Order Online: Using our on-line Function 24 hours per day, Send your inquiry details below:
