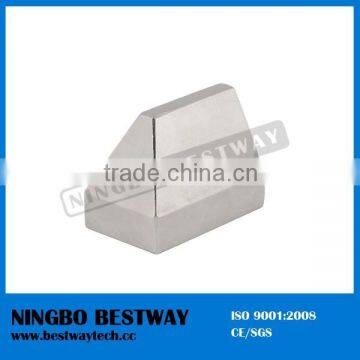

Irregular Neodymium Magnets

Specifications

Product Name: Irregular Neodymium Magnets

Applications: Irregular Neodymium Magnets are Widely used in different applications, such as sensors, motors, rotors, wind turbines/wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles and so on.

Material: NdFeB (Neodymium Iron Boron)

Shape:  Irregular shapes, Customized shapes for Sintered NdFeB  Magnet are also available

Tolerance in size: +/-0.1mm (+/-0.05mm available)

Type of coating: Nickel, Ni-Cu-Ni, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and so on.

Grade:  N35-N50; N33M-N50M; N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH are available

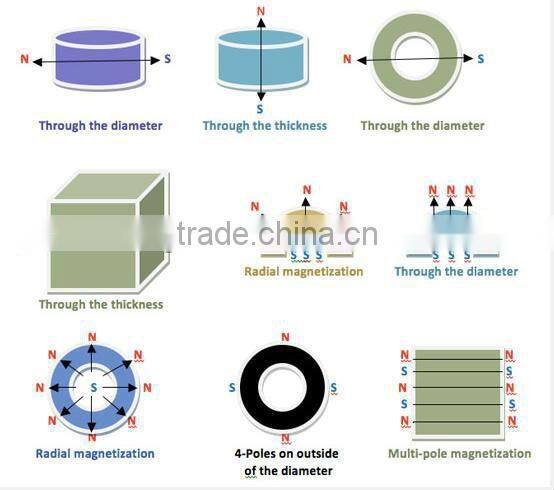

Direction  of magnetization: Through the thickness or through the diameter

Package:

Carton size: L35*27*14cm

Pallet size:73*83*84cm, 36CTNS/PLT

Magnetic properties: High coercive force, the max operation temp is up to 200 degree centigrade or 380 curie temperature

Free of harmful substances according to ROHS Directive 2002/95/EC

Exempt from registration according to REACH.

Magnetic characteristics of sintered NdFeB magnets as follows:

 In order to quote you the best price timely, please kindly provie the following information in your inquiry:

1) Product details: Shape&dimensions, grade, tolerances, coating, magnetization direction

2) Order quantity

3) Attached drawings if customized

4) Any special packing, delivering or other requirements

If you are not sure about any specifics of the product you need, please feel free to contact with us and we are more than happy to help.
