Product Details
| Place of Origin | Zhejiang, China | Brand Name | DOD | |
| Model Number | DLT-1203 | Application | Solar System Controller | |
| Rated Voltage | Other, 12V, 6V or 12V | Maximum Current | 3A |
Product Description
Specifications
hybrid solar charge controller with inverter1. 12/24v auto
2. time&light control
3. CE/ROHS
20a automatic 12v 24v 48v solar charge controller hybrid solar charge controller with inverter
Features and functions: hybrid solar charge controller with inverter
1) It adjusts the charging current according to the battery voltage, and decides whether supply current to the load.
2) Ensure the battery at a full-charged condition.
3) Protect battery to be over-charged.
4) Protect battery to be over-discharged.
5) Protect the battery reverse charge the solar panel during night.
Auto Protections : hybrid solar charge controller with inverter
Specification : hybrid solar charge controller with inverter
Rated voltage | 12V | Over-discharge cut-off | 11V |
Rated charging current | 3A | Ambient temp. | -10 ~ +40°C |
Rated load current | 3A | Operating humidity | below 90% |
Over-charge cut-off | 14.4V | Weight | 33g |
Temp. Compensation | -3mV/°C /cell | Dimension | 55*36*20mm |

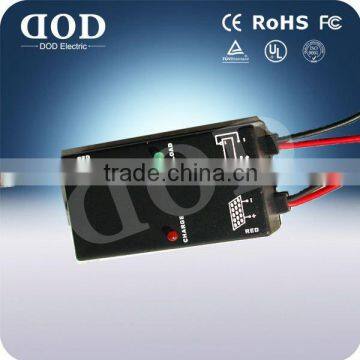

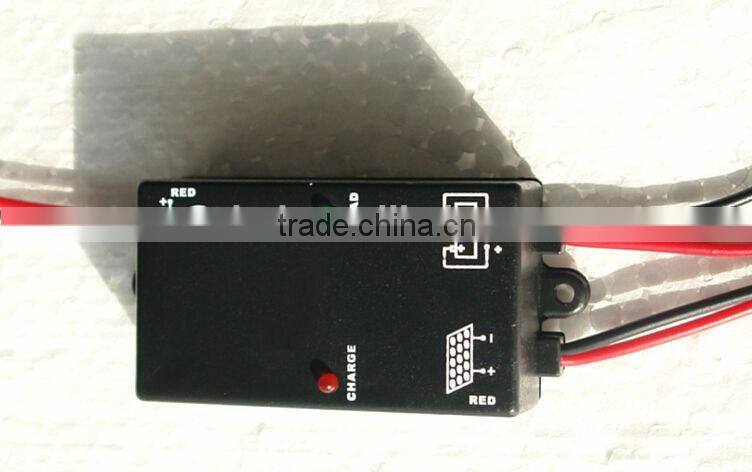

Product Display : 10A solar controller
Similiar Products : hybrid solar charge controller with inverter
Related Products : hybrid solar charge controller with inverter
Product Packing and Shipping : hybrid solar charge controller with inverter
Our Certificates : hybrid solar charge controller with inverter
Our Factory : hybrid solar charge controller with inverter
Our Tradeshow : hybrid solar charge controller with inverter
