Iso Standard Cattle Slaughterhouse Equipment

Cow and Bull Slaughter Line Design Halal Cattle Slaughter Line Machine Beef Production Line

       What's your Company Provide?

       What's your Company Photo?

       What's your Machine Advantage?

 -----------------------------------------------------------------------------------------------------------------------

100/day Cattles per day Slaughtering & Processing Equipment Inventory & Quotation

No.

Items

Model

Unit

Qty

Remarks

Cattle Slaughter Part

1

Leading Machine

QNJ-8

set

1

Hot galvanized steel; Length: 7.5m

2

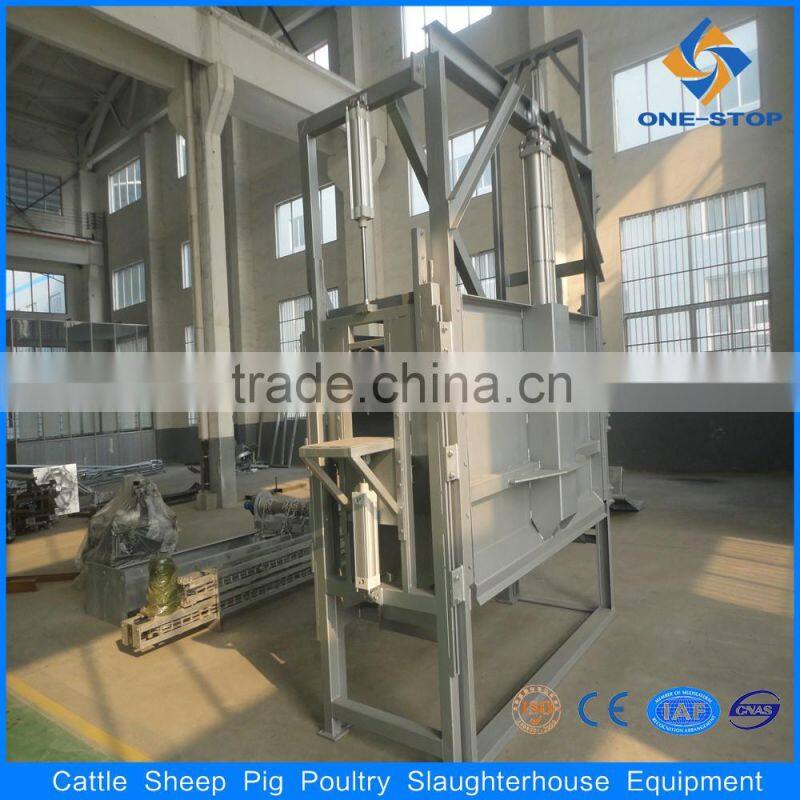

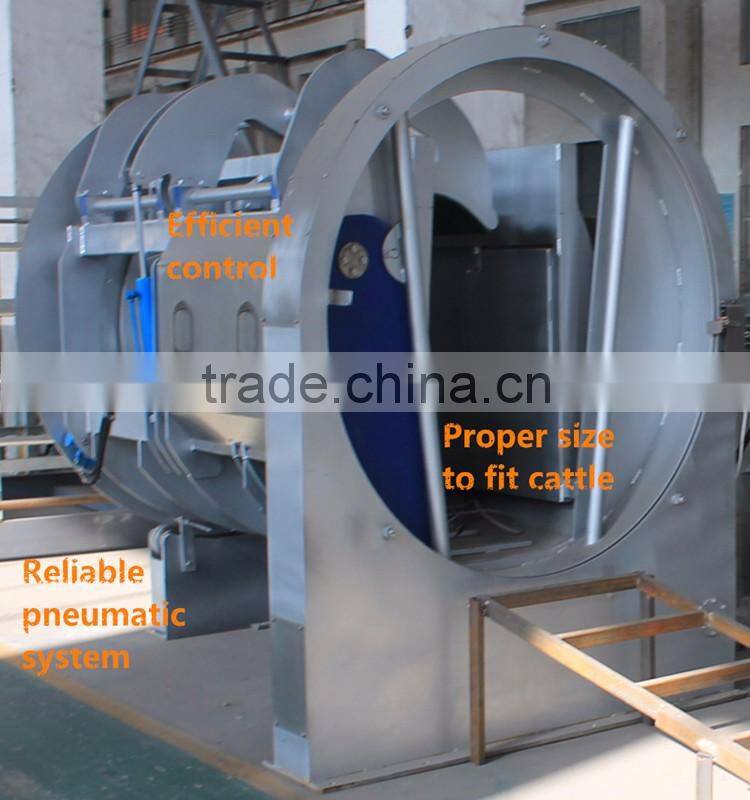

Pneumatic Slaughter Box(with head fixing device)

FBC-2500

set

1

Hot galvanized structure; Cylinders, pneumatic components are aluminum

3

Safty Fence

set

5

Hot galvanized steel

4

Gross Cattle Hanging Lift

2T

set

1

Lifting and hanging the live cattle in standard speed

5

Automatic Hanging Device

set

1

Safe and reliable

6

Manual Bleeding Conveying Line

GST-600

meter

15

Including rail beams, hangers, track, and connections between, all made of hot galvanized

7

Bleeding Shackle

L

10

Hot galvanized steel

8

Fixed Work Platform

ZT-2

set

1

Hot galvanized table rack; Platform Size: 4500 * 1500mm. Table can be fixed hand disinfection device

9

Rehanging Lift

1T

set

1

Standard speed hanging up

10

Trolley Hook for Tubular Rail

GLG-400

set

100

Hanging frame is made of high-strength Al-alloy to reduce the weight; Hook and trolley are made of stainless steel

11

Carcass Processing Conveyor

BS-2400

set

1

It is Steping type with hot galvanized frame, chain; Tubular Rail is hot galvanized; controlled automatically or manually; including process control systems; 2400mm gap each

12

Double-polar Pneumatic Lifting Work Platform

QSST-1600

set

2

Used for pre-dehiding, halving and   trimming; hot galvanized steel frame, stainless steel cover, surface and handrail, air cylinder and pneumatic elements are Al-alloy; Platform size: 1900*1000mm, made of acid-resistant material, hand washing and disinfection device can be fixed on it, ; Lift height: 400mm~2000mm

13

Hydraulic Dehiding Machine

CPJ-50

set

1

Hot galvanized steel frame and cover, SUS peeling roller; Hydraulic system, control system and hydraulic oil included

14

Leg Fixture Device

STJ-00

set

1

Hot galvanized steel, but SUS peeling chain

15

Single-polar Pneumatic Lifting Work Platform

DT-1600

set

2

Used with dehiding machine, hot galvanized steel frame, stainless steel cover, surface and handrail, air cylinder and pneumatic elements are Al-alloy; Platform surface is made of anti-slip plate; SUS: 304

16

Work Platform for White Viscera

BZT-02

set

1

Stainless steel; Platform size: 2000*900mm, Platform surface is made of anti-slip plate, hand washing and disinfection device can be fixed on it

17

Pneumatic Chute for White Viscera

BZC-02

set

1

Stainless steel; Reception chute:1200mm wide, leading chute: 750mm wide

18

Work Platform for Red Viscera

HZT-02

set

1

Stainless steel; Platform size: 2000*1300mm, Platform surface is made of antislip plate, handwashing and disinfection device can be fixed on it

19

Chute for offals

NC-2

set

2

Hot galvanized steel frame, Stainless steel chute surface

20

On-rail scale

400Kg

set

1

Used to weigh the halved carcass, with display scree and printer

21

Manual High pressure washing gun

pc

1

Stainless steel

22

Synchronous Quarantine System(16 trays)

TWJ-16

set

1

Including hot galvanized steel drive, tension,   auto-dumping device, slide frame, rail, 16Mn detachable chain and connections; SUS big and small trays, gap 1200mm

23

Tubular Rail

DG60*4

meter

35

Hot galvanized steel

24

90' degree bend for Tube Rail

R300*90.

pc

3

Hot galvanized steel

25

Tube Rail switch

1RG,2RG,1LG,2LG

set

2

Hot galvanized steel, includes food-grade stay cord, joints and connections

26

Tube Rail hanging bracket

H225

pc

59

Hot galvanized steel, includes connections

Cattle Carcass Acid Discharge Part

1

Tube Rail

DG60*4

meter

85

Hot galvanized steel

2

90' degree bend for Tube Rail

R300*90Degree

pc

8

Hot galvanized steel

3

Tube Rail switch

1RG,2RG,1LG,2LG

set

16

Hot galvanized steel, includes food-grade stay cord, joints and connections

4

Tube Rail hanging bracket

H225

pc

124

Hot galvanized steel, includes connections

5

Tube Rail Breaker

DGQ-1

set

4

Hot galvanized steel

Cattle Deboning & Cutting Part

1

Tube Rail

DG60*4

meter

65

Hot galvanized steel

2

90' Bend for Tube Rail

R300*90Degree

pc

3

Hot galvanized steel

3

Tube Rail switch

1RG,2RG,1LG,2LG

set

4

Hot galvanized steel, includes food-grade stay cord, joints and connections

4

Tube Rail hanging bracket

H225

pc

109

Hot galvanized steel, includes connections

5

Ramp type Descending machine for quartered carcass

PTJ-1

set

1

Hot galvanized steel

6

Lifter for quartered carcass

0.5T

set

1

Normal lifting speed

7

Cutting worktable

1200*700*800

set

12

Stainless steel frame, table surface is made from antislip plastic plate

8

Packing Worktable

1800*900*800

set

6

All stainless steel
