200 per Day Cattle Veal Buffalo Meat Slaughterhouse Plant Equipment

1.Slaughtering part

No

Name

Model

Unit

Qty

Remarks

1

Live Cattle Scale

1500Kg

Set

1

Systems contains stainless steel platform, box.

Equipped with a weighbridge with digital weighing display, with a printer.

Platform Size: 2500 × 900mm

2

Cattle Leading machine

QNJ-8

Set

1

L=8m, The frame and chains are hot galvanized steel structure.

3

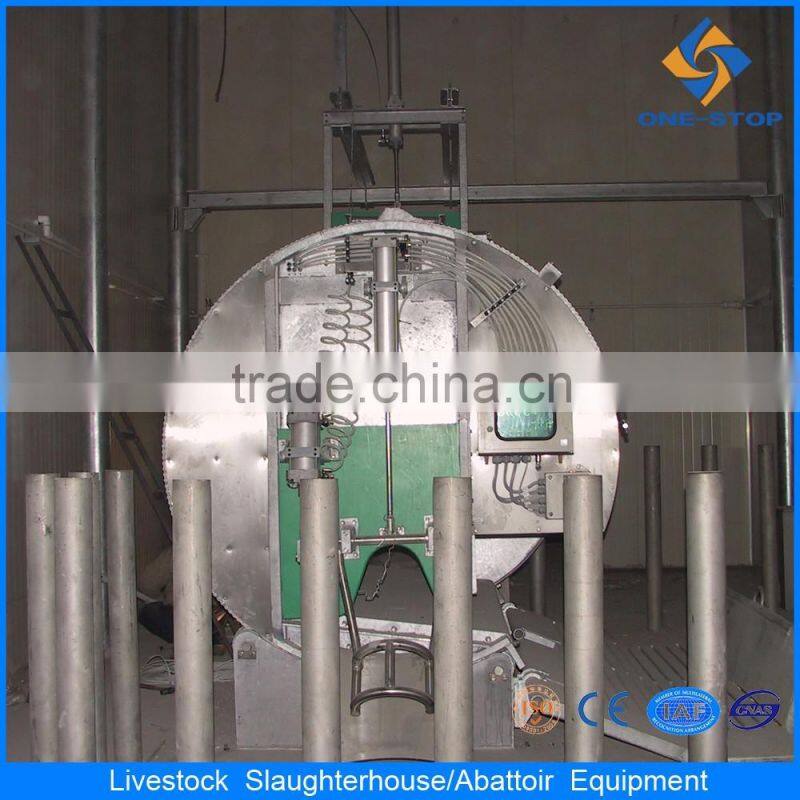

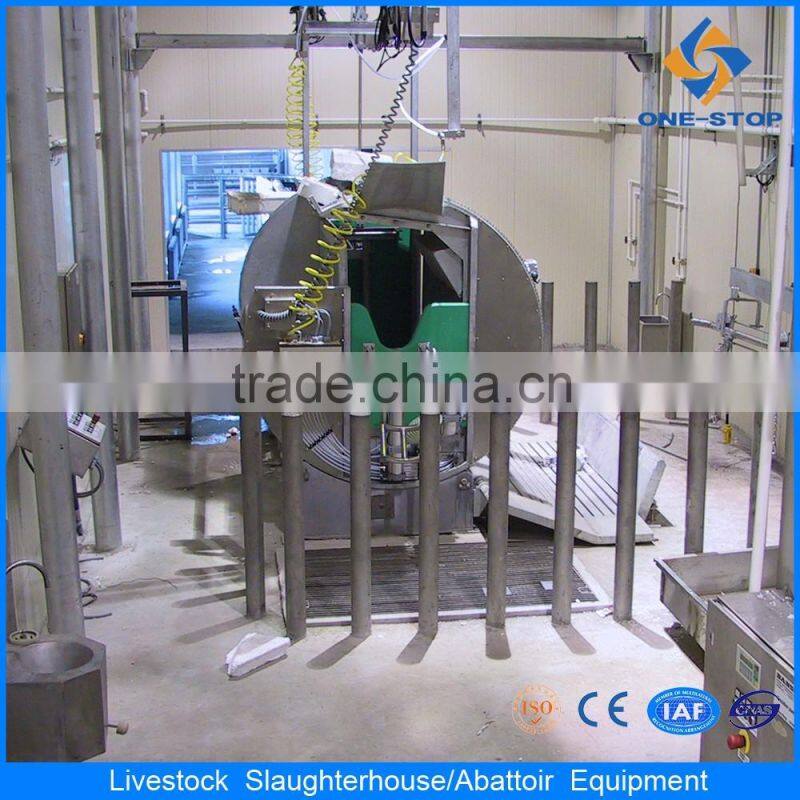

Pneumatic Rotary Box

QFX-2800

Set

1

Box for hot galvanized structure,

Flap is made of stainless steel.

Cylinders, pneumatic components for Al-alloy.

4

Cattle Hoist

2T

Set

1

Hang fast

5

Platform for Cattle Hanging

ZT-1

Set

1

Bench is hot galvanizing.

Platform ladders and handrails are stainless steel, platform surface made by plastic square grid .

Site Size: 1500 × 800 × 2700mm.

6

Cattle Blooding Line

MFX-160

M

38

Including rail, carriage, detachable chain and fittings, are hot galvanized structure;

Detachable Chain Material: 16Mn.

Equipped with stainless steel basket

7

Driven device

Set

1

Hot galvanized structure

8

Tension device

Set

1

Hot galvanized structure

9

Rotary device

Set

3

Hot galvanized structure

10

Cattle Buckle chain

KL-800

Pcs

50

304SUS

11

Platform for hind-leg pre-peeling

ZT-2

Set

1

Bench is hot galvanizing.

Platform ladders and handrails are stainless steel, platform surface made by plastic square grid .

Site Size:2000×800×1800mm

12

Platform for chest-open pre-peeling

ZT-3

Set

1

Bench is hot galvanizing.

Platform ladders and handrails are stainless steel, platform surface made by plastic square grid .

Site Size 2000×800×1300mm

13

Platform for front-leg pre-peeling

ZT-4

Set

1

Bench is hot galvanizing.

Platform ladders and handrails are stainless steel, platform surface made by plastic square grid .

Site Size 2000×800×600mm.

14

Cattle rail change hoist

1T

Set

1

Chain type, normal speed lifting

15

Platform for rail change

ZT-5

Set

1

Bench is hot galvanizing.

Platform ladders and handrails are stainless steel, platform surface made by plastic square grid .

Site Size:3000×800×2000mm.Hand disinfection devices and heels chutes, pipe-rail vehicles pulley hook slide  can be installed on countertop.

16

Chute for slide rail pulley hook truck

pcs

2

Hot dip galvanized structure, inner chute is made food hygiene standards nylon material.

17

Hind hoof chute

THC-400

Set

1

All SUS

18

Hoof transfer cart

200L

Pcs

2

SUS

19

Tube rail hook pulley

GLG-400

Pcs

400

Wheel frame is made of high-strength aluminum alloy to reduce weight, hooks and rollers made of stainless steel.

20

Tube rail hook pulley transfer cart

GC-1700

Pcs

2

Hot galvanized structure. Wheels for wear-resistant nylon wheels

21

Tube rail hook pulley lifting machine

1T

Set

1

To Lift the hooks on to best operation position, normal speed lifting, chain type.

22

7 step carcass process conveyor

DSJ-2400

Set

1

Hot dip galvanized frame, chain.

Stainless steel tube rails.

Automatic or manual control, including process control systems.

Pitch: 2400mm.

23

Pneumatic double-column lifts

SQT-1600

Set

3

for the pre-stripping, split half and trimming.

Bench is hot galvanized, countertops and handrails are stainless steel . Cylinders, pneumatic components for al-alloy.

Table Size: 1000 × 1000mm.

Countertop can be installed with hand-washing, disinfection devices.

Lifting height: 400 to 2000mm

24

Hydraulic hide puller

YCJ-5300

Set

1

Racks, enclosures for hot-dip zinc on its hind legs, stainless steel passing rollers. Including hydraulic system and process control system.

25

Front leg fixed frame

Set

1

Hot galvanized structure, SUS chains

26

Pneumatic single-column lifts

DQT-1600

Set

2

Work with hide puller, frame is Hot galvanized structure, countertops and handrails are stainless steel . Cylinders, pneumatic components for al-alloy. Countertops are made by antiskid plate.

27

White Viscera platform

ZT-6

Set

1

Bench galvanized.

Platform ladders and handrails of stainless steel, plastic grid station for countertops.

Site Size: 2000 × 900 × 1300mm.

Table can be mounted hand disinfection devices.

28

White Viscera receipt chute

HC-1

Set

1

Made by SUS, receipt part: chute width:1200mm, Introduction part: chute Width 750mm

29

Red Viscera platform

ZT-7

Set

1

Bench galvanized.

Platform ladders and handrails of stainless steel, plastic grid station for countertops.

Site Size: 2000 × 400 × 1300mm.

Table can be mounted hand disinfection devices.

30

Viscera chute

HC-1

Set

2

SUS

31

Split shield

FJP-3600

Set

1

Made by SUS, top connects with rail, bottom on ground.

32

Carcass scale

400Kg

Set

1

Weighing for split with screen and printer

33

Sick body descending machine

0.5T

Set

1

Normal speed lifting

34

Synchronize sanitation inspection(20trays)

TWJ-20

Unit

1

With driver, tensioner, two pneumatic turnaround device, carriage, rail, removable chain and fittings. Stainless large and small health inspection plate; large and small health inspection plate Pitch 1200mm

35

Tube rail pushing line

DG60×4

M

50

Hot dip galvanized steel beams secondary ,16 # channel steel;

Hot dip galvanized hangers and connectors; Stainless steel pipe rail

36

90°Rail curve

R300×90°

Pcs

4

SUS

37

Rail switch

1RG,2RG,1LG,2LG

Set

4

SUS, Ropes, joints, connects are food hygienic standard

Sub

USD116565.00

2. Chilling meat part

1

Tube rail pushing line

DG60×4

m

150

Hot galvanized steel beams secondary ,16 # channel steel;

Hot dip galvanized hangers and connectors; Stainless steel pipe rail

2

90.Rail curve

R300×90°

Pcs

8

Hot galvanized steel

3

Rail switch

1RG,2RG,1LG,2LG

Set

32

Hot galvanized steel, Ropes, joints, connects are food hygienic standard

4

Rail disconnecting apparatus

DGQ-1

Set

8

Hot galvanized with joints

Sub

USD13996.00

3.Deboning and Dividing

1

Tube rail pushing line

DG60×4

M

82

Hot galvanized steel beams secondary ,16 # channel steel;

Hot dip galvanized hangers and connectors; Stainless steel pipe rail

2

90° Rail curve

R300×90°

Pcs

5

SUS

3

Rail switch

1RG,2RG,1LG,2LG

Unit

8

SUS, Ropes, joints, connects are food hygienic standard

4

Slope quartet dropping machine

PXJ-1

Set

1

Hot galvanized frame, SUS Tube rail

5

Quartet lifter

PTJ-1

Set

1

Hot galvanized frame, SUS Tube rail

6

Single layer dividing conveyor

DFS-15

Set

1

Rack, electric rollers and idlers are made of stainless steel, white food conveyor belt.L=15m.

7

Double sorting table

1200×700×800

Set

18

.Rack for SUS, countertop is ant-slide plastic board

8

Rotary Sorting table

Dia.1600×630

Set

1

SUS rotary table, countertop is ant-slide plastic board

9

Package table

1800×900×800

Set

4

All SUS.

Sub

USD32415.00

4. Sanitation/disinfection equipment and others

1

Hand-washing device with tool sterilizer

DJX-1

Set

8

Stainless steel, tool sterilizer with a plastic tool holder, overflow pipes, manual valves. Hand-washing device with stainless steel splash plate, anti-pipes and foot switch valve.

2

Chest-open saw disinfection device

Pcs

1

SUS

3

Half split saw disinfection device

Pcs

1

SUS

4

Quartet saw disinfection device

Pcs

1

SUS

5

Apron washer

Pcs

4

Used for the procedure of killing,head cutting,red and white viscera taken. SUS made. Feed paddle control and spraying nozzle.

6

Manual Sprayer

Pcs

4

SUS

7

Tripe washer

XND-50

Set

1

SUS made, power-shift gear box.

8

Air compressor

3m3/min

Set

1

5. Installation Materials: main beams, pillars, hang materials and so on. Total 38T,USD1138/MT FOB Qingdao, total USD43244.00 For these material, you can source at your local, and then we give the drawings.

6.Installation cost: 4workers of 45days, including the round air tickets, salary and accommodation, Total USD13000.00
