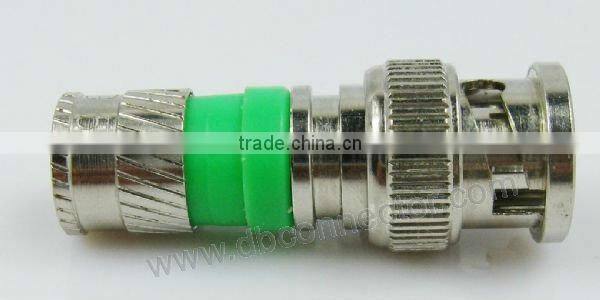

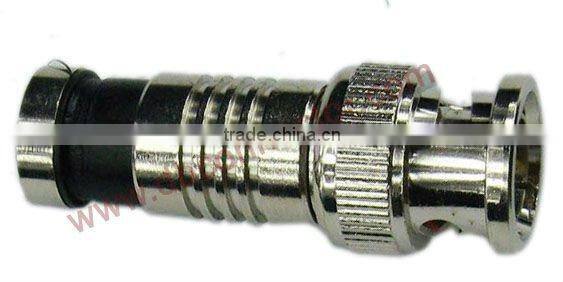

rg 59 Rg6 BNC Male to F Female Adapter rf Connectors and Adapters

Specifications

  BNC Male to F Female Adapter  rf connectors and adapters

Specifications:

1. BNC RF Connector
2. Saye  BNC Connector
3. BNC male to RCA female Adapter Connector
4. Impedance:75ohm,50ohm.
5. Frequency Range:0-4G.
6. Working Voltage:500 VRMS.
7. VSWR:straight:1.3max,R/A:1.5max.
8. Insulation Resistance:5000min.
9. Contact Resistance:Inner:3 miliohms max,Outer:2 miliohms max.
10. Durability:500Cycles min.
11. BNC Connector are bayonet coupling style. Impedance is 50 ohm and 75 ohm.They widely apply to AV and telecommunication.
12. Saye BNC product line is a miniature quick connect/disconnect RF connector. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut.
13. We have many types connector for your choosing, if you have any query please fell free to contact me, I am glad service for you.
    We have professional team to service for you, please tell me your detail information then I will offer you the right products you need.
    We do long term business, we offer every client the best products with economical price.

Packing Details:.

• 100pcs/pack, Net weight: 1kg

• 10packs/carton,Net weight:10kg,

• Gross Weight: 11kg.Carton size: 48*50*54cm.

 -----------------------------------------------------------------------------------------

· wide operating band - up to 3 GHz,

· waterproof termination of the cable,

· resistance to corrosion - made of non-ferrous metals and highest-quality dielectric,

· very low loss in the whole operating band,

· perfect matching to the transmission line within the whole operating band,

· simple and quick assembly: longitudinal compression,

·· monolithic construction,

· quick and easy assembly, as well as stability of operation of the equipment are really worth the price.
