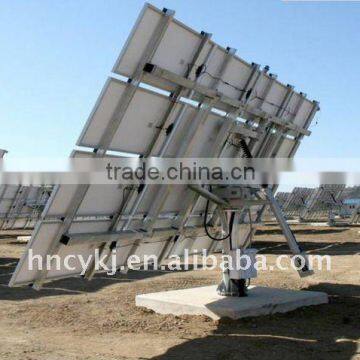

dual axis solar tracker

Place of Origin	Zhejiang, China		Brand Name	Chuangyuan
Model Number	2 axis		Specification	Normal
Application	Industrial		Output Voltage (V)	240V
Load Power (W)	standard		Solar Power (W)	standard
Work Time (h)	24hours per day

Specifications

double axis tracking system bracket
Controlling & Communication:
Each system can control 6 trackers maximum

double axis tracking system bracket

Advantage:
1. Universal application
350 tracker is DC motor for driving linear actuator, it can be used for both on-grid and off-grid application
2. Over 30% increase on radiation reception from sun
Comparing with fixed installation, with 350 single axis tracker over 25%~30% increase on relation reception from sun will be gained.
3. Higher power installation with less occupied area
Unique pre-tilt single axis tracking structure design ensures land saving for both small scale and large PV plant. The installation peak power can be more than 10% higher than traditional single axis tracker.
4. Weather resistant
PLC drives PV modules following sun’s trajectory predicted based on Solar Position Arithmetic instead of light sensor so that cloudy weather will not impact on its tracking. And the tracker’s structure design can make the array move to horizontal protection position under the condition of huge wind via anemometer.
5. Lower Maintenance
Detailed environmental test including climatic test, mechanical test and electrical test ensures long life operation under harsh condition. And the special design of driving parts makes whole system work well without maintenance for long time, which promise very lower maintenance cost. Due to lower assembly position of driving parts, the replacement of driving parts is very easy.
Standard 10 years guarantee is presented.
