India Roller Conveyor
- Tianjin/Qingdao/Shanghai/Alataw Pass
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Slat Conveyor | |
| Material | Stainless Steel | Material Feature | Heat Resistant | |
| Structure | Belt Conveyor | Load Capacity | 41~2996t/h | |
| Place of Origin | Henan, China | Brand Name | Henan Joinrise | |
| Model Number | Coal mining TD75 type belt conveyor | Voltage | 220/380/660/1140/6000V | |
| Power(W) | 2.2 ~ 4000 kw | Dimension(L*W*H) | customization | |
| Certification | ISO certificates | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
conveyor belt
Conveyor belt with variety model and color provided by
honest supplier
Henan Joinrise Mining Equipment Manufacture Co., Ltd.
Scope of application:
long distance port/mine/stone/ steel rubber roller belt conveyor machine system

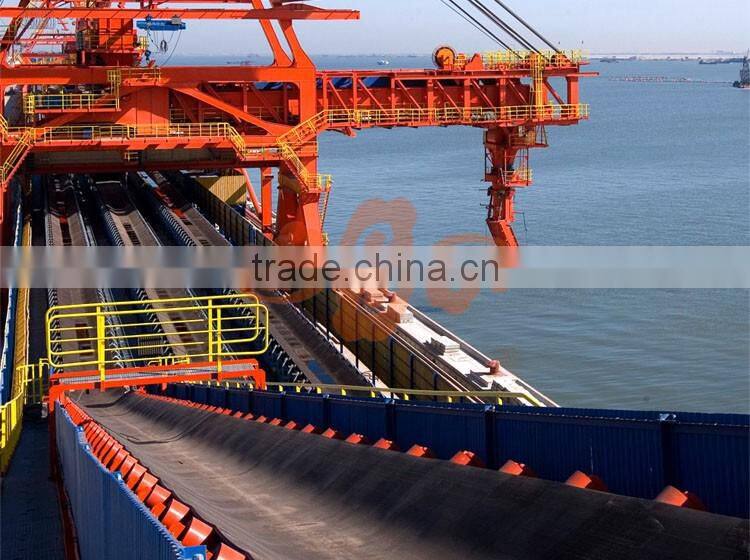

Belt conveyor can be used as transportation facility for bulk material and finished goods in such industries as coal, metallurgical, chemical, hydroelectric, cement, coking plant and port industries. Its working temperature ranges from -10 to +50 Celsius degrees.
Conveyor belt description
The actuator and unloading device both adopt detachable triangular or trapezoidal support, while the roller generally uses the high-intensity cast welding structure. The drive device mainly adopts frequency conversion soft start. Four to five carrier rollers are installed on each group of beams and steel cord belt with or without different patterns are used. This type of belt conveyor is installed with Safety protection device.
Methods of installation include horizontal, slanting, convex arc curve, concave arc curve as well as the concave-convex arc curve installation.
Belt conveyors or conveyor technical features:
Bandwidth: 500 mm to 1400 mm
Tape speed: 0.3 ~ 4 m/s
Capacity: 41 ~ 2996 t/h
Electric power: 1 ~ 80 kw
Parameters of steel rubber roller belt conveyor machine system
| TD 75 | DTII(IIA) | Underground | Stretchable | Inclined | Suspended | |
| type | DTL | DTL | DTC | DSJ | DTG | |
| belt width (mm) | 500-1400 | 500-2000 | 650-1600 | 650-1600 | 800-1600 | 650-1200 |
| length (m) | 50-3000 | 50-3000 | 50-3000 | 50-3000 | <1000 | |
| belt speed (m/s) | 0.3-4 or customized | 0.8-5 or customized | depends | depends | depends | depends |
| capacity (t/h) | 41-2996 | 69-4130 | depends | depends | <700 | 200-1200 |
| angle ° | 0 | 0 | depends | 0 | 20-32.5 | <15 |
| voltage (V) | 220-6000 | 220-6000 | 220-6000 | 220-6000 | 220-6000 | 220-6000 |
| power (KW) | 1-180 or customized | 2.2-315 or customized | depends | 22-3*560 or customized | 160-2*450 or customized | 22-2*160 or customized |
| motor and reducer | ABB/SEW/SIEMENS | ABB/SEW/SIEMENS | ABB/SEW/SIEMENS | ABB/SEW/SIEMENS | ABB/SEW/ SIEMENS | ABB/SEW/SIEMENS |
| demension | customized | customized | customized | customized | customized | customized |
| material | Stainless/carbon steel | Stainless/carbon steel | Stainless/carbon steel | Stainless/carbon steel | Stainless/carbon steel | Stainless/carbon steel |
| certification | ISO | ISO | ISO | ISO | ISO | ISO |
| colour | apple green customized | apple green customized | apple green customized | apple green customized | apple green customized | apple green customized |
| emergency stop system | include | include | include | include | include | include |
| belt type | Phoenix / Goodyear | Phoenix / Goodyear | Phoenix / Goodyear | Phoenix / Goodyear | Phoenix / Goodyear | Phoenix / Goodyear |
| filter belt centreing device | include | include | include | include | include | include |
| cleaner | rubber, alloy | rubber, alloy | rubber, alloy | rubber, alloy | rubber, alloy | rubber, alloy |

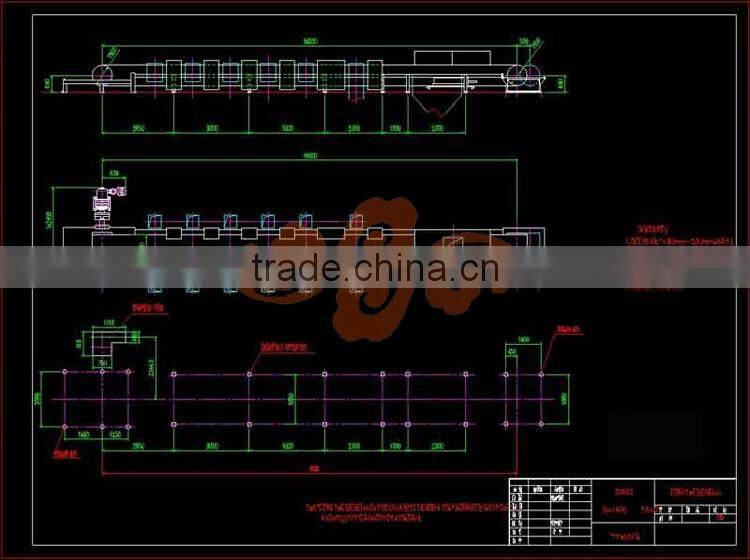

The steel rubber roller belt conveyor machine system design drawing

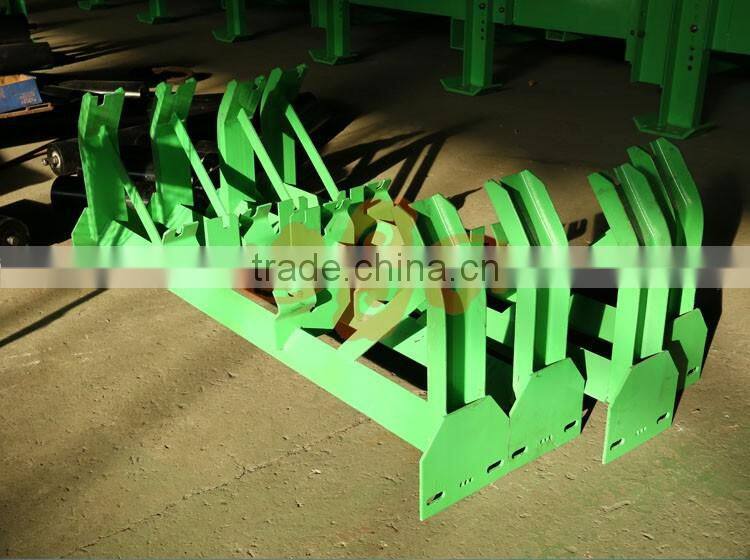

The intermediate frame is part of belt conveyor, used for installing cross beam of idler and the entire idler. Generally it's made by box iron or angle steel, it is fixed together with the frame .Specification of box steel and angle steel will be changed when the belt is changed.

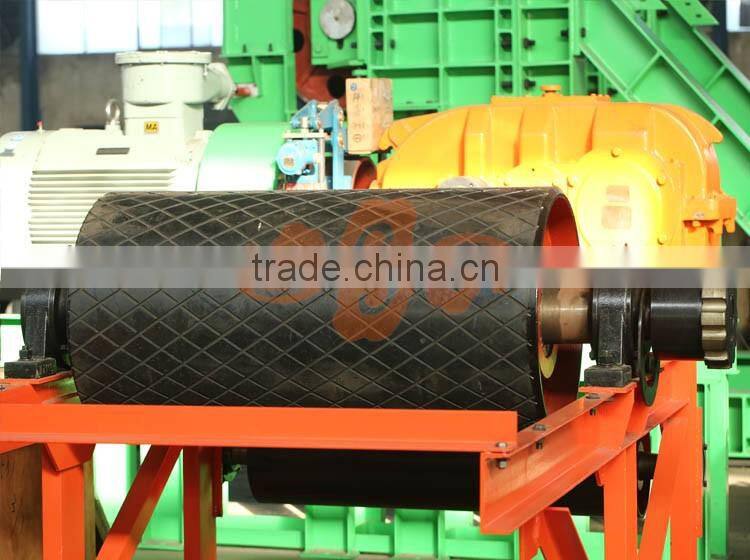

Transmission drum
Transmission drum,shaped like a cylindrical canister,is the most important component of belt conveyor.Linked with the actuating device,transmission drum is used to transmit power of conveyor.Watt level depents on the friction coefficient and wrap angle between the surface of transmission drum and conveyor belt.Transmission drum mainly consists of coiling block, axle, bearing and bearing pedestal.Generally, patterns of rhombus and herringbone are added to the surface of transmission drum casted with rubber for the purpose of increasing friction and discharging adhesive material.Transmission drum is linked with axle by chain or taper-lock.The material of the surface of transmission drum is polyurethane rubber or ceramics.Coiling block of transmission drum of heavy type uses cast-weld structure.
1. What is the business of your company?
Henan Joinrise is specializing in designing and manufacturing of conveyor roller, conveyor pulley, conveyor idler, conveyor idler bracket. Our company has dedicated to the industry over 50 years.
2. What is the advantage of Joinrise compared to other suppliers?
Since the manufacturing team all possesses years of experience, Joinrise can provide conveyors and accessories with competitive price and superior service. We have professional sales team, production team, researching team.
3. What is the price policy of your company?
In our company, the price is different according to the quantity of your order, the more the cheaper. For more detailed information, you can contact our customer service representatives.
4. What are the features of the services your company offered?
Based on the wide product range, we offer the best One-Stop sourcing service and all-around after-sales service . We will definitely save you a lot of time and money. It will improve your efficiency significantly and be more economical.
5. What is the payment of your company?
Joinrise accepts the payment of T/T and L/C, 30%T/T in advance, 40% after shipment, the balance D/P,everything can be further discussed.
