SLITTING CUTTER MACHINE LINE

Specifications

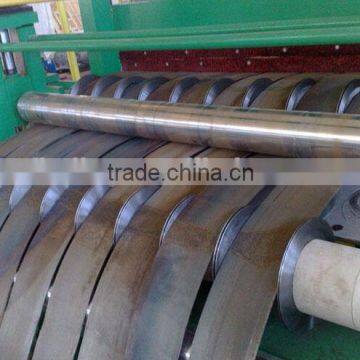

fully automatic high precision steel coil slitting line

This line is used for coil with different specifications,through uncoiling-slitting-recoiling to needed width coil for the application of all kinds of stamping line.This line is reasonable in layout,easy operation,high level of automation,high productivity which could processing all kinds of CR and HR coil,silicon,stainless coil,colored coil,aluminum coil,galvanized coil or painted coil.

This line is broadly applying in metal plate processing industry,like car,container,household,appliance,packing,construction material,etc.

This line is composed of coil car,uncoiler,slitter,scrap,winder,shearer cutting coil head or tail,tension pad recoiler,etc.as well as pendulum middle bridge,pinch device,steering device.

This line is an auto coil processing equipment which integrate mechanical,electrical,hydraulic,pneumatic all together.

Main technical parameter:

Model                                        2x1300          2x1600                3x1300                          3x1600

Coil thickness(mm)               0.3-2              0.3-2                   0.5-3                                0.5-3

Coil width(mm)                      600-1300        600-1600          600-1300                       600-1600

Slitting strips                          2-30                2-30                    2-15                                  2-15

Strip width precision(mm)   ±0.1                ±0.1                    ±0.15                                ±0.15

Line speed(mm)                  10-120             10-120              10-120                             10-120

Coil weight(T)                       10                    15                        20                                      30

Coil I.D.(mm)                          Φ508               Φ508                Φ508  Φ610                      Φ508  Φ610

Recoiling I.D.(mm)                Φ508               Φ508                Φ508                                  Φ610

Main shaft Dia                        205                  240                   240                                    240
