Corrugated Steel Roof Plate Roll and Beveling Marking Machine
US$ 20,000 - 30,000
/ Set
1 Set(Min. Order)
- Ningbo / Shanghai
- T/T L/C D/P D/A
You May Like
-
Galvanized Steel Roof Tile Plate Roll Forming Machine
-
Steel Arch Rolling Bending /rolling / Marking Machine Machine With CE Certification
-
Hydraulic Double Layer Automatical Color Metal Steel Roof Step Panel Cold Roll Forming Marking Machine With ce Certification
-
Metal Standing Seam Roofing Panel Sheet Roll Forming Machine
-
Good Quality Double Layer 1024 Width Roof Tile Panel Cold Roll Forming Machine With ce Certification
-
Automatic Double Layer Prepainted Steel 1024 / 988 Width Corrugated Roof Tile Cold Roll Forming Machine With ce Certification
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 20 m / min | Place of Origin | Zhejiang, China | |
| Brand Name | Finding or OEM | Model Number | FD-roof forming machine | |
| Power(W) | 5.5 kw | Voltage | 380 v | |
| Dimension(L*W*H) | 10*1.5*1.5 m | Weight | 8 tons | |
| Certification | CE | Warranty | 1 years, 1 year and provide the technical support for the whole life. | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Good qualityComprehensive sevice
Good price
CE certificate
20 years experience
Standard Equipment of Machine : | |
uncoiler | 1 set |
Guiding Equipment | 1 set |
Roll Forming Equipment | 1 set |
Post Cut Equipment | 1 set |
Hydraulic Station | 1 pc |
PLC Control | 1 pc |
Supporter Table | 2 pc |
The Technical parameters: | |
Suitable raw material: | Color steel sheet; Galvanized steel sheet |
Thickness of the material: | 0.4m to 0.7mm |
Yield strength of material: | 235Mpa |
Uncoiler' s loading capacity: | Max. Capacity: 5000Kgs. (can be increased to be 10 tons) |
Forming speed: | About 15-20m/min |
Main motor power: | 5.5Kw(Depend on final design) |
Hydraulic station power: | 5.2Kw(Depend on final design) |
Controling System: | Mitsubishi PLC & converter |
Votage: | 380V, 3 phase 60Hz or according to at buyer' s requirment. |
The quantity of the roller group: | At lest 15 groups(depend on final design) |
Machine dimension: | About 18m*1.5m*1.4m(depend on final design) |
Total weight: | About 10000kgs(depend on final design) |
Our advantages :
| our machine | other company 's machine | Influence of the machine |
| Machine's base | High strength H350 / H400 steel. machine through milling macine after welding. | H270 steel mark, after welding use manual polish. | keep base in the same horizontal line, ensure product standard. |
| roller material | High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated | normal No. 20 steel with Simple polished and have no coating | Roller will have longer use life and ensure the products have same size, no nick on the surface. |
| side wall | use high strength16mm thickness steel panel mark | use 12 mm thickness steel panel mark | ensure machine harder to deform, keep the product accurate and stable |
| Active shaft material | High grade solid No.45 carbon steel, Shaft diameter is 72mm. surface CNC polish treatment. | normal No. 45 steel with no surface treatment | improve the integrated mechanic feature of the shaft. and ensure the shaft stability keep product standard. |
| Electrical elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China | all the elements are made in china | machine become more accurate and more stable |
| cutter blade | Cr12 mould steel with quenched treatment | normal high strength steel without quenched treatment | stable the integrated mechanic feature of the cutter blade, harder to deform, longer blade's life, ensure product standard. |
Design ability:
We have more than 20 years experience,
We have a group of professional engineers,
We have a lot of customer's feedback data,
We can design the machine and product according to your request.

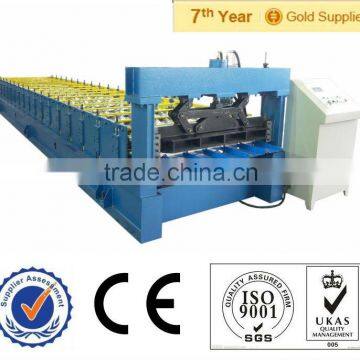

Machine 's photo:
Machine installation picture:
Product 's sample:
Factory photo:
Showroom photo:
PlC control panel :
- Container photo:
Customer photo :
If you have interesting please do not hesitate to contact me.
