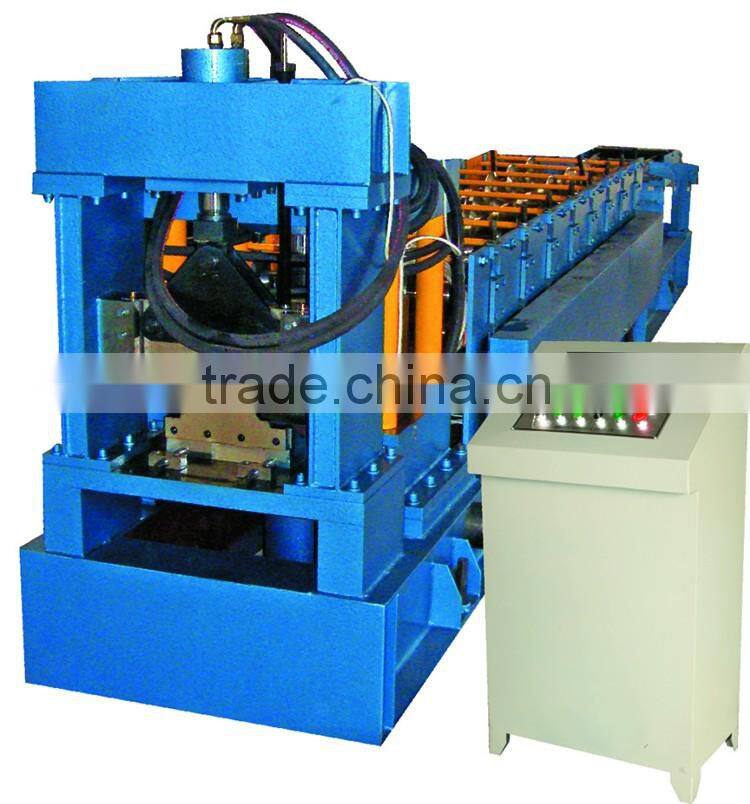

roof tile forming machine, roof tile metal rolling machine, sheet corrugated roll forming machine
- Ningbo / Shanghai
- T/T L/C D/P D/A
You May Like
-
lightweight concrete colour painted steel wall panel roll forming machine
-
lightweight concrete arched steel roof and wall panel roll forming machine
-
plastic roofing and wall angle panel roll forming machine
-
steel metal wall plate panel roll forming making machine
-
roof &wall tile cladding board panel forming machine
-
roof &wall tile board panel cold roll forming forming machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 20 m / min | Place of Origin | Zhejiang, China | |
| Brand Name | Finding or OEM | Model Number | FDYX25-205-1025 | |
| Power(W) | 5.5 kw | Voltage | 380 v | |
| Dimension(L*W*H) | 10*1.3.1.5 m | Weight | 10 tons | |
| Certification | CE | Warranty | 2 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
roof tile forming machine, roof tile metal rolling machine, sheet corrugated roll forming machine
We are a professional manufacturer and exporter of Steel Roll Forming Machine, and corrugated steel sheet, sandwich panel and steel coils in Hangzhou with convinent transportantion: about 10 kms away from Hanzhou International Airport,180km away from Shanghai and Ningbo port.
Our workshop covers more than 10,000 square meters and about 150 technical staffs work in our factory. We have rich technical force,high-level managerial team, advanced production facilities, strong production capacity and strict quality control system.
What we value is reputation and service, what we sell is quality and technology.
If you have interesting please do not hesitate to contact me.
Manager: Frankie Wu
TEL: 86-571-82809226/82809225
MOB: 86-15990056206/86-13067761708
FAX: 86-571-82809227
Skype: shuixing411
Standard Equipment of Machine:
| Uncoiler | 1 set |
| Guiding Equipment | 1 set |
| Roll Forming Equipment | 1 set |
| Post Cut Equipment | 1 set |
| Hydraulic Station | 1 pc |
| PLC Control | 1 pc |
| Supporter Table | 2 pc |

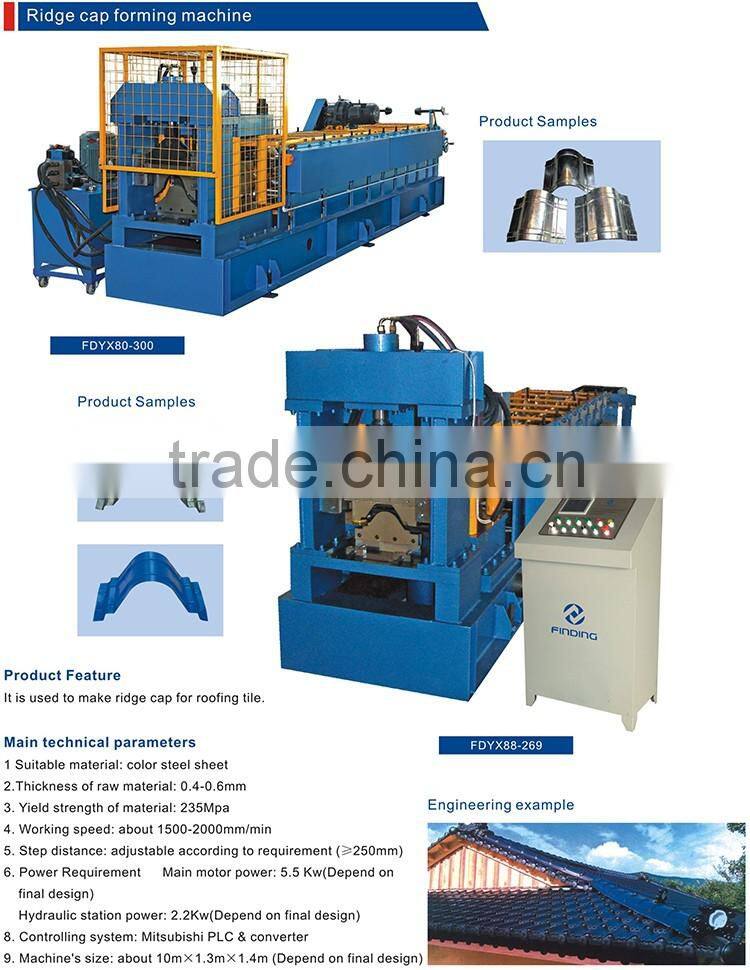

The Technical Parameters:
| Suitable raw material | Color steel sheet; Galvanized steel sheet |
| Thickness of the material | 0.8m to 1.2mm |
| Yield strength of material | 235Mpa |
| Uncoiler' s loading capacity | Max. Capacity: 5000Kgs. (can be increased to be 10 tons) |
| Forming speed | About 15-20m/min |
| Main motor power | 18Kw(Depend on final design) |
| Hydraulic station power | 5.2Kw(Depend on final design) |
| Controling System | Mitsubishi PLC & converter |
| Votage | 380V, 3 phase 60Hz or according to at buyer' s requirment |
| Quantity of the roller group | At lest 15 groups(depend on final design) |
| Machine dimension | About 18m*1.5m*1.4m(depend on final design) |
| Total weight | About 10000kgs(depend on final design) |

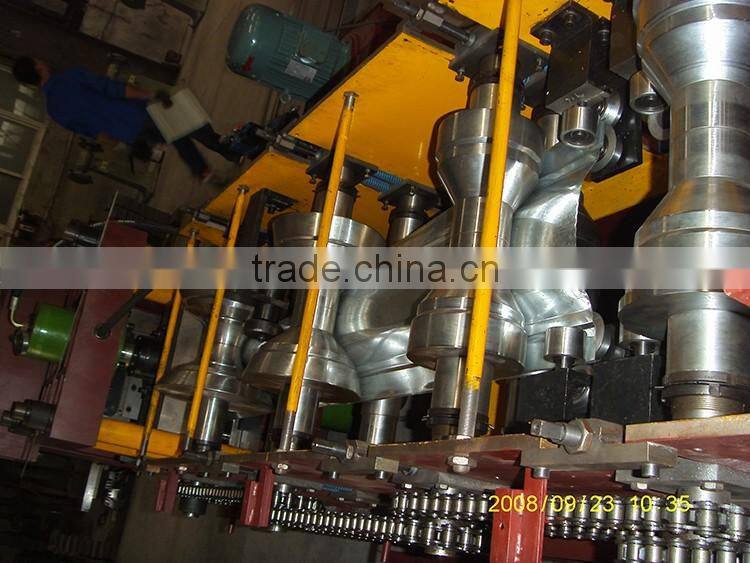

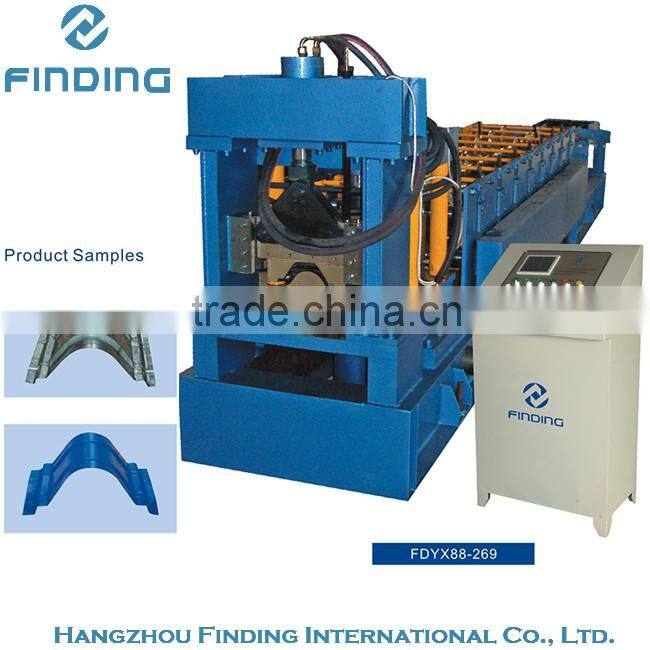

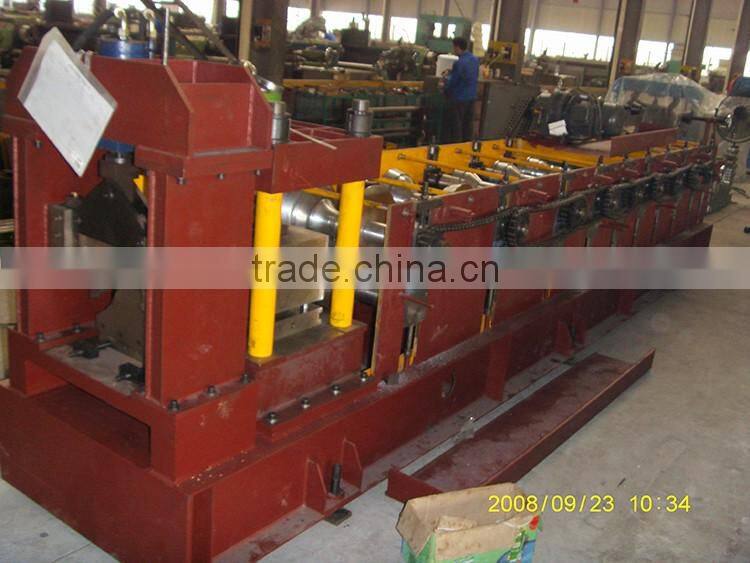

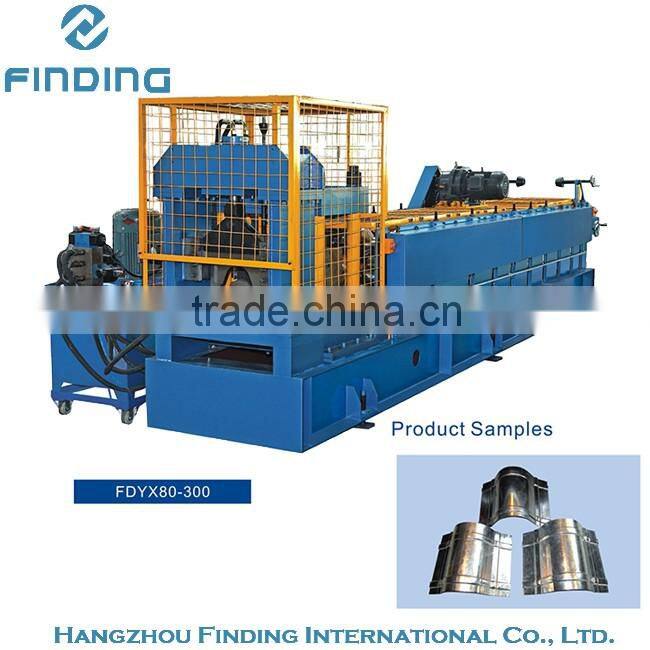

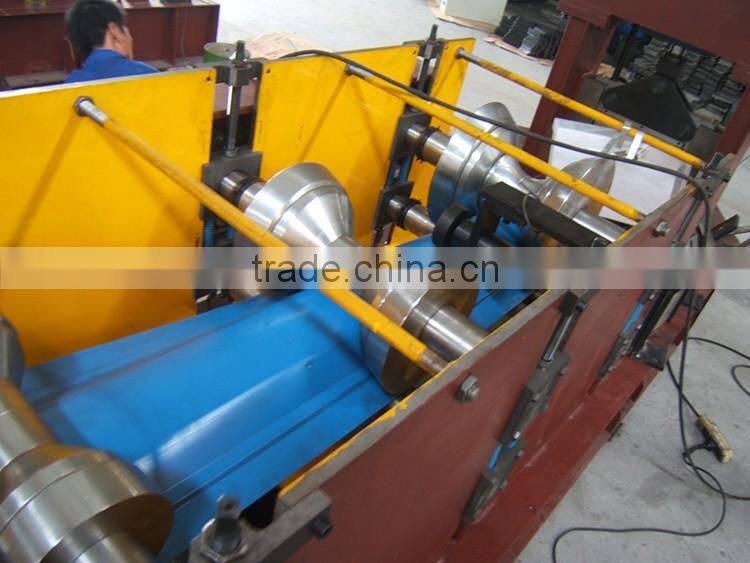

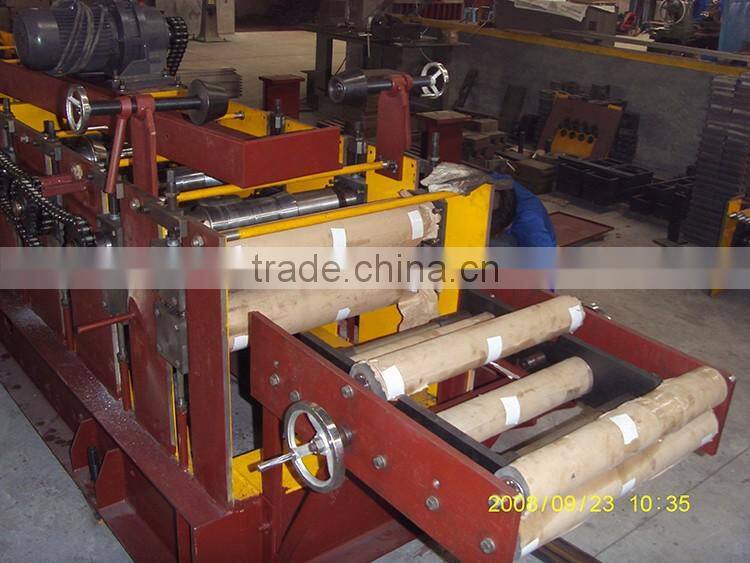

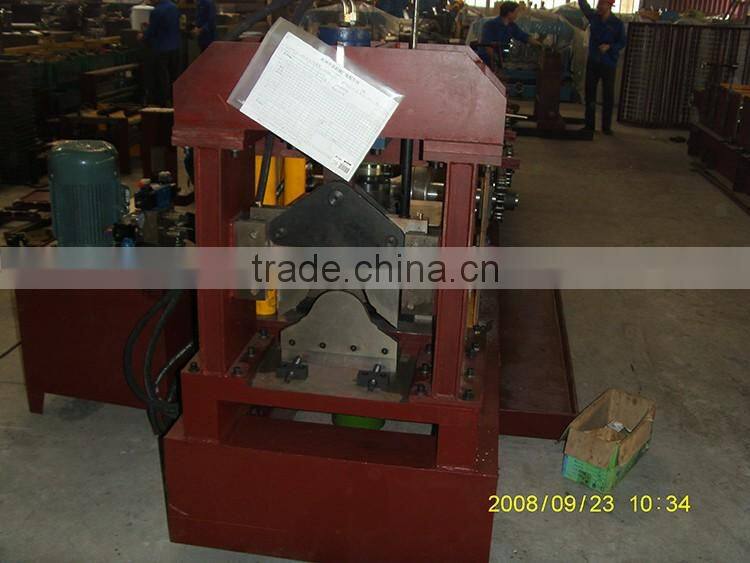

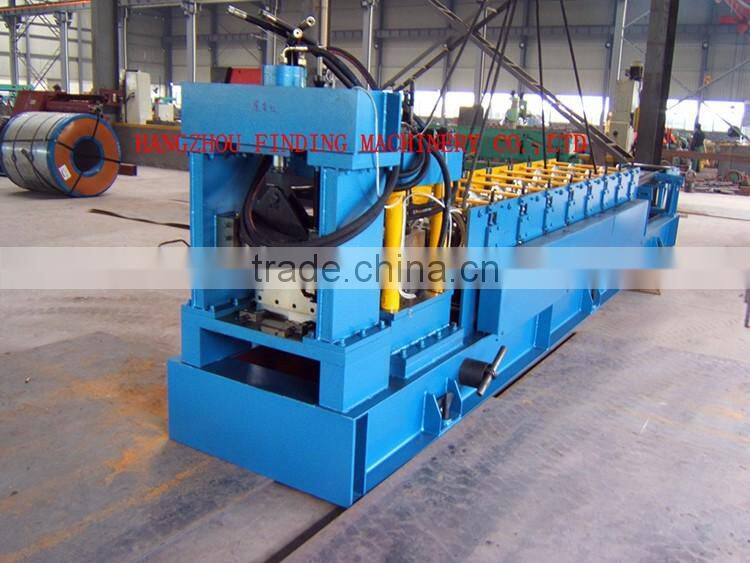

Product Pictures:
| Machinery | ||
| Roll forming machine | Automatic stacker | Embossing machine |
| Slitting line | Shear machine | Supplementary Equipment |
| Press brake machine | Pressing bending machine | |

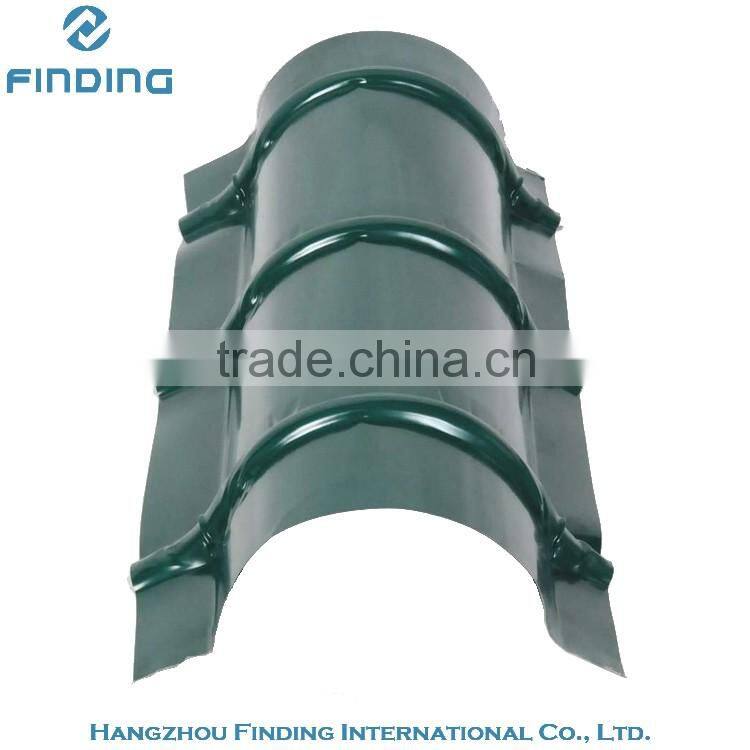

| Finished Product | ||
| Steel coils | Steel sheets | ACP mosaic |
Our Advantages:
| Our machine | Other company 's machine | Influence of the machine | |
| Machine's base | High strength H350 / H400 steel. machine through milling macine after welding | H270 steel mark, after welding use manual polish | keep base in the same horizontal line, ensure product standard |
| Roller material | High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated | Normal No. 20 steel with Simple polished and have no coating | Roller will have longer use life and ensure the products have same size,no nick on the surface. |
| Side wall | Use high strength16mm thickness steel panel mark | Use 12 mm thickness steel panel mark | Ensure machine harder to deform, keep the product accurate and stable |
| Active shaft material | High grade solid No.45 carbon steel, Shaft diameter is 72mm. surface CNC polish treatmen | Normal No. 45 steel with no surface treatment | Improve the integrated mechanic feature of the shaft. and ensure the shaft stability keep product standard |
| Electrical elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China | All the elements are made in china | Machine become more accurate and more stable |
| Cutter blade | Cr12 mould steel with quenched treatment | Normal high strength steel without quenched treatment | Stable the integrated mechanic feature of the cutter blade,harder to deform, longer blade's life, ensure product standard |
Design Ability:
- We have more than 20 years experience in produce roll forming machine,
- We have a group of professional engineers,
- We have a lot of customer's feedback data,
- We can design the machine and product according to your request.
| About Us: |
Hangzhou Finding International Co., Ltd locates in the beautiful city - Hangzhou, which is a professional manufacturer and exporter for building material machinery and related steel coils in China. Hangzhou Finding is specialized in exporting of the group company; we have the factories of steel roll forming machinery, steel coils, steel structures and ACP mosaic tiles. With rich technical force, high-level managerial team, strong production capacity and strict quality control system, Hangzhou Finding has established a long term business relationship with global customers from America, South America, Europe, Asia, Africa, and Middle East on mutual benefits. All of the products can be customized to meet your specific requirements, please do not hesitate to contact us, let us help you to win the market early. |

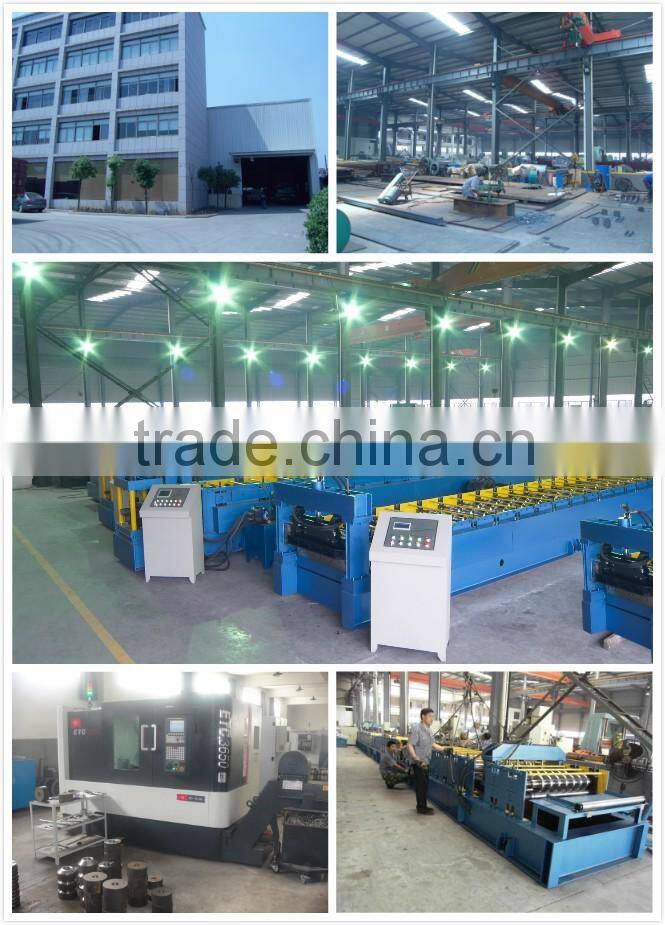

| Our Factory & Equipment: |
|
| Our Team & Exhibition: |
|
| Our Certificate: |
| |
