Home > Products > Embossing Machine > Hydraulic Steel Curve Edge Banding Machine

Hydraulic Steel Curve Edge Banding Machine

FOB Price

US$ 20,000 - 30,000 / Set

1 Set(Min. Order)

Port Ningbo / Shanghai
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Glazed Steel	Use	Wall
Production Capacity	10~20 m / min	Place of Origin	Zhejiang, China
Brand Name	Finding or OEM	Model Number	Finding- curving machine
Power(W)	5.5KW	Voltage	380V
Dimension(LWH)	1.5m1m2m	Weight	1 tons, 10 tons
Certification	CE & ISO, CE and ISO	Warranty	1 year, 1 year and provide the technical support for the whole life.
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

steel curve edge banding machine
Comprehensive sevice
Good price
CE certificate
20 years experience

Machine's name:

curve machine / steel curve machine / hydraulic steel curve edge banding machine / hydraulic curve machine

Main technical parameters:

Standard Equipment of Machine :
uncoiler	1 set
Guiding Equipment	1 set
Roll Forming Equipment	1 set
Post Cut Equipment	1 set
Hydraulic Station	1 pc
PLC Control	1 pc

Our advantages :

	our machine	other company 's machine	Influence of the machine
Machine's base	High strength H350 / H400 steel. machine through milling macine after welding.	H270 steel mark, after welding use manual polish.	keep base in the same horizontal line, ensure product standard.
roller material	High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated	normal No. 20 steel with Simple polished and have no coating	Roller will have longer use life and ensure the products have same size, no nick on the surface.
side wall	use high strength16mm thickness steel panel mark	use 12 mm thickness steel panel mark	ensure machine harder to deform, keep the product accurate and stable
Active shaft material	High grade solid No.45 carbon steel, Shaft diameter is 72mm. surface CNC polish treatment.	normal No. 45 steel with no surface treatment	improve the integrated mechanic feature of the shaft. and ensure the shaft stability keep product standard.
Electrical elements	PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China	all the elements are made in china	machine become more accurate and more stable
cutter blade	Cr12 mould steel with quenched treatment	normal high strength steel without quenched treatment	stable the integrated mechanic feature of the cutter blade, harder to deform, longer blade's life, ensure product standard.

Design ability:

We have more than 20 years experience in produce roll forming machine,

We have a group of professional engineers,

We have a lot of customer's feedback data,

We can design the machine and product according to your request.

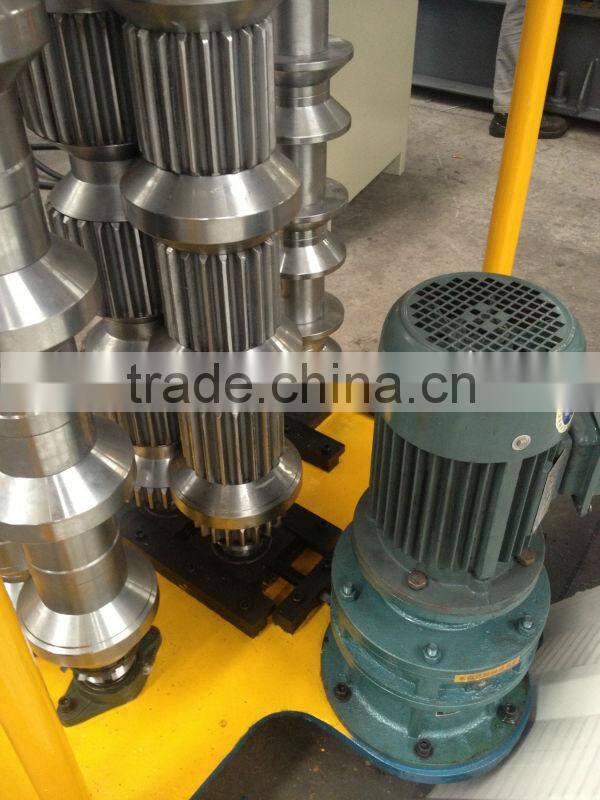

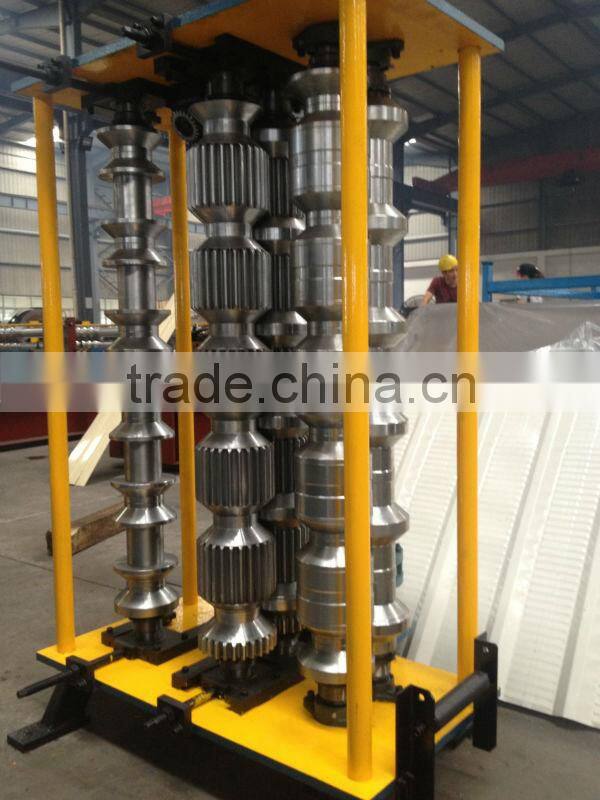

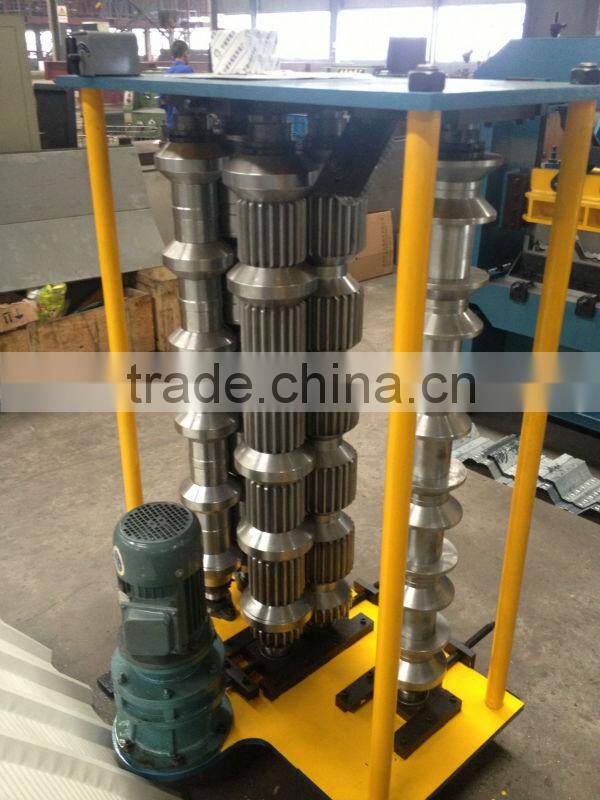

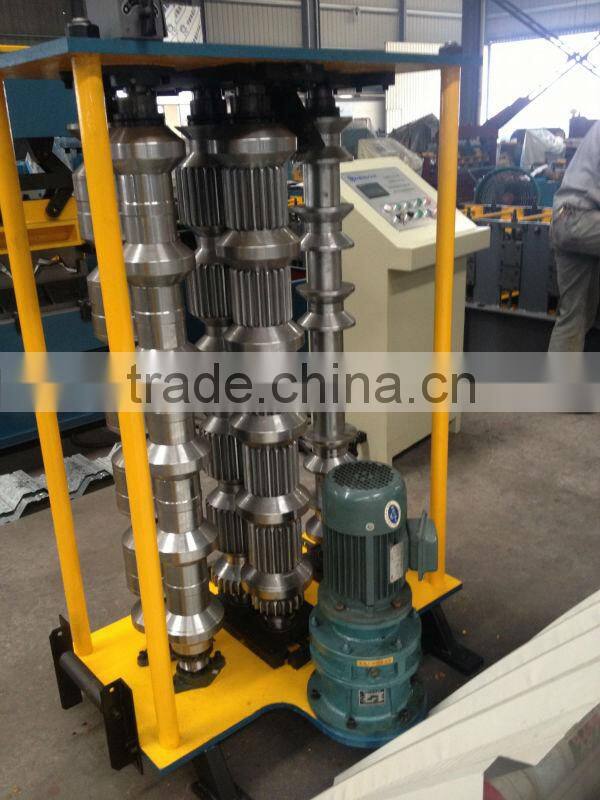

Curve machine photo:

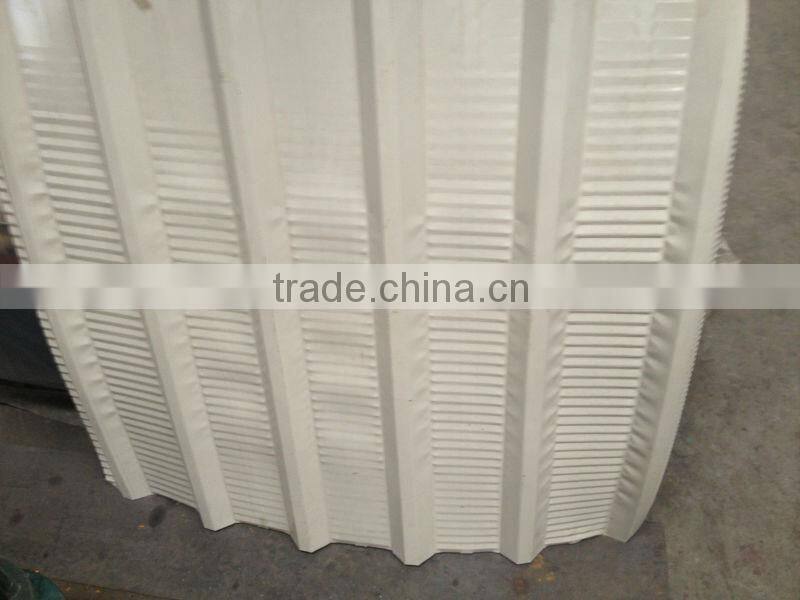

Product 's photo:

Hydraulic Punching Curving Machine Technical Process

Rack Retainer → Rolling Transmission → Punching Die Structure

our customer:

We have developed more than 20 series of steel roll forming machines which can meet the requirements of all steel constructions, such as production lines for wall & roof sheet, cold roll forming machine, color steel tile, C & Z & W shape purlin and floor decking sheet as well as production line for all kinds of sandwich panels, curving machine for roof sheets. We also supply production lines of guardrail sheet for expressway, shutter doors, garages doors and downpipe. Besides, we devoted ourselves to the research & development of various kinds of other products related to steel structure, such as hydraulic press brake machine, shearing machine, slitting machine, prepainted steel roof panel cold rolling making machine, curve machine / steel curve machine / hydraulic steel curve edge banding machine / hydraulic curve machine etc.

If you have interesting please do not hesitate to contact me.
