Home > Products > New Products > GP 5000W 48V solar inverter for lead acid battery with trade assurance

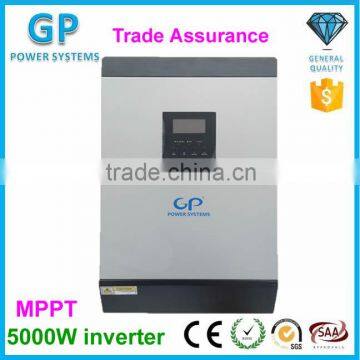

GP 5000W 48V solar inverter for lead acid battery with trade assurance
- shenzhen
- T/T Credit Card
You May Like
-
[GP Power]High efficiency multi-function 1000-6000W hybird solar inverter price
-
[GP Power]2000VA/1600W high frequency pure sine wave MPPT solar Inverter
-
[GP Power]CE Approved Competitive Price MPPT Solar Inverter 1kva -5kva made in China
Quality Choice
-
[GP Power]Off grid Hybird solar power system with MPPT charger 1000W to 5000W
Quality Choice
-
GP Inverter 1kva/800W pure sine wave inverter hybrid solar inverter with built-in mppt charge controller
-
GP 2kva off-grid pure sine wave mppt solar charge controller inverter
Product Details
| Place of Origin | Guangdong, China | Brand Name | GP | |
| Model Number | GHP5000M | Output Power | Other, 5000W 48V solar inverter | |
| Output Type | Dual | Size | 120*295*468mm | |
| Weight | 15kg | Input Voltage | 48V | |
| Output Voltage | 110V/220V/230V/240V | Type | DC/AC Inverters | |
| Output Frequency | 50Hz/60Hz | Output Current | 5A-60A |
Product Description
GP 5000W 48V solar inverter for lead acid battery with trade assurance
5000W 48V solar inverter specification:
• Pure sine wave inverter
• Built-in MPPT solar charge controller
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Parallel operation with up to 6 units only available for 4K/5K
| Model No. | GPH1024M | GPH1048M | GPH2024M | GPH3024M | GPH3048M | GPH4048M | GPH5048M | |
| Rated Power | 1KVA/800W | 1KVA/1KW | 2KVA/1.6KW | 3KVA/2.4KW | 3KVA/2.4KW | 4KVA/3.2KW | 5KVA/4KW | |
| Input | Rated Voltage | 120VAC or 230VAC | 230VAC | |||||
Voltage selectable range (for Personal Computer) | 95~140 VAC (110) | 170~280 VAC | ||||||
| 170~280 VAC(230) | ||||||||
Voltage selectable range (for home a ppliance) | 65~140 VAC (110) | 90~280 VAC | ||||||
| 90~280 VAC (230) | ||||||||
| Frequency range | 50Hz/60Hz (Auto sensing) | |||||||
| Output | AC voltage Regulation (Batt.Mode) | 110/120 VAC ± 5% (User selectable) | 230V AC ± 5% | |||||
| 230V AC ± 5% | ||||||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |||
| Efficiency (Peak) | 90%~93% | |||||||
| Transfer time | 10ms (for personal computer) | |||||||
| 20ms (for home appliance) | ||||||||
| Wave form | Pure sine wave | |||||||
Battery & AC | Battery voltage | 24VDC | 48VDC | 24VDC | 24VDC | 48VDC | ||
| Charger | Floating charge Voltage | 27VDC | 54VDC | 27VDC | 27VDC | 54VDC | ||
Overcharge Protection | 31VDC | 62VDC | 31VDC | 31VD | 62VDC | |||
Maximum Charge Current | 10A/15A | 10A/15A | 20A or 30A | 20A or 30A | 10A/15A | 20A or 30A | ||
| PV Input | Maximum PV Array Power | 600W | 900W | 600W | 600W | 900W | 3000W | |
MPPT Range @ Operating Voltage (VDC) | 30~66 | 60~80 | 30~66 | 30~66 | 60~80 | |||
Maximum PV Array Open Circuit Voltage | 75 VDC | 75 VDC | 75 VDC | 102 VDC | 145 VDC | |||
Maximum Charge Current | 25A | 20A | 25A | 18A | 60A | |||
| Maximum Efficiency | 0.98 | |||||||
| Standby Power | 2W | |||||||
| Consumption | ||||||||
| Physical | Dimension, D×W×H (mm) | 128×272×355 | ||||||
| Net Weight (Kgs) | 7.4 | 7.6 | 8 | 12.5 | 13.5 | |||
Environ mental | Humidity | 5%~95% Relative Humidity (Non-condensing) | ||||||
Operation Temperature | 0℃~55℃ | |||||||
How to configure | Inverter Power | 800W | 1000W | 1600W | 2400W | 2400W | 3200W | 4000W |
Pmax. generated from | 25Amp, | 20AMp, | 25Amp, | 20Amp, | 20Amp, | 60Amp, | 60Amp, | |
| solar charger | 600W | 900W | 600W | 900W | 900W | 3000W | 3000W | |
Best Panel Configuration | 500Wp | 1000Wp | 500Wp | 500Wp | 1500Wp | 3000Wp | 3000Wp | |
| (250Wp× | (250Wp × | (250Wp × | (250Wp × | (250Wp × | (250Wp × | (250Wp × | ||
| 2pcs) | 4pcs) | 2pcs) | 2pcs) | 2pcs) | 12pcs) | 12pcs) | ||
General Power Corporation, which was founded in Detroit City, Michigan State in 1928, was usually abbreviated to GP. GP is a large corporate enterprise, By the technology innovation of inverters, UPS and diesel generator. It has been a leader in the field of power source. After more than 80 years’ development, the products have been supplied to more than 140 countries. And in USA, Germany, Mexico, South Africa, China and Thailand, GP have already set up the manufacturing bases, with more than 1700 distributors and agencies, and 31.000 employees all over the world.GP is one of the Fortune 500 enterprises in US.
1.Five years warranty for free.
2. After the warranty period,engineers Maintenance aboard available.
3.Will get response within 24h.
