Product Details
| Brand Name | Protech | Model Number | PET0108R | |
| Place of Origin | Guangdong, China |
Product Description

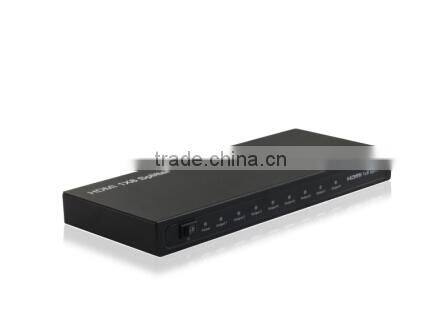

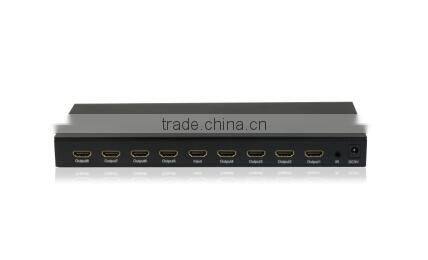

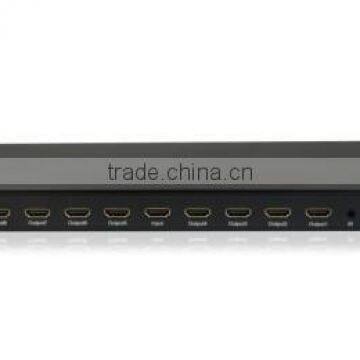

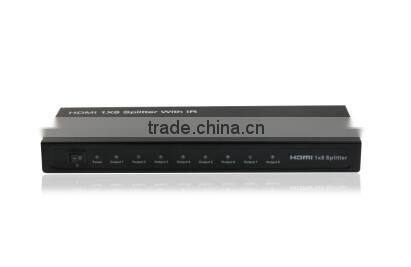

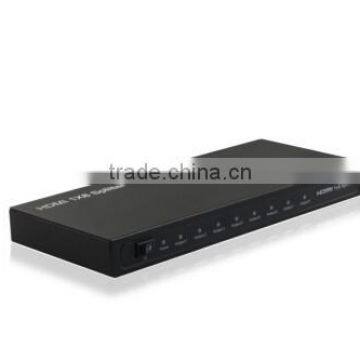

HDMI Splitter with IR function CEC Mini 1x8 Splitter
This splitter is beautiful in appearance. It distributes the input of the HDMI signal into the eight identical outputs simultaneously. It supports the real HDMI 1.3b. Its video amplifier bandwidth can be up to 2.25Gpbs/225MHz.
The HDMI Splitter offers solutions for HDTV retail and show site, HDTV, STB,DVD and Projector factory, noise, space and security concerns, data centercontrol, information distribution, conference room presentation, school and corporate training environments.
* Cascaded: Large distribution achieved by cascading the HDMI Amplifier Splitter.
* Support HDMI1.3b
* Support highest video resolution 1080p
* High performance up to 2.25Gbps
* Support uncompressed audio such as LPCM
* Support compressed audio such as DTS Digital, Dolby Digital
( including DTS-HD and Dolby True HD )
* Support 3D
| Signal Input | HDMI Signal |
| Input Video Signal | 0.5 -1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Maximum Single Link Range | 1920X1200, 1080P |
| Output Video | HDMI 1.3b |
| VGA | 640x480,800x600,1024x768,1920x1200 |
| HDMI Compliance | HDMI 1.3b |
| Video Amplifier Bandwidth | 2.25Gpbs/225MHz |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| Limited Warranty | 1 Year Parts and Labor |
| Operating Temperature | 0 ℃ to +70℃ |
| Storage Humidity | 5% to 90 % RH (no condensation) |
| External Power Supply | 5V DC |
| Converter Unit Cert. | FCC,CE |
| Power Supply Cert. | CE,FCC |
| AC Power Adapter | US standard, UK standard and so on |
| User Manual |
Note: Specifications are subject to change without notice.
PACKAGE CONTENTS
1) Main unit
2) 5V DC Power Supply
3) User's Manual
