Home > Products > Film blowing machine > JSY-350 film blowing and printing machine

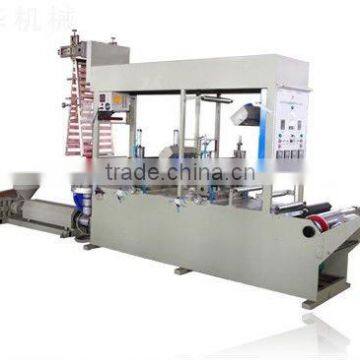

JSY-350 film blowing and printing machine
USD $9,500 - $13,000
/ Set
1 Set(Min.Order)
- Shanghai
- T/T
You May Like
-
HDPE LDPE BIO/OXO degradable shopping bag t-shirt bag plastic film blowing printing machine
-
High speed plastic film blowing machine
-
two color strip film blowing machine
-
HDPE/LDPE/LLDPE Film Blowing Machines/Film Blowing Machinery/Plastic Machinery
-
mini film blowing machine
-
50mm to 1500mm HDPE LDPE one mould die one or two screw film extrusion machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | honghua | Model Number | JSY-350 |
Product Description
Specifications
1.HDPE/LDPE/LLDPE2. Film thickness: LDPE: 0.015~0.08mm, HDPE 0.01~0.03mm
3.width:100~350(mm)
4.t-shirt shopping bag
I.Main feature and performance
This machine is used for producing soft plastic package bag, it can blow and print at the same time with printing in both sides, the material is HDPE, LDPE, dissoluble plastic and recycle material etc. It is the best machine for shopping bags(vest bag).the main features as following:
1. Wide application, several purposes(It can blow HDPE and LDPE, blowing and printing at the same time, or single blowing and single printing)
2. Advanced structure, easy operation, correct overprint, easy maintenance
3. Saving Raw material, reliable quality. It has following advantages which we compared with same line machines:
a. Bright color, strong fastness;
b. Blowing and printing at the same time, exact overprint
c. Easy maintenance, reliable and stable quality
d. Less power consumption, less labor, saving working time, less cost, etc.
II.Main technical parameter
| Screw: pole | φ45, L/D: 28:1 |
| Blowing and printing width | 100~350(mm), printing width: 420mm |
| Film thickness | LDPE: 0.015~0.08mm, HDPE 0.01~0.03mm |
| Production capacity | 10~35 kg/h |
| Printing speed | 0~35 m/min |
| Gravure installation size | length 420 mm, φ75~180(mm) |
| Power: motor | 7.5Kw |
| drying | 0.8Kw/color |
| extruding heating | 12Kw |
| Total weight | 2200kg |
| Overall size(L×W×H) | 6000×1300×2500mm |
Contact Us
- Jiangyin City Honghua Machinery And Equipment Co., Ltd.
- Contact namemachine Honghua Chat Now
- Phone86-510-86399999
- AddressNo.99,Huannan Road ,Zhutang Town ,Jiangyin city ,Jiangsu ,China, Wuxi, Jiangsu
