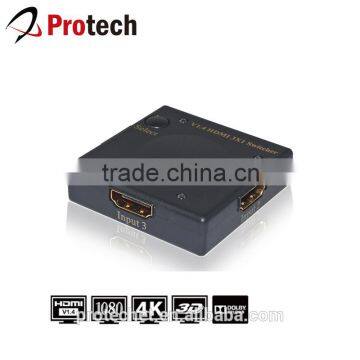

HDMI 3X1 Mini Switcher 3 ports Support full 3D and 4K

                       HDMI 3X1 Mini Switcher 3 ports Support full 3D and 4K

1.0   Introduction

This kind of HDMI mini amplifier switcher not only has the key-press-switching function, but also has the intelligent function. It routes high definition video (in multiple resolutions up to 4KX2K) and digital audio from any one of the several sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox360 etc.

1.1 Intelligent function

1) Once the source device is turned on or plugged in (should stay power-on mode), the switcher

will automatically select this source.

2) Once the source device is turned off or plugged out, the switcher will automatically select the

Next power-on source depending on the sequence automatically (input1>input2>input3 )

Note:

1) When the source devices are on the stand-by mode, its power supply should be turned off, otherwise this switcher can not meet intelligent function.

2) When plugged in or out, this switcher is completely intelligent.

2.0   Feature

* Multifunctional on switching ; intelligent or mechanical

* Support HDMI1.4b

* Support high Definition resolution 4KX2K@30Hz,1080p and 3D.

* Support 300MHz/3.0Gbps per channel bandwidth.

* CEC Pass-through

* Support 12bit per channel (36bit all channel) deep color.

* Support uncompressed audio such as LPCM.

* Support compressed audio such as DTS Digital, Dolby Digital

(including DTS-HD and Dolby  True HD).

3.0 Specification

  Note:

1)Specifications are subject to change without notice.

2)Please switch on three input sources at the same time when using this no power needed switcher with PS4

4.0 Package Content

1)   Main unit.

2)   User's Manual
