European type safety chain hook G80 G100
- 30000 Ton / Tons per Month
- Qingdao Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | superior | |
| Model Number | Loading Chain | Structure | Roller Chain | |
| Function | Transmission Chain | Material | Iron | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
European type safety g80 chain hook1.Alloy steel
2.Color painted
3.High tensile
4.Easy assembly with the chain

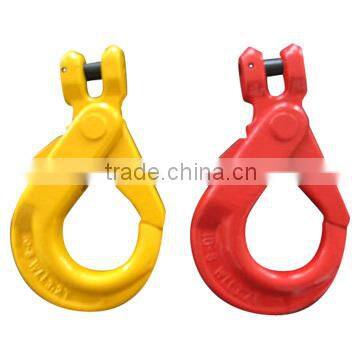

European type safety g80 chain hook
Alloy steel, 20Mn2
Color painted red/yellow and so on
Max W.L.L 31.5Ton
Marking with WLL Size
Various type are availabe such as European type hook, Italy type hooks and so on
Mill certificate is available
Competitive price, good products quality and excellent after sale service
G80 European Type Clevis Self-locking Hook
| Size | Weight/kg | W.L.L/Ton | B.L./Ton | E | B | H | Φ | R |
| 6 | 0.5 | 1.12 | 4.48 | 29 | 8.5 | 19.5 | 34 | 95.5 |
| 7/8 | 0.8 | 2.00 | 8.00 | 34 | 9.5 | 24 | 46 | 121 |
| 10 | 1.5 | 3.15 | 12.80 | 44 | 12 | 28.5 | 56 | 146 |
| 13 | 2.8 | 5.30 | 21.20 | 52 | 15 | 40 | 69 | 182 |
| 16 | 5.6 | 8.00 | 32.00 | 60 | 18 | 50.5 | 86 | 218 |
| 20 | 7.5 | 12.50 | 50.00 | 83 | 25 | 55 | 100 | 240 |
| 22 | 11.5 | 15.00 | 60.00 | 88 | 25.5 | 67 | 98 | 276.5 |
| 26 | 18.5 | 21.20 | 84.80 | 95.5 | 30 | 75 | 110 | 310.5 |
G80 European Swivel Self-locking Hook
The hooks are eays to assemble with chains without any intermediate coupling-links.
The maximum working load limit can reach 31.5 Tons.
We have been manufacturing these products for over 10 years. Guarantee excellent quality. We also could do OEM services, can well meet clients' needs and requests.
Want to know more detailed information about us, go to our website.
