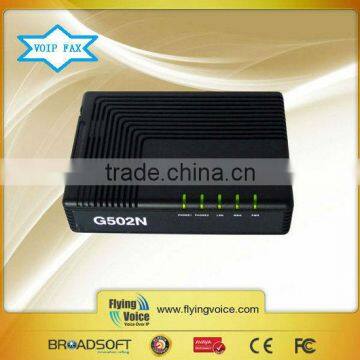

2 FXS VoIP Phone Adapter (ATA) G502N

FOB Price

USD $1 - $45 / Set

1 Set(Min.Order)

Supply Ability 20000 Set / Sets per Month
Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	FlyingVoice
Model Number	G502N		Type	VoIP Phone

Product Description

2 FXS Ports VoIP Phone Adapter (ATA) G502N

Highlights:

SIP V2.0(RFC3261,3262,3263,3264)
2 10/100M RJ45 port(1 WAN, 1 LAN), 2 FXS for G502N
2 10/100M RJ45 ports(1 WAN)
Real time FAX over IP via T.38 and T.30 FAX with G.711
PAMS is above 4.0 with G.729 Codec
Field proven compatibility and stability
Auto-Provisioning-TFTP/HTTP/HTTPS
TR069, SNMP

G502N Specfications

Hardware Features
Interface	1 10/100Mbps LAN port 1 10/100Mbps WAN port 2 FXS ports 1 Power set
Power Supply	AC Input : 100-240v, 50-60Hz; DC Output: 5V, 2A
Environmental	Operation Temperature: 5~45 Degree C Storage Temperature: -25~85 Degree C Relatively Humidity: 10%~90% No Condensing Shock: Up to 75cm Drop upon package
Dimension	(L)120×(W)80×(H)28mm
Unit Weight	140g(without package)
Software Features
Audio Codec Features	G.711(A-law, u-Law)with PAMS above 4.3 G.729A/AB with PAMS above 4.0 Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation T.30 FAX with G.711 Real time FAX over IP via T.38
Protocols	SIP V2 (RFC 3261,3262,3263,3264) Backward Compatible with RFC2543 Session Timer (RFC4028) SDP (RFC2327) RTP/RTCP (RFC1889 and RFC1890) NAPTR for SIP URI Lookup (RFC2915) STUN (RFC 3489) ARP/RARP (RFC 826/903) SNTP (RFC 2030) DHCP/PPPoE PPTP/L2TP VPN HTTP Server for Web Management TFTP/HTTP/HTTPS for Auto Provisioning DNS/DNS SRV (RFC1706 and RFC 2782)
Management	Firmware Upgradeable Web Management Interface IVR-driven Management Interface Local and Remote Syslog (RFC3164) Auto Provisioning SNTP Time Synchronization Multiple User Level SNMPv2 TR069
Applications	NAT/NAPT Router function MAC Address Cloning DHCP Server PPTP/L2TP VPN PPPoE SIP proxy redundancy – dynamic via DNS SRV, A records NAT Traversal by STUN DMZ QoS with Layer 3 DHCP Client and DHCP Server IP conflict detection
Call Features	3-way Conference Music on hold DTMF Relay: In-band, Out-band and SIP INFO Call Hold Call Forwarding Call Mute Call Transfer Call Waiting Speed Dial Caller ID and CWCID Hotline Real time fax over IP via T.38 T.30 FAX with G.711 Dial Plan Black List Call Log

Key Features of G502N

The G502N, 2 FXS Analogue Telephone Adapter products in Flyingvoice, which enables customers to register to different SIP Proxy server, IP PBX and establish up to 2 concurrent VoIP calls for more flexibility in the voice communication.

Their compact size, excellent voice quality, packed feature functionality and best-in-class price-performance point enable consumers to maximize the power of IP voice and data connectivity.

G502N is based on SIP V2.0 standard and compatibility with most service providers. It features 2 FXS telephone ports, TR069 CPE management & monitoring protocols and a base stand for vertical positioning.
. Up to 2 concurrent VoIP calls
. Real time FAX over IP via T.38 and T.30 FAX with G.711
. TR069 CPE management & monitoring protocols
. Field proven compatibility and stability
. Very Highly affordable and effective 2 FXS ports VoIP CPE

ATA Series Comparison

Features/Model	G501N	G502N
Pictures
Network Ports	2 RJ45 10/100Mbps (WAN/LAN)	2 RJ45 10/100Mbps (WAN/LAN)
FXS Ports	1	2
SIP Accounts	1	2
Wire-Speed NAT	yes	yes
DHCP	Client/Server	Client/Server
Voice Codec	G.711(A-law, U-law), G.729A/AB,G.723,G.722
Management	Integrated IVR, Web browser, Auto-Provision with HTTP/TFTP/HTTPS,TR069, SNMP
FAX	T.30,T.38 Fax
