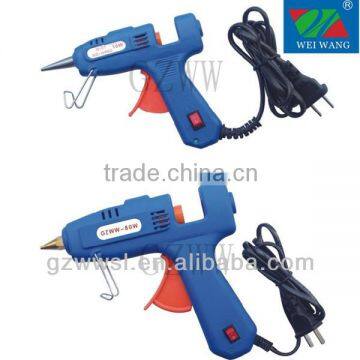

20W Hot melt glue gun

Specifications

Hot melt glue gun

Power

12W

15W

20W

Valtage

100-240V

Frequancy

50-60Hz

Item No.

W-01

MADE IN CHINA

Hot melt glue gun manual

Features

The glue gun using high-tech ceramics, PTC thermistor automatic constant temperature heating element, heating up fast, long service life. From voltage fluctuation limit, can be normal use between in 100V-240V.

Design with automatic thermostat, prevent overheating, the built-in safety fuse. High voltage 330V /3minutes.Insulated electrical strength: 3750 / minute, without breakdown

Application

Toy model

Artificial flowers, Christmas tree.

Decorations,Metal products.

Wood products, Cardboard ect.

How to use

 Put a stick into the gun,, with 10.8-11.5mm diameter plug in the gun and wait for 5-8minutes, press the trigger then melt glue out.

If one stick can not be spend end,do not need taken out it, can be inserted into the power of preheating 5-8 minutes , stick can be used directly next time

This is high temperature glue gun, using of 10.8-11.5mm diameter white glue, if you use the unmatched size may cause melt flow back and damage the gun.. Away from the gun nozzle since the high temperature of melt glue.

Cut off the power when without using it for 15 minutes to avoid flow back glue damage the gun.

Ensure away from flammable ,explosive and damp occasions, do not raise the gun, upward the gun muzzle during using.

Put the gun at clean,dry place when not use, away from childer.

It is normal the gun may take a little smoke at first time to use it, the phenomenon will gone after 30 minutes.

Should always keep the gun breech block cleaning, to ensure that the rubber strip can smoothly into the hose.

 The gun must be placed in its support after working done, to leave cool before storage.
