Whole Line of Aseptic Brick Filling Machine China
- Guangzhou
- T/T
You May Like
Product Details
| Condition | New | Function | Filling, Sealing | |
| Application | Beverage, Other, Beverage, pack juice, drink, and milk drink into brick shaped paper boxes | Packaging Type | Other, brick paper box | |
| Packaging Material | Paper | Automatic Grade | Automatic | |
| Driven Type | Pneumatic | Voltage | 220V | |
| Power | 26kw | Place of Origin | Guangdong, China | |
| Brand Name | Myteck | Model Number | MTZBJ series | |
| Dimension(L*W*H) | as per design | Certification | CE/ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product description
Aseptic juice, beverage, and milk drink filling machine line for brick shaped paper boxes, paper box folding and formation machine, non-bacteria filling, sealing, straw sticking to boxes, straw applicator, brick box filling machine, whole line equipment

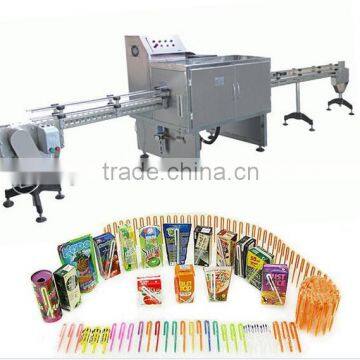

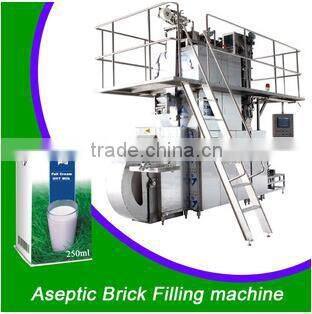

This machine is suitable for aseptic filling of flowing liquid food such as milk, non gas beverage, fruit juice, coffee, plant protein drinks, tea drinks, fruitwine that is sterilized from the UHT. It can automatically complete the lamintate feeding, sterilization, filling and forming. The machine adopts full stainless steel material, the core components are all the world first-class brand. By introducing the latest technology of the filling machine, it’s main technical indicators have reached the top level of domestic and foreign products of the same type. This machine features stable performance, high degree of automation and price-affordable. It can form a whole packaging line with straw applicator and box formation and folding machine.
Technical Specifications:
Models: 250B(250ml Standard)
250S(250ml Slim)
200S(200ml Slim)
125S(125ml Slim)
Dimension: 4940(L) X 2900(W) X 3900(H)mm
Total Power: 26KW
Power Source: 50Hz, 380V/220V
Capability: 3000 packs/hour

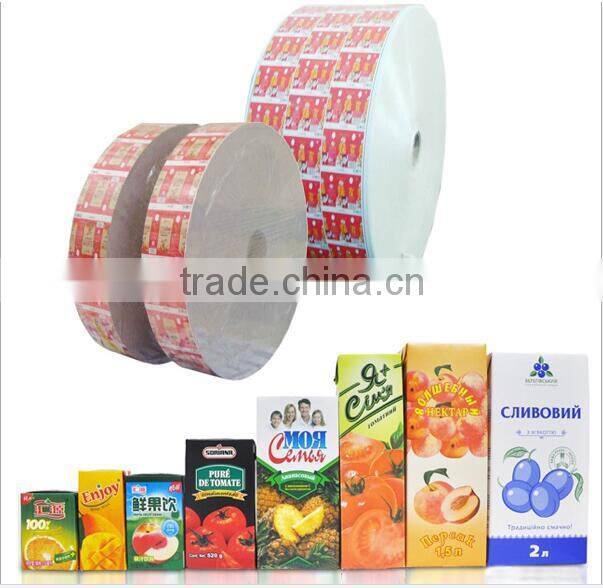

Package: Brick-shaped pack of Paper/AL/PE laminated material
Shelf Life: 6 months above at room temperature of 25 ℃ -30 ℃
Technical Specifications:
The following specs are only for filling unit.
Dimension: 3200x70x1550mm
Weight: 300KGS
Power supply: 50Hz 380V/220V
Power: 4.5KW(Maximum)
Capability: 5000pieces/hour
Feeding mode: single line
Width of feeding belt: B55
Compressed air: 0.4-0.6MPa
Air consumption: 100lt/min
Packaging and Shipping
Our service
We take care of your demand and your investment. We offer caring service and also good communication. The machine can be custom make according to customer's bottle size and shape and speed requirement. We design suitable solution for your application.
Contact Us
Please feel free to consult me and your inquiry is welcome.
Louisa Wang
Mobile: 0086-15920893299
What’s app (wechat): 15360457245
Skype: wangzx_11
Email: louisawzx at
