Automatic labeling machine for sale

Product description

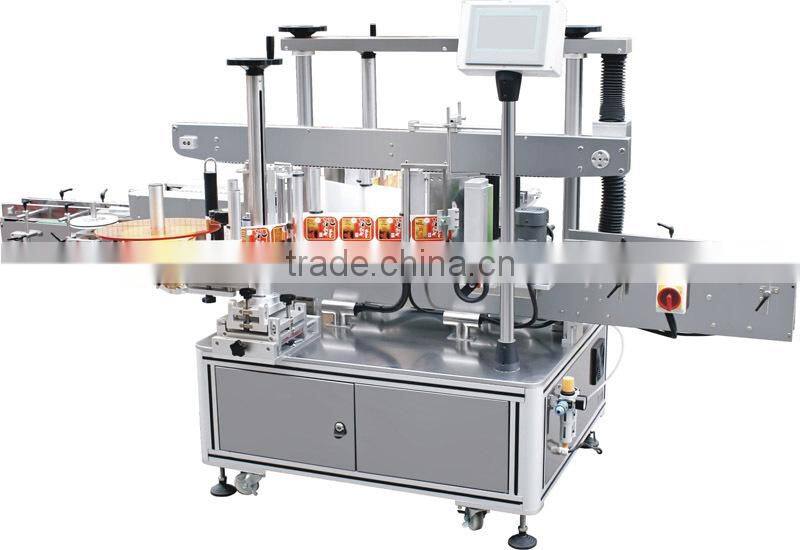

This automatic labeling machine is designed for round bottles of mineral water, cosmetics, food and chemicals. It can be combined with inkjet printing machine or ribbon coding machine to print date of production, date of expiration, batch number and other information on bottles or labels. It is controlled by PLC and can preset 50 groups of labeling parameters with powerful memory function. The label output is controlled bymutual inductance stepping motor to ensure synchronization between label output speed and bottle rolling speed. Imported frequency converter is used to guarantee the stableness and reliableness of the whole machine.

Technical parameters:
The following technical parameters of standard model machine, other special requirement and function, can be customized.
applicable labeling length (mm): 20mm~285mm
applicable label width (paper backing width/mm): 20mm~160mm
applicable product diameter (for round bottle) and height: diameter: φ25mm~φ90mm height: 25mm~300mm
applicable external diameter (mm): φ280mm
applicable label inner diameter (mm): φ76mm
labeling accuracy (mm): ±1mm
label send out speed (m/min): servo: 5~25m/min stepwise motor: 5~19m/min
labeling speed (pcs/min): stepping motor: 25~50pcs/min servo: 30~60pcs/min
sending speed (m/min): 5-18m/min
weight (kg): about 185kg
frequency (HZ): 50HZ
voltage (V): 220V
power (W): TRACTION BUJIN: 570W TRACTION SERVO: 980W
equipment external dimension (mm) (L×W×H): 3000mm×1200mm×1530mm
air (Mpa): 0.4-0.6Mpa
