Home > Products > New Products > thread rolling machine
thread rolling machine
- China
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Xinggong | |
| Model Number | z28-80 | Machine Type | Roll Forming Machine | |
| Raw Material | Steel Bar | Material / Metal Processed | Carbon Steel | |
| Power | Hydraulic | Certification | ISO 9001:2000 |
Product Description

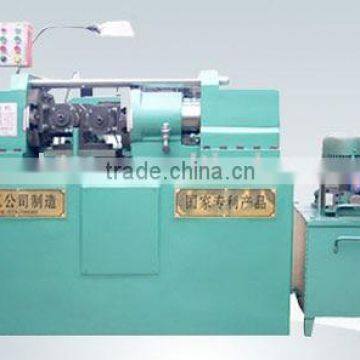

thread rolling machine
thred rolling machine model z28-80 can radial and axial machining processing, match with the corresponding rolling processing ordinary bolts, bolts
this model is widely prised for its ration price,easy maintenance and high quality
besides axial and radial process,it is used to process regular and irregular bolt,through screw etc.with optional embossing roller.
the through screw made with this machine in zhejiang standard parts base has exported to US,Canada and Europe.
parameters:
pressure of roller max:150KN
working dia:4-48mm
OD of roller:120-170mm
BD of roller:54mm
roller width max:100mm
center distance of main shaft:120-240mm
rotary speed of main shaft:36,47,60,78(r/min)
feed speed of movable shaft :5mm/s
thread length(no limits)
main power:4kw
hydraulic power:2.2kw
weight:1700kg
size:1500*1380*1140mm
