Efficiency PZ-3 Spraying Concrete Machine

Specifications

Efficiency PZ-3 Spraying Concrete Machine

Application:

• Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
• Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
• Refractory spraying and repair for industrial kilns or kilns’ inner liner.

 Features:

• Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
• Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
• Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
• Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
• Three drive models: by Electric motor, air motor or diesel engine.
• For the most specific risks of this machine, safety and compliance with the essential requirements of the Directive has been based on elements of EN ISO 12100-1:2003, EN ISO 12100-2:2003/A1:1995, EN 60204-1:2006 and EN 1050:1997.

Technical Data:

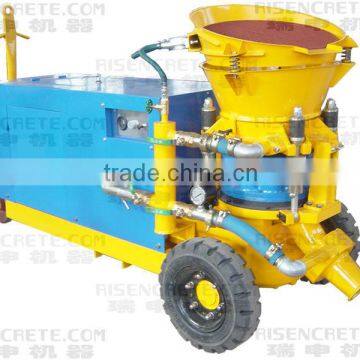

Picture  of Machine:

Picture of Spare parts:
