Home > Products > Briquette Making Line > Different capacity charcoal briquette machine blind coal briquette machine for sale0086-18337198727

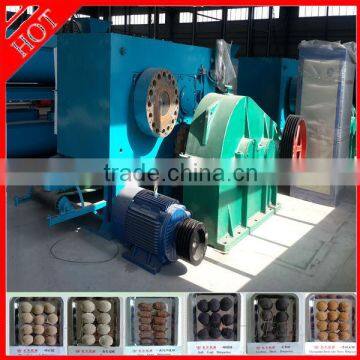

Different capacity charcoal briquette machine blind coal briquette machine for sale0086-18337198727

FOB Price

US$ 1 - 600,000 / Set

1 Set(Min. Order)

Port Qingdao/Shanghai/Tianjin/
Payment TermsT/T L/C Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Production Capacity	20-25T/H
Motor Type	AC Motor	Power(W)	110kw
Place of Origin	Henan, China	Brand Name	Yonghua
Model Number	YHQ1450-850	Dimension(LWH)	310023702285
Certification	CE ISO BV	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

charcoal briquette machine
1.33 years experience
2.Thoughtful service
3. CE, ISO, SGS certificates
4. Easy

Features of charcoal briquette machine

1. The ball press by produced by our machine are smokless, smelless, because we have the high technology liquid binder recipe.

2. The service live of charcoal briquette machine is prolonged, especially the wear-resistant spare parts.

3. The machine is easy operation, easy maintain.

4. This machine is energy saving, can save electricity of 60%, save labors of 2-3 person. Also it is environment protect, it can tatally compress the charcoal powder into charcoal briquettes, less residue.

5. The pressure is highly increased because we have not only the four roller type briquette machine, also we have hydraulic type.

Technical parameters:

Model	Reducer	Speed	Roller size	Main shaft speed (r/min)	Power (kw)	Capacity (t/h)
YHQ290	ZQ350	1:31.5	Φ390*250	15-17	5.5	1-2
YHQ360	ZQ350		Φ360*250		7.5	2-3
YHQ400	ZQ400		Φ400*250		7.5	3-4
YHQ430	ZQ430		Φ430*250		11	4-5
YHQ500	ZQ500		Φ500*300		22	5-7
YHQ650	ZQ650		Φ650*300		30	8-10
YHQ750	ZQ750		Φ750*380		55	13-15
YHQ800	ZQ1250		Φ750*570		110	18-20
YHQ850	ZQ850		Φ820*350		55	15-18
PS	all the capacity is depend on the different material.The above just for your reference,for more,please email me. Skype: tina52044 Tel:0086-18337198727

The structure of charcoal briquette machine

Our coal dust briquetting plant is consists of three main parts: the feeding part; transmission part; molding part.

1. The feeding part: it is meanly for charcoal powdery material from hopper evenly into the machine between the rollers for briquetting.

2. The transmission part: it is the main drive system, including the motor, reducer, triangle strip, coupling, driving spindle, open gear.

3. The Molding part: this is the core and also the most important of the machine for press the charcoal powder into charcoal briquettes.

Working principle of charcoal briquette machine

The operation principle of coal dust briquetting plant is lke this: the power produced by the motor, through the triangle strip to the reducer, and then is passed to the drive shaft, then through a pair of open gear, to ensure the two or four rollers synchronous (constant speed reverse)

This is the simple flow: Motor → Triangle Belt → Reducer → Coupler → Open Gear → Rollers.

Applicable raw materials of charcoal briquette machine

harcoal powder, carbon dust, bamboo charcoal dust, shisha charcoal powder, coconut shell charcoal powder, jujube charcoal powder, coke charcoal powder, etc. Besides, our charcoal briquette machine can be also used to press coal, brown coal, white coal powder or dust, coke powder, coking coal, etc. This equipment is widely used in the field of chemical, refrectories, ceramics, mining, and metallurgy, etc.

The shapes and size of charcoal briquette machine

Our coal dust briquetting plant with roller press can compress the charcoal powder into square, oval shape, egg shape, round shape, pillow shape, bread shape, cylinder, bar shape, etc. Also you can make the briquettes hollow. Besides, we can according to your special requirements to make the moulds for you, that means you can set the shape by yourself. Size of briquettes: as your needs within a certain degree.

charcoal briquette machine of transportation

ceritifate

Our service for our customers:

♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.

♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.

♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.

Any question, welcome to contatc me freely at any time you need!

Skype: Tina52044

Mobile: 0086--18337198727

QQ or Wechat: 1072691023
