HG20 roll forming machinery
- 50 Set / Sets per Month
- Tianjin China
- T/T
You May Like
Product Details
| Type | Pipe Production Line | Pipe Material | Carbon Steel | |
| Place of Origin | Hebei, China | Brand Name | ZTZG | |
| Model Number | HG20 |
Product Description
Specifications
Commodity:roll forming machinery1. Tube range 8-660mm
2. Wall thickness 0.3-20mm, and also profile tube
Commodity:HG20 foll forming machinery

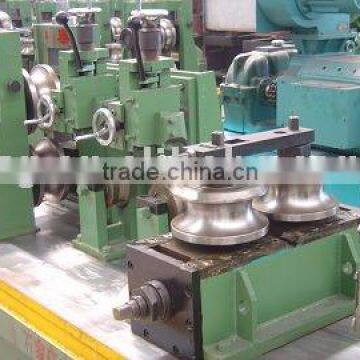

Φ20 high frequency straight welded pipe production line is used to manufacture welded steel pipe of Φ8mm-Φ660mm with 0.5mm-20mm of wall thickness, can produce profiled pipe also within the limit of processing round pipe. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Model | Specification(mm) | Thickness (mm) | Working Speed (M/min.) | |
Circular | Rectangular/Square | |||
HG20 | 8-20 | 10mm×10mm -15mm×15mm | 0.5-1.5 | 100 |
HG32 | 10-32 | 10mm×10mm -25mm×25mm | 0.3-2.0 | 100 |
HG50 | 20-50 | 20mm×20mm – 40mm×40mm | 0.8-3.0 | 100 |
HG76 | 32-76 | 25mm×25mm – 60mm×60mm | 1.2-4.0 | 100 |
HG89 | 42-89 | 25mm×25mm – 70mm×70mm | 1.5-4.5 | 70 |
HG114 | 48-114 | 40mm×40mm – 90mm×90mm | 1.5-4.5 | 65 |
HG140 | 60-140 | 40mm×40mm – 110mm×110mm | 2-5 | 60 |
HG165 | 76-165 | 60mm×60mm – 130mm×130mm | 2-6 | 50 |
HG219 | 89-219 | 60mm×60mm – 180mm×180mm | 2-8 | 50 |
HG273 | 114-273 | 80mm×80mm – 200mm×200mm | 3-10 | 45 |
HG325 | 140-325 | 90mm×90mm – 250mm×250mm | 4-12.7 | 40 |
HG377(355) | 165-377(355) | 90mm×90mm – 280mm×280mm | 4-14 | 35 |
HG406 | 219-406 | 130mm×130mm–330mm×330mm | 6-16 | 30 |
HG508 | 273-508 |
| 6-18 | 25 |
HG660 | 325-660 |
| 6-20 | 20 |
