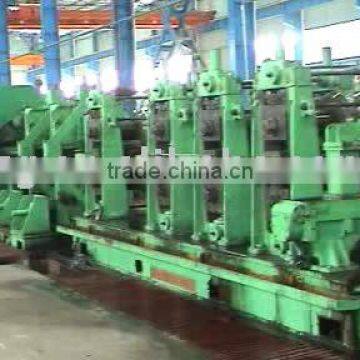

HG219 Tube Making Machinery

Specifications

Commodity: Tube Making Machinery For HG 219

I. Summary

ERW219 pipe making machine is designed to produce welded pipes of OD 89mm(3)-219mm(8 ) and wall thickness 2.3mm-9.0mm, as well as corresponding square and rectangle tube. After we absorbed advanced pipe making technology at home and abroad, our innovative production line and each single unit of the production line are not only economical but also practical. The complete production line adopts ZTF technology developed by our company when producing circle pipe. By means of ZTF technology, the customer shall reduce 60% expense on tooling and improve production effiency and create more economic benefit.

II. Basic Technical Information:

1. Products

Pipe OD: 89mm-219mm                Thickness: 2.3mm-9.0mm

Square tube: Max 175mm×175mm, 250mm×150mm

Thickness: 2.3mm-7.0mm

Length: 6 -12m                   Length Tolerance:  ±3mm

2. Raw Material:

Material: Mild steel coil

3. Tube mill

Production Speed: 10-50 m/min

Direction : From left to right or decided by your side.

III. Flow Chart

Uncoiling→Shear & butt welding→Cage loop→Forming →HF welding →Removing & outsied Bead →Cooling →Sizing  →Cuttingoff → Conveying →Downloading → Packing →Warehousing

Remark:

To protect confidential information, Here only show basic parameters. Detailed parameter will be known in the quotation list or negotiate with customer.
