H.264 network video ip encoder decoder

Specifications

H.264 network video ip encoder decoder

Product introduction

ST83 series network video & audio server is H.264/MJPEG arithmetic and G.722 audio compression, which perform higher definition and fluency. It supports High definition:1080i or 720p, D1:704×576,Half D1:704×288, CIF:352×288. And it is bidirectional talkback, dual stream. The full interface including 2CHA SATA hard disk interface, USB interface, SD card interface, WIFI interface. No PC is required since the built-in Web server has its own IP address.  And it is easy to manage, configure and monitor through Internet Explore.

        Product Type:Professional Distributed Digital Surveillance equipment

        Video Decoding Format:H.264

        Audio Compression Standard:G.722

        Chipset:HI 3511

        Operating system:Linux

Prodcut series

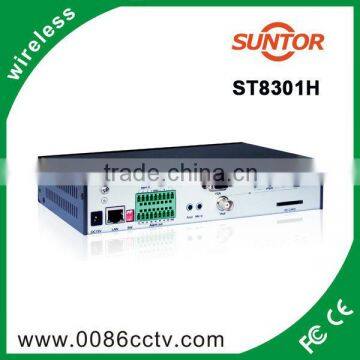

        ST8301H:1 channel high-definition 1080i or 720p encoder,

        ST8301F:1 channel D1 encoder,

        ST8302F:2 channels CIF encoder,

        ST8304F:4 channel sD1 encoder,

        ST8304F-1H:4 channels D1 encoder and 1 channel VGA interface input high-definition encoder

        ST8302C:2 channels CIF encoder,

        ST8304C:4 channels CIF encoder,

        ST8308C:8 channels CIF encoder,

Function introduction

        Support PAL and NTSC format

        Support high-definition, D1, HALF-D1 and CIF resolution

        Support H.264 Video Compression

        Support G.722 audio Compression

        Frame Rate adjust range is 128Kbps~8Mbps

        Video Stream Bandwidth Usage Average less than 200 milliseconds(LAN)

        Built-in Web Server, it fully supports IE monitoring, configuration and updating

        Support dynamic domain name(DDNS), LAN, WAN

        Bidirectional Voice Talkback

        Support dual stream for local recording and network transmission

        pre-recorded 5 seconds of alarm' file, and support Upload Alarm file

        Capture 704*576 resolution base on JPEG format

        After network disconnection automatically connect

        Support automatic restart when anomaly

        Feature-rich, support 2 channels SATA Harddisk, or USB, SD, WIFI

Technical Specification
