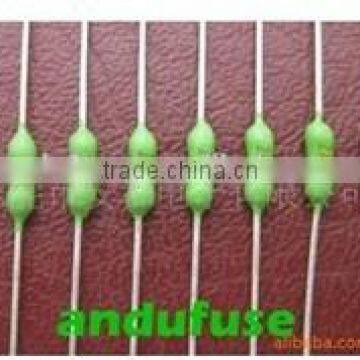

fast acting Military High Reliability Fuses

FOB Price

US$ 0.03 - 0.05 / Piece

3000 Pieces(Min. Order)

Port Yantian
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	ANDU
Model Number	2.5X7	Usage	High Voltage
Breaking Capacity	High	Safety Standards	IEC

Product Description

1
MODEL NUMBER AND SAFETY CERTIFICATION

   Model  Number:  Part  Number+Rated Current+Rated Voltage+Approvals.
[example]:

2SMF/2F       3A     125V                 1) Part  Number
                                                          2) Rated  Current
1)                2)     3)                  3) Rated  Voltage
1-2
Rated Current  And  Voltage
: 32mA~15A
Rated Current: 32 mA~15A
125V/250V/400V AC
Rated  Voltage:125V/250V/400 AC
1
The fuse shall have the following marking
Specification:Characteristic  Symbol+Rated Voltage
   32mA~800mA : _mA    1A~15A:_A
Trade mark:The Manufacture’s Logo+Part Number+Approvals
32mA~15A:

Note:Size of the markings have not be specified.

SCOP

Used in electronic equipment.

OUTLINE DRAWING AND STRUCTURE

Outline Drawing and Dimensions(Unit:mm)

Structure

No.	Component	Material	Quantity
(1)	Wire	Alloy	1
(2)	Cap	Brass with mickel plated	2
(3)	Body	Ceramic Tube/Plastic	1
(4)	Lead	Tinned Copper wire	2

4.
APPEARANCES AND CONFIGURATION

Appearances:There shall not be any remaekable stain,rust or crack on the appearances.

Configuration:Axial Leaded Micro-Fuse.

PHYSICAL CHARACTERISTIC
5-1 Tensile test

Keep pulling the cap of the fuse with 10N at axial direction for 1 min.

6.
ELECTRICAL CHARACTERISTICS

% of Ampere Rating	Ampere Rating	Opening Time
100%	32mA - 15A	4 Hours, Min.
200%	32mA - 15A	60 Second, Max
275%	500mA~ 10A	300 msecs., Max.
400%	500mA~ 10A	30 msecs., Max.
1000%	500mA~ 10A	4 msecs., Max.
Item	AVL1	2nd souece(AVL2)
TAPYE	Slo-Blo
Openrating Temp	-55℃~125℃	-55℃~125℃
Temp.derating Currev
	200% Rating 60SEC	60sec MAX
	3millisecond at 1000% rated current	3millisecond at 1000% rated current
Melting I 2 t	3.14	3.14
Cold Ohms	1A/0.13~0.15 Ohm	1A/0.13~0.15 Ohm
Interrupting rating	50A/125VAC 50A/250VAC	50A/250VAC
Dimensions	7.2mm*¢3.2mm	7.2mm*¢3.2mm
Ssfty	UL CSA	CCC

7.
ENVIRONMENTAL SPECIFICATION
7-1 :-55℃~125℃
Operating Temperature: -55℃~125℃
7-2
Storage Conditions

Temperature: +10℃~60℃

On average, It can be stored below the relative humidity or 75% for 3 years.

Without dew, It can be kept under humidity of 95% for 30 days.

SOLDERING PAAMETERS

Wave Solder
260±5℃
Soldering Temperature:260±5℃
:4 Sec. Max.
Soldering Time:4 Sec.Max.
8-2
Manual Solder
:350±5℃
Soldering Temperature: 350±5℃
:3 Sec. Max.
Soldering Time: 3 Sec. Max.
9.
OTHER NOTICE IN USING

If heat shrink tubing was needed,the roast temperature and time should be refer to the following.
:50s Max.
The temperature should be sel under 150℃,roast time:50s Max.
