Bluetooth Analog Digital Power Mixer Amplifier

FOB Price

US$ 30 - 150 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Lumiaudio		Model Number	CMA-240USB-5
Type	Professional Amplifier		Place of Origin	Zhejiang, China

Bluetooth Analog Digital Mixer Amplifier

Model:CMA-240USB-5

Specification

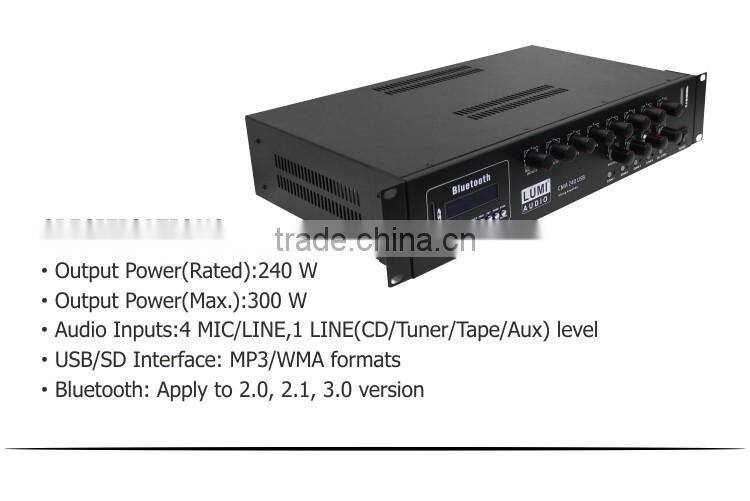

Output Power(Rated):	240 W
Output Power(Max.):	300 W
Audio Inputs:	4 MIC/LINE,1 LINE(CD/Tuner/Tape/Aux) level
USB/SD Interface:	MP3/WMA formats
MIC(Impedance/Sensitivity):	600Ω /2.7 mV balanced
LINE(Impedance/Sensitivity):	47 kΩ /100 mV
AUX(Impedance/Sensitivity):	20 kΩ /100 mV
CD(Impedance/Sensitivity):	47 kΩ /570 mV
Tuner(Impedance/Sensitivity):	56 kΩ /300 mV
Tape(Impedance/Sensitivity):	1 kΩ /1 V
Direct outputs:	4,8,16Ω/25,70,100 V
Zone outputs:	4 zones:100V(ONLY)
Pre-out:	600Ω/1V
Monitor output:	8Ω/1W
Frequency Response:	30Hz-20KHz /±3DB
EQ Contorl(Bass):	±10DB/25Hz-160Hz/Centre Frequency 60Hz
EQ Contorl(Treble):	±10DB/4kHz-20kHz/Centre Frequency 10kHz
S/N ratio:	>80 dB(LINE),>60 dB(MIC)
Total harmonic distortion:	Less than 0.5% at 1KHz, rated power
Main Supply AC power:	110/230V 50/60hz

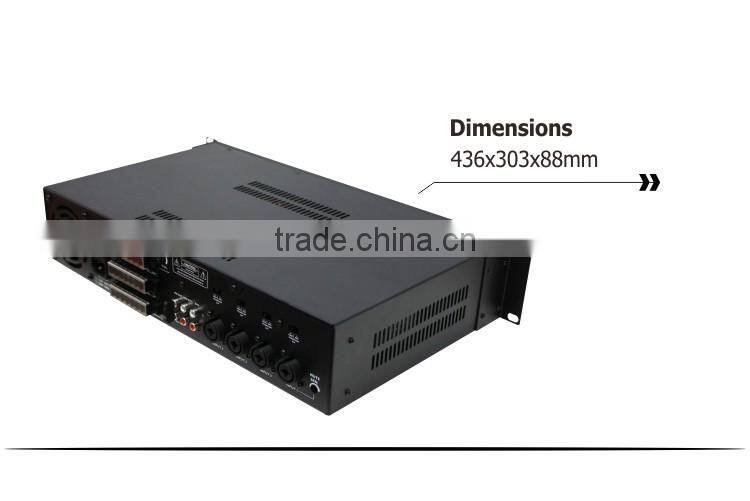

Dimensions:	43630388mm

Product Description
