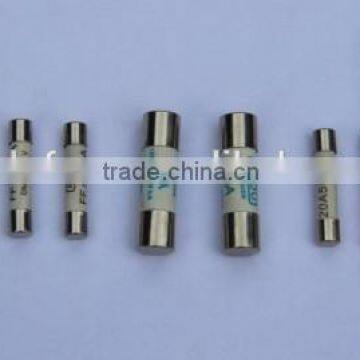

5X20 high voltage fuse,400v,500v,600v,1000v

  5X20 high voltage fuse,32mA-30A; 400v,500v,600v,1000v UL approved

1.
MODEL  NUMBER  AND  SAFETY  CERTIFICATION

   Model  Number:  Part  Number+Rated Current+Rated Voltage+Approvals.

[example]:
5CTU     2A      125V/250V                1)  Part  Number
                                                       2) Rated  Current
1)          2)        3)                      3)  Rated  Voltage

1-2
Rated Current  And  Voltage
 32mA~20A
Rated Current: 32mA~20A
125V/250V AC
Rated  Voltage:125V/250V AC

1-3Marking

The fuse shall have the following marking:

Specification:Characteristic  Symbol+Rated Voltage
   32mA~800mA : _mA125V/250V    1A~20A:_125V/A250V
Trade mark:The Manufacture’s Logo+Part Number+Approvals
32mA~20A:


Note:Size of the markings have not be specified.

2.
SCOPE
Used in electronic equipment.

3.
OUTLINE DRAWING AND STRUCTURE
3-1 (mm)
Outline Drawing and Dimensions(Unit:mm)




3-2
Structure


4.
APPEARANCES AND CONFIGURATION
4-1
Appearances:There shall no fragmentation and of remarkable blotch.
4-2
Configuration:Axial Leaded Fuse.

5.
PHYSICAL CHARACTERISTIC
5-1
Tensile test

Keep pulling the cap of the fuse with 10N at axial direction for 1 min.

6.
ELECTRICAL CHARACTERISTICS

Pre-Arcing Time/Current Characteristic


a,Breaking capacity()(Time Lag and Fast Acting)


b,Electrical characteristics
(UL)


c,Temperature character
    When 100% of rating the temperature rise doesn’t exceed 75℃.

d,Code&Approvals
