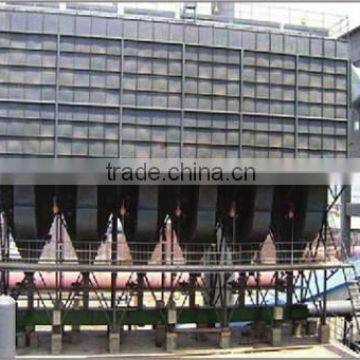

Air box pulse bag type dust collector

FOB Price

USD $15,000 - $20,000 / Unit

1 Unit(Min.Order)

Supply Ability 15 Unit / Units per Month
Port SHANGHAI
Payment TermsD/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	ESP Dust Collector
Efficiency	99.9%	Minimum Particle Size	1 Micron
Place of Origin	Shanghai, China	Brand Name	YAOQIN
Model Number	96-4	Dimension(LWH)	Customized
Weight	2ton	Certification	CE SGS ISO Certificate
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

1)Generally ,polyester needle-felt can be selected as the material for its filtering media ,if its operation temperature is lower than 120℃,then aramid fiber needled felt can be used.

2)This number of bags in each chamber of the plenum pulse bag filter has four types that are 32,64,96 and 128, the number of dust collection chamber of the plenum pulse bag filter is 3 to 28, the filtration area is 93 to 4,361m² and the air volume is 6,900 to 314,000m³/h. this plenum pulse bag filter can be operated under negative pressure or positive pressure whose collection efficiency can be up to 99.9%.

3)If the outdoor temperature is below -25℃, an insulation device shall be added to the plenum bag filter.

Main components	Vendor
PLC	Schneider
Touch screen	Siemens
Inverter	Siemens
Motor	Siemens
Pneumatic parts	Airtag
Bearing and bearing Base	SKF
Overtravel-limit switch	Honeywell
Other electrical parts	Schneider

Model	Air volume	Filtration velocity	Filtration area	Bag QTY	Resistance	Dust concentration	Insulation layer area	Weight
Parameter	(m³/h)	m/min)	(m²)	pieces	(Pa)	(g/m³)	(m²)	(Kg)
32-3	6900	1.2-2.0	93	96	1470-1170	<1000	26.5	2880
32-6	13390	1.2-2.0	186	192	1470-1170	<1000	48.5	6480
64-4	17800	1.2-2.0	248	256	1470-1170	<1000	70	7280
96-4	26800	1.2-2.0	372	384	1470-1170	<1300	110	10452
*96-26**	80700	1.2-2.0	1121	1152	1470-1170	<1300	210	30240
*128-212**	269100	1.2-2.0	3728	3072	1470-1170	<1300	322	96400
*128-213**	291600	1.2-2.0	4050	3328	1470-1170	<1300	337	93600
*128-214**	314000	1.2-2.0	4361	3584	1470-1170	<1300	252	100800

Packaging & Shipping

Standard wood case by ocean ship

Our Services

Our factory offer free train for installing and maintaine for client .
