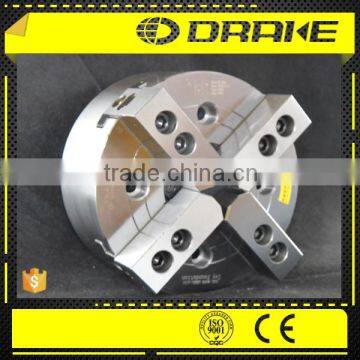

4 jaw power hydraulic lathe chuck for cnc woodworking machine

4 jaw power hydraulic lathe chuck for cnc woodworking machine

Technical features:

1. Adopt the advanced alloy steel material, all with the surface by surface

    hardening treatment, in order to improve the accuracy and durability.

2. It is a wedge-hook type 2 jaw with the large through-hole.

3. Matching surfaces of all parts hardened, ground and lubricated directly.

4. Construction of high rigidty and high clamping accuracy

5. with flange connection, A connection.

6. Supports large clamping forces and high speeds

7. Suitable for clamping part of a workpiece inserted into the thru hole, checking the

    seating, or modifying spindle coolant specifications.

8. Capable of bar-feeding

 There are three questions to answer to aid the correct choice of power chuck:

1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

Size Parameters

It is recommended to grease chucks at least twice a day in order to maximize longevity

Performance Parameters

The matching products including:

1. Soft jaws.

2. Hex. socket head bolt, wrench, eyebolt, handle pin, handle body

3. Adaptor plate
