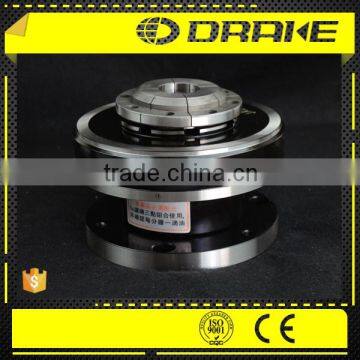

JA6-100 high precision Pneumatic power Air diaphragm lathe collet chuck for cell phone buzzer

JA6-100 high precision Pneumatic power Air diaphragm lathe collet chuck for cell phone home button

Feature of spindle collet chuck

1. Repeatability is within 0.001mm

2. Clamping precision is reached to 0.002mm

3. Pneumatic(air) cylinder is integrated: no cylinder or draw tube is needed.

4. Real front-mounting design allows easy installation and operation.

5. Complete through-hole is reserved. No limitation caused by a draw tube or an air feeder.

6. Highly-sealed chuck body helps protect cutting chips, dust or coolant fluid from entering,

    100% waterproof and dustproof.

7. Gentle and precise clamping: suitable for fragile parts machining.

8. Low maintenance is required.

9. Oil-mist air lubricated. Very low temperature rising under high RPM.

10. Clamping force is proportional to input air pressure. Easy for adjusting.

Hope you can tell us following information:

1. Workpiece: outer diameter, Inner diameter, Iength, Material

2. Clamping precision, machining precision

3. Working RPM

4. Machining allowance

Size Parameters

The matching products including:

1. Connecting bolt, quick coupling, filter block

2. Collets
