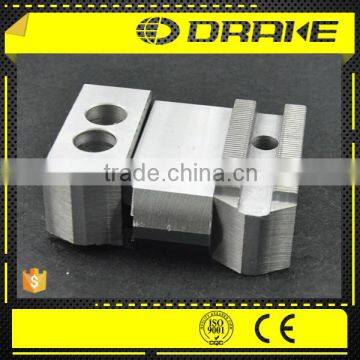

Soft jaw for hydraulic power drilling oil chuck
US$ 39.27 - 53.72
/ Pair
1 Pair(Min. Order)
- SHANGHAI QINGDAO NINGBO GUANGZHOU TIANJIN DALIAN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Soft Jaws applied to CNC Lathe Machine
-
Hard Jaws For Hydraulic Chucks used for CNC Turning Services
-
soft jaws for lathe chucks soft jaws collets
-
Soft Jaws For Hydraulic Chucks used for CNC Turning Services
-
Soft Jaws For Super Precision Chucks
-
Steel Soft Chuck Jaws for 8" CNC Lathe Chucks, 1.5" Tall (Set of 3 Pieces)
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DRAKE | |
| Model Number | HC04 Soft Chucks Jaws | Power | Hydraulic | |
| Number of Jaws | Other |
Product Description
Soft jaw for hydraulic power drilling oil chuck
Product Description
Parameters
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Szie Parameters
| Model/Spec. |
C-1 |
C-2 |
C-3 |
C-4 |
C-5 |
C-6 |
C-7 |
C-8 |
C-9 |
C-10 |
C-11 |
C-12 |
C-13 |
Serration Pitch | 3-jaw Weight (kg) |
| HC04 | 53 | 23 | 23 | 10 | 5 | 9 | 14 | 30 | 14 | 9 | 14 | M8 | 3 | 1.5×60° | 0.45 |
| HC05 | 62 | 25 | 30 | 10 | 5 | 9 | 14 | 39 | 14 | 9 | 21 | M8 | 5 | 1.5×60° | 0.7 |
| HC06 | 73 | 31 | 36 | 12 | 5 | 15 | 20 | 38 | 17 | 11 | 21 | M10 | 14 | 1.5×60° | 1.5 |
| HC08 | 95 | 35 | 37 | 14 | 5 | 24 | 25 | 46 | 19 | 13 | 22 | M12 | 16 | 1.5×60° | 2.4 |
| HC10 | 110 | 40 | 42 | 16 | 5 | 30 | 30 | 50 | 19 | 13 | 27 | M12 | 18 | 1.5×60° | 3.7 |
| HC12 | 130 | 50 | 50 | 21 | 5 | 39 | 30 | 61 | 25 | 17 | 33 | M16 | 23 | 1.5×60° | 6.5 |
| HC15 | 165 | 62 | 62 | 22 | 8 | 37 | 43 | 85 | 32 | 21 | 38 | M20 | - | 1.5×60° | 12.5 |
| HC08-1 | 95 | 35 | 37 | 12 | 5 | 24 | 20 | 51 | 17 | 11 | 21 | M10 | 14 | 1.5×60° | 2.4 |
| HC12-1 | 130 | 50 | 50 | 18 | 5 | 39 | 30 | 61 | 23 | 15 | 30 | M14 | 23 | 1.5×60° | 6.6 |
| HC15-1 | 165 | 62 | 62 | 25.5 | 5 | 37 | 43 | 85 | 32 | 21 | 38 | M20 | - | 1.5×60° | 12.5 |
| HC24-1 | 180 | 64 | 70 | 25 | 9 | 40 | 60 | 80 | 32 | 21 | 45 | M20 | - | 3.0×60° | 15.8 |
| HC32-1 | 210 | 74 | 90 | 25 | 9 | 40 | 80 | 90 | 32 | 21 | 65 | M20 | - | 3.0×60° | 29.2 |
NOTE: We can provide all kinds of soft jaws
45#
| Chemical Elements(%) | Mechanical Property (Mpa) | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | Tensile Strength | Yield Strength |
| 0.42~0.50 | 0.17~0.37 | 0.50~0.80 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 | ≥600 | ≥355 |
Certifications
Flow & Packing
Equipments
Video
soft jaws for power chuck soft jaws for power chuck soft jaws for power chuck soft jaws for power chuck soft jaws for power chuck soft jaws for power chuck
