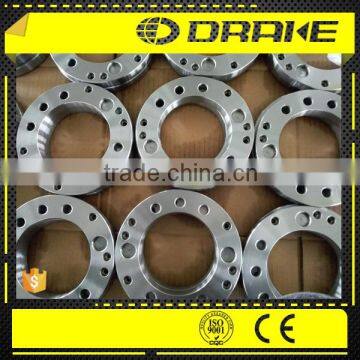

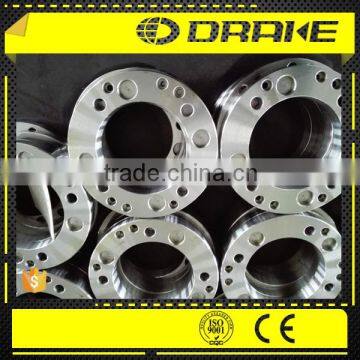

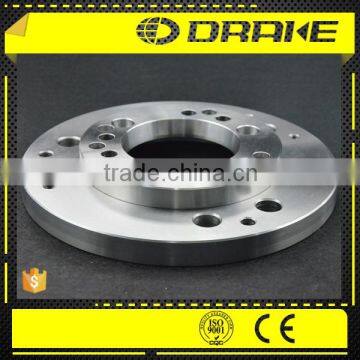

Hydraulic Chuck Adaptor Plates for Cutting Wheel Lathe Machine
US$ 15.49 - 45.61
/ Set
1 Set(Min. Order)
- SHANGHAI TIANJIN NINGBO QINGDAO DALIAN etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hydraulic Chuck Adaptor Plates for Centerless Gringing Machine
-
Hydraulic Chuck Adaptor Plates for Metal CNC Straightener Lathe Machine
-
Hydraulic Chuck Adaptor Plates for Metal Woring Cnc Lathe Machine
-
Hydraulic Chuck Adaptor Plates for Shaft and Pinion Turning
-
Hydraulic Chuck Adaptor Plates for Automatic CNC Lathe Machine
-
Hydraulic Chuck Adaptor Plates for Cnc Carving Lathe Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | IVY | |
| Model Number | -06A25 | Power | Hydraulic | |
| Number of Jaws | 3 |
Product Description
Hydraulic chuck Adaptor Plates for Cutting Wheel Lathe machine
Product Description
Parameters
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec. | Nose of Spindle D | A | H | H2 | E | Reference Drawing |
| -05A24 | A24 | 110 | 82.6 | - | 20 | fig1 |
| -06A25 | A25 | 140 | 104.8 | - | 15 | fig1 |
| -08A26 | A26 | 170 | 133.4 | - | 17 | fig1 |
| -10A28 | A28 | 220 | 171.4 | - | 18 | fig1 |
| -12A28 | A28 | 220 | 171.4 | - | 18 | fig1 |
| -15A211 | A211 | 300 | 235 | - | 22 | fig1 |
| -18A211 | A211 | 300 | 235 | - | 22 | fig1 |
| -21A215 | A215 | 380 | 300.2 | - | 27 | fig1 |
| -06A24 | A24 | 140 | 82.6 | 104.8 | 20 | fig2 |
| -08A25 | A25 | 170 | 104.8 | 133.4 | 23 | fig2 |
| -10A26 | A26 | 220 | 133.4 | 171.4 | 28 | fig2 |
| -12A26 | A26 | 220 | 133.4 | 171.4 | 28 | fig2 |
| -15A28 | A28 | 300 | 171.4 | 235 | 33 | fig2 |
| -18A28 | A28 | 300 | 171.4 | 235 | 33 | fig2 |
| -21A211 | A211 | 380 | 235 | 330.2 | 41 | fig2 |
| -05A25 | A25 | 110 | 104.8 | 82.6 | 45 | fig3 |
| -06A26 | A26 | 140 | 133.4 | 104.8 | 40 | fig3 |
| -08A28 | A28 | 170 | 171.4 | 133.4 | 45 | fig3 |
| -12A211 | A211 | 220 | 235 | 171.4 | 54 | fig3 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
