Nylon Wire Expandable Sleeving
- SHENZHEN
- T/T Credit Card
You May Like
-
Cable Sleeving Kit (UV Expandable Sleeving ,Heat Shrink Tubing)
-
Cable Management-PET Expandable Sleeving
-
Cable Protection-PET Expandable Sleeving
-
Cable Protection-Nylon Expandable Sleeving
-
Cable Protector Sleeve-PET Expandable Sleeving
-
Cable Protector Sleeve-Polyester High Flame-retardant Expandable Sleeving
Product Details
| Place of Origin | Guangdong, China | Brand Name | JDDTECH | |
| Model Number | JDD-PA | Type | Other, Expandable sleeving | |
| Material | Other, PA / Nylon |
Product Description

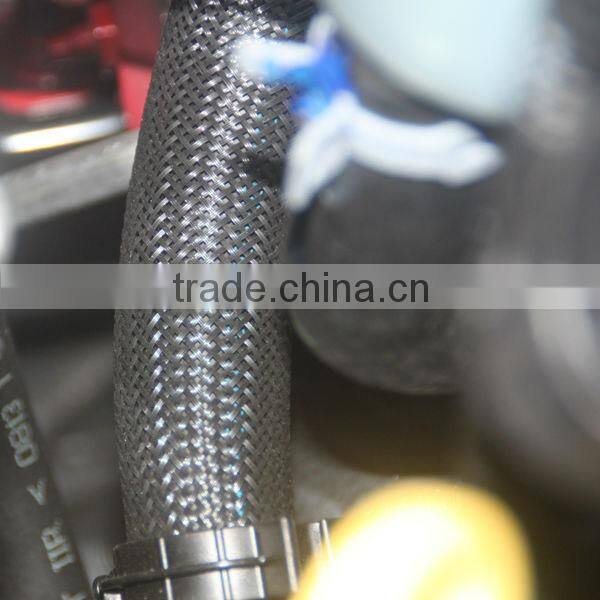

JDD-PA braided sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It maintains a high degree of flexibility and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft slick surface resisting snags when dragged over rough surface.
Application: Most commonly used to protect sire harnesses, cable assemblies, air conditioned pipes, fluid pipes in automotive, aerospace and military applications.
| Technical data | |
| Material | Polyamide 6.6 |
| Operating range | -60°C-+160°C |
| Melt point | 256±5°C |
| Flnmmability | VW-1 |
| Standard color | Black and grey |
| Certificate | ROHS,REACH, |
| Cutting tool | Hot knife |
| Datasheet | |||||
| Nominal sizeW | Part No. | Expanded range mm | PackingL | ||
| Inch | mm | Min.I | Max.O | Standard spool | |
| 1/8" | 3 | PA-003 | 1 | 6 | 1000 m |
| 1/4" | 6 | PA-006 | 3 | 9 | 500 m |
| 5/16" | 8 | PA-008 | 5 | 16 | 350 m |
| 3/8" | 10 | PA-010 | 7 | 19 | 350 m |
| 1/2" | 12 | PA-012 | 8 | 24 | 300 m |
| 5/8" | 16 | PA-016 | 10 | 27 | 250 m |
| 3/4" | 19 | PA-019 | 14 | 30 | 200 m |
| 1" | 25 | PA-025 | 18 | 35 | 200 m |
| 1 1/4" | 30 | PA-032 | 20 | 50 | 150 m |
| 1 1/2" | 40 | PA-038 | 30 | 60 | 100 m |
| 1 3/4" | 45 | PA-045 | 35 | 75 | 100 m |
| 2" | 50 | PA-050 | 40 | 80 | 100 m |
| 2 1/2" | 64 | PA-064 | 45 | 105 | 100 m |
| 3" | 76 | PA-076 | 64 | 120 | 100 m |
| Unit:mm | |||||
