Automtive Sleeve-Auto FR1130 Expandable Sleeving
- Shenzhen
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | JDD TECH | |
| Model Number | Auto FR1130 | Type | Other, sleeve | |
| Material | Other, Polyester, nylon |
Product Description
Description:

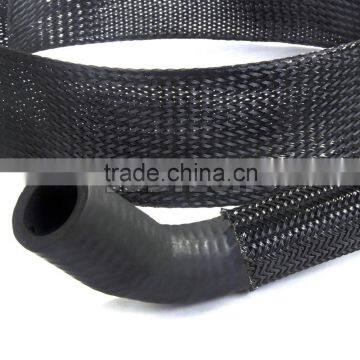

Auto FR1130expandable sleeving is made of larger Nylon 6.6 and smaller polyester monofilament mixed braiding, the dual monofilament construction offers durable abrasion resistance and oil resistance in a wide range of industrial applications. It is lightweight and the expandable structure allows for easy to install over long lengths.
Application:
It’s used to cover cables, wire harnesses, tubes, industrial hoses where need extremely anti-abrasion in automotive, railway and panel board field.
Technical data:
Material: Polyester, Nylon
Working temperature: -50℃~+150℃
Flammability: FMVSS302
Color: Black
Cutting tool: Hot Knife
Approval: ROHS
Dimensions:
Part No. | Nominal Size (W) | Expanded Range | Packing | ||
Inch | mm | min.(I) | max.(O) | ||
FR1130-010 | 3/8" | 10 | 7 | 15 | 350m |
FR1130-012 | 1/2" | 12 | 8 | 17 | 300m |
FR1130-014 | 5/9" | 14 | 9 | 20 | 250m |
FR1130-016 | 5/8" | 16 | 10 | 23 | 250m |
FR1130-019 | 3/4" | 19 | 13 | 28 | 200m |
FR1130-025 | 1" | 25 | 16 | 35 | 200m |
FR1130-032 | 1-1/4" | 32 | 20 | 45 | 100m |
Unit: mm
