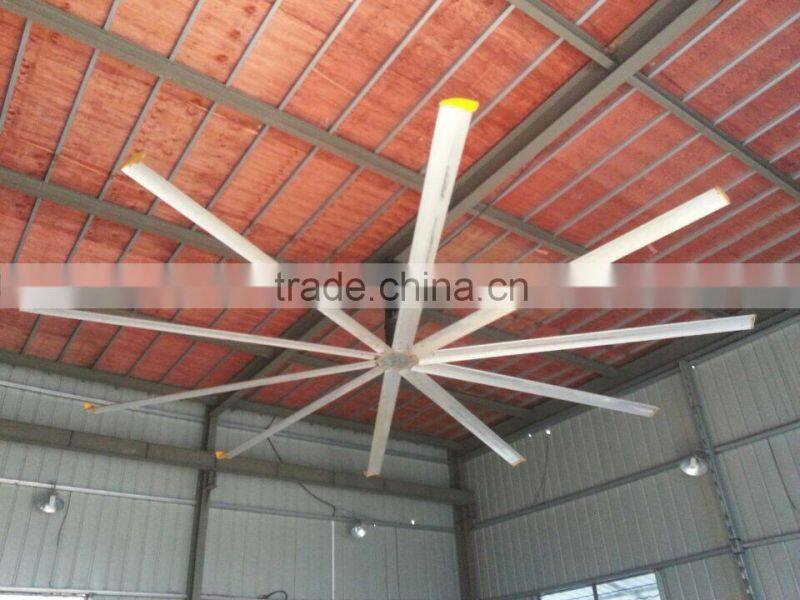

240/480V Industrial Big Ceiling Fan/HVLS Ceiling Fan
- FOBningbo
- T/T
You May Like
-
Large Coverage Area Industrial Big Ceiling Fan to Improve Indoor Tempreture
-
Environmental Protective Big Ceiling Fan/7200mm Air Flow Ceiling Fan
-
Electrical Commercial Big Ceiling Fan With 1.5KW High Power
-
Industrial Cooling AC Big Ceiling Fan/Air Conditioner Ceiling Fan
-
Industry/Warehouse/Poultry Big Ceiling Fan With CE Approval
-
Low Speed 24ft Industrial Ceiling Fan With 10 Pcs Blades
Product Details
| Electric Current Type | AC | Blade Material | Stainless Steel | |
| Mounting | Ceiling Fan | Place of Origin | Zhejiang, China | |
| Brand Name | DINGBEN HVLS ceiling fan | Model Number | EHBY2 HVLS ceiling fan | |
| Power | 1500W HVLS ceiling fan | Voltage | 220V HVLS ceiling fan | |
| Air Volume | 12000 HVLS ceiling fan | Speed | 0-42RPM HVLS ceiling fan | |
| Certification | CE, UL | After-sales Service Provided | Overseas third-party support available |
Product Description
240/480V Industrial Big Ceiling Fan/Wall Ceiling Fan
Main Sizes of Big Ceiling Fan HVLS ceiling fan
| MODEL | VOLTAGE(MM) | POWER(W) | AIR FLOW RATE | FAN BLADE DIA(MM) | REVOLVING SPEED OF FAN(RPM) | HEIGHT(MM) | FREQUENCY(HZ) | NOISE | COVERAGE AREA(M2) |
| CHK-72-10 | 240/480 | 1500 | 12000 | 7200(24FT) | 0-42 | 1100(3.3FT) | 50/60 | <65 | 1500 |
| CHK-60-10 | 240/480 | 1500 | 10000 | 6000(20FT) | 0-45 | 1100(3.3FT) | 50/60 | <65 | 1200 |
| CHK-54-10 | 240/480 | 1500 | 9000 | 5400(18FT) | 0-46 | 1100(3.3FT) | 50/60 | <65 | 1000 |
| CHK-48-10 | 240/480 | 1500 | 8500 | 4800(16FT) | 0-47 | 1100(3.3FT) | 50/60 | <65 | 900 |
| CHK-42-10 | 240/480 | 1500 | 8000 | 4200(16FT) | 0-48 | 1100(3.3FT) | 50/60 | <65 | 850 |
| CHK-36-10 | 240/480 | 1500 | 7500 | 3600(12FT) | 0-49 | 1100(3.3FT) | 50/60 | <65 | 800 |
| CHK-30-10 | 240/480 | 1500 | 7000 | 3000(10FT) | 0-50 | 1100(3.3FT) | 50/60 | <65 | 700 |
Feature: of HVLS ceiling fan
- HVLS(High Volume-Low Speed): The maximum speed is 50RPM,bring 12000m³/h air volume,the coverage is 1500 m2.
- Size: In the industry, the fan blade is the widest, diameter 7.2m/24ft, height 1.1m/3.3ft.
- Energy saving: The installed motor-power is only 1.5kw (while even absorbing less than that ), The maximum effect reduces the cost.
Function: of HVLS ceiling fan
- Body cooling: The natural wind from the fan, let people feel cool 5-8 degrees.
- Ventilation and Dehumidification: Promote the air flow, avoid damp.
- Equilibrium temperature: Balance temperature, avoid waste.
Application: of HVLS ceiling fan
- large logistics warehouse and distribution center
- large workshop
- public building
- large farms, animal husbandry
1.Trade Terms:FOB,CIF of HVLS ceiling fan
2.Payment Terms:T/T,L/C of HVLS ceiling fan
3.Dilivery Time: 10-20days after repaid of HVLS ceiling fan

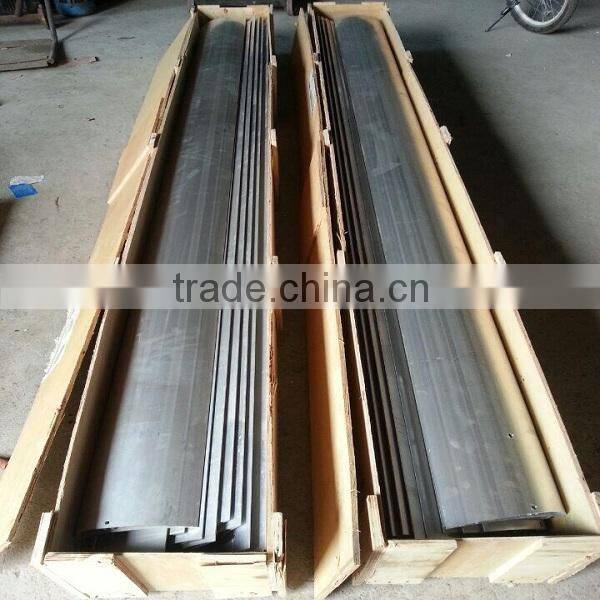

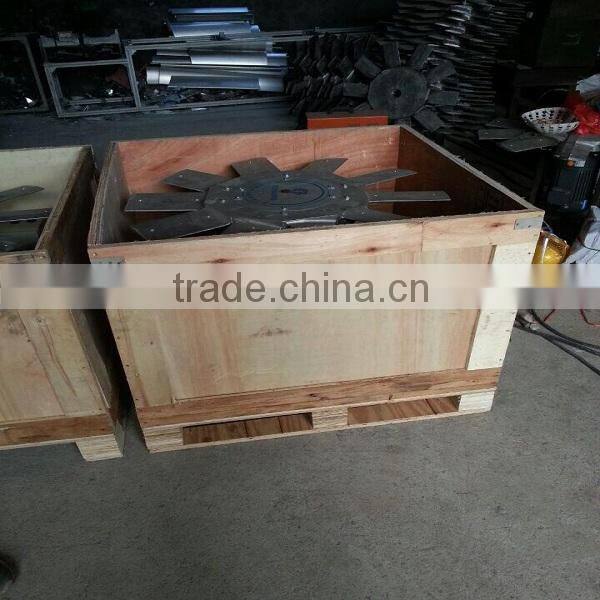

4.Package:by carton of HVLS ceiling fan
5.Shipping:by sea/air/express delivery of HVLS ceiling fan
Pre-sale Service of HVLS ceiling fan
* Inquiry and consulting support
* OEM support

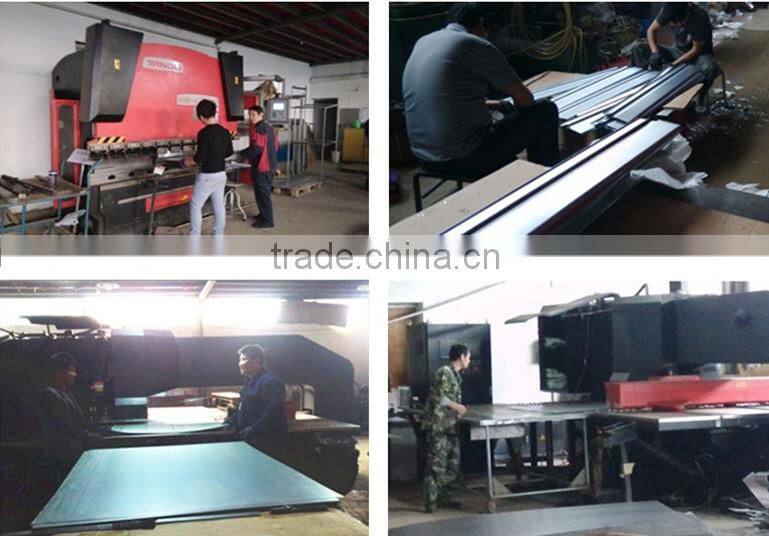

* View our Factory
After-sale Service of HVLS ceiling fan
Professional service team
Permanent after-sales, if the product doesn't do it, after-sales service is still there.
