Home > Products > Wall-Mount Power Adapters > AC/DC USB Power Adapter 12V 0.5A

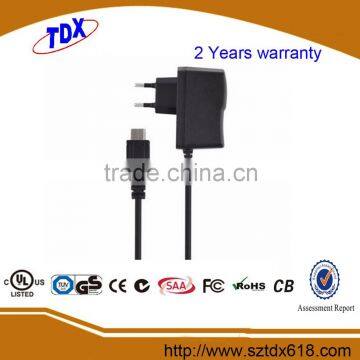

AC/DC USB Power Adapter 12V 0.5A
- 200000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
-
Hot Selling DC in 12V Adaptor 1A Shenzhen Factory
-
Wall Adapter DC12v 1A Adaptor UL
-
100-240v 50-60hz 29v 270mA Adaper 8w Switch Power Adapter
-
OEM Ex-factory Price AC DC Power Adapter 6v 400mA Power Supply
-
Wall Mount 36v 500ma adapter with CE ROHS UL FCC GS RCM
-
6 Volt DC Adapter 6V 1A with CE ROHS UL FCC GS RCM
Product Details
Place of Origin | Guangdong, China | Brand Name | TDX | |
Model Number | TDX-1200500 | Output Type | DC | |
Connection | Plug In |
Product Description
AC/DC USB Power Adapter 12V 0.5A
Features:
- TDX good quality power adapter with reasonable price
- Universal AC input / Full range
- High efficienty up to 91%
- No load power consumption less than 0.15W
- Comply with EU ERP and CoC Versio
- AC plugs can be customized , such as US EU UK AU plugs
- DC connector/barrel tip size can be customized : standard 5.5*2.5mm , 5.5*2.1mm,etc.
- Protections: Short cirtuit / Overload / Over voltage / Over temperature
- Fully isolated plastic case
- Fanless design, cooling by free air convection
- 2 years warranty
Applications:
- Household appliance
- Robotic lawn mower
- Battery charging
- General electronic products in dusty or humid environment
ITEM | TDX-1200500 |
Output Voltage | 3-24V |
Output Current | 0.1-1A |
Input Voltage | AC 90V-264V |
Input Frequency | 47-63Hz |
Output Wattage | 6W |
Input Current | 0.5A Max |
Inrush current | 40A Max |
Line Regulation | 1% Max |
Load Regulation | 5% Max |
Ripple&Noise | 1% Max |
Efficiency | 73-78% |
Operating Temperature | 0-40℃ |
Storage Temperature | 20-85℃ |
Over-Voltage Protection | Auto Recovery |
Short-circuit protection | Auto Recovery |
Safety Standard | CB UL GS CCC SAA |
EMC(EMI/EMS) | CE FCC C-TICK |
Size | Case Size:74*38*29mm |
Warranty | 24Months |
Shenzhen Teng Da Xing Electronic Co.,Ltd established in 2009,which covers an area of 2000 square meters and with more than 200 skilled employees.
We specialized in researching all kinds of switch power adapters,chargers,LED power and power supplier security,which have a rich experience of design and manufacture to various of different customers depending on excellent innovation and management team.To make sure the products be with high quality,the main raw materials were purchased from high quality supplier which all passed through international certifications.So,our products could be used in extensive coverage,like consumer electronic products,commercial machines and industrial devices.
For now,we have attained the CE,ROHS,UL,FCC,SAA,CCC,C-TICK,CB,KC certifications.
Our main customers are from European, North American, South Africa,Korea,Asia,Australia,and so on.
We have 5 production lines and our production capacity is 150,000pcs per month.
Besides,it's very convenient to visit our factory ,because it's only takes 15 minutes to the airport and 5 minutes to the metro station (Gushu Sation line1).
Welcome your inquiries. We are sure to be your good supplier.
1:Our service
1) Any inquiries will be replied within 24 hours
2) Professional manufacturer.welcome to visit our website:
2. OEM/ODEM available
1). Silk print logo on the power adapter;
2).Customized power adapter housing;
3). Any your idea on the power adapter we can help you to design and put it into production
3. High quality,reasonable & competitive price ,fast lead time.
4. After-Sale Service :
1).All power adapters will be strictly quality checked in factory before packing
2).All power adapters will be tested 4 times and made 4 hours age testing
3). All power adapters will be well packed before shipment
4). All power adapters have 2 years warranty ,if there was any default units ,take some pictures,we will replace the related quantity.
5. Faster delivery :
Sample order in stock ,will be sent out in 2-3 days after confirmation, and 7-12 working days for bulk production.
1: Would you please kindly tell us the below details for suggesting you the suitable adapter?
1) What's the input please? eg:100-240VAC, 50/60Hz
2)What's the output, please? eg: 12V DC 3A
2:How to choose suitable power adapter ?
1) If your product working current is 1A ,we suggest you to use 12v 1.5A model ,so the adapter can keep good working status and long life ,and the working temperature is very low ,the 12v 1.5A adapter's price is nearby with 12v 1A .
3. Payment
You can pay for the order via :T/T,L/C,Western Union, or PAYPAL
4. Shipping
We have good cooperation with DHL, UPS, FEDEX,China air Post ,and can provide economic and fast shipment service .
5. How to contact us?
Send your Inquiry Details in the below for free sample, Click "Send" Now!
Contact Us
- Shenzhen Teng Da Xing Electronic Co., Ltd.
- Contact nameLinda Nie Chat Now
- Phone86-0755-27845954
- Address3/F ,C Building,Folsom Technology Park,Hangcheng Avenue, Xixiang Street, Shenzhen, Guangdong
