Home > Products > Si3N4 Products > 1600C Resistant Oxidation Silicon Nitride Ceramic Tube
1600C Resistant Oxidation Silicon Nitride Ceramic Tube
- FOB Shanghai/Zhengzhou CIF Seoul/Taiwan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
1600C Ceramic Silicon Nitride Bond Silicon Carbide Protect Tube
-
1600C Resistant Erosion Silicon Nitride Thermocouple Protect Tube
-
China Supplier Ceramic Silicon Nitride Si3N4 Tubes
-
High Temperature Refractory Silicon Nitride Tube for Non-ferrous Metals Industry
-
1600C Industrial Ceramic Silicon Nitride Tube and Pipe Quality Choice
-
Industrial Resistance to Erosion Thermocouple Protection Silicon Nitride Pipes
Product Details
| Place of Origin | Henan, China | Type | Ceramic Tubes | |
| Material | Alumina Ceramic | |||
| Model Number | NT-19 | Brand Name | LEPE |
Product Description
1600C resistant oxidation silicon nitride ceramic tube
1.Description of Product
Silicon Nitride (Si3N4) bonded silicon carbide (SiC) material is a new type of advanced refractory materials. Compared with silicon carbide product, the product has characteristics of small thermal expansion, high thermal conductivity, not easy to have thermal stress, good thermal shock resistance, corrosion resistance, extreme cold or heat, oxidation, high temperature creep resistant ability and easily made into products with high dimensional accuracy requirements in line.

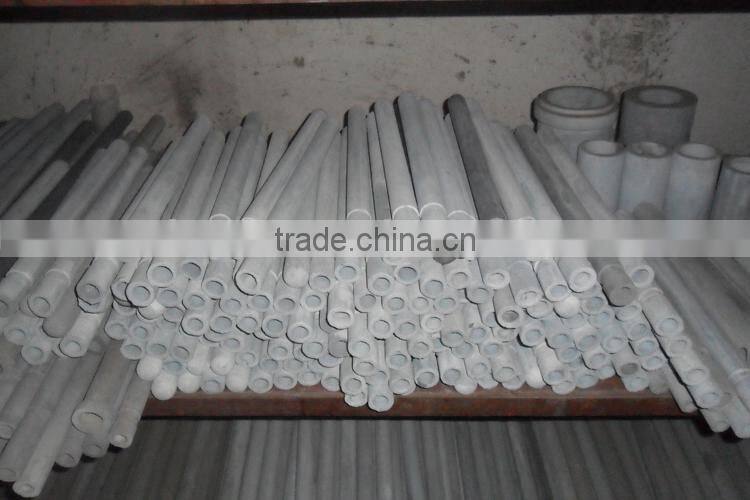

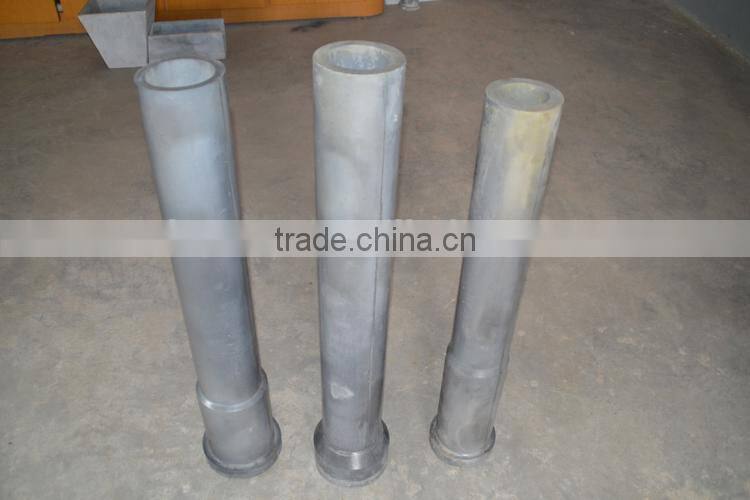

2.Pictures of Product
3.Parameter of Product silicon nitrid ceramic tube
| Item | Unit | Index | |
| Bulk Density | g/cm3 | >2.45 | |
| Apparent Porosity | % | <17-18 | |
| Compression Strength | MPa | ≥150 | |
| Modulus Rapture at Elevated Temperature | MPa | >40-45 | |
| Max Service Temperature | ℃ | 1600 | |
| Thermal Conductivity | w/m.k | 15(1100℃) | |
| Chemical Composition | SiC | % | ≥72 |
| Si3N4 | % | ≥21 | |
| Fe2O3 | % | ≥0.5 | |

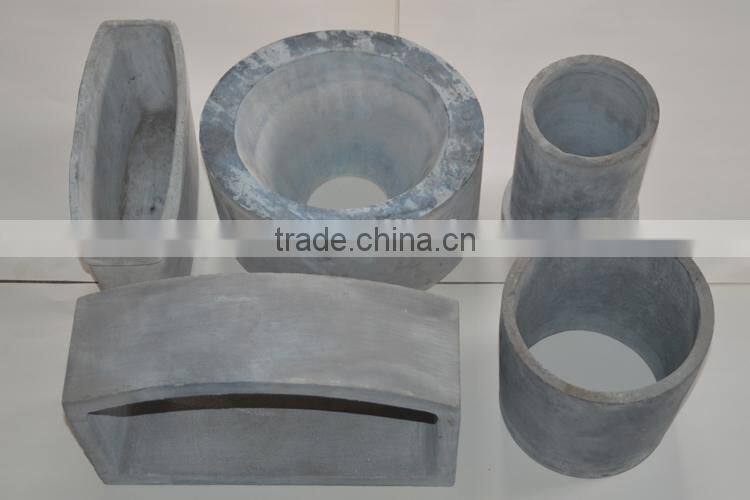

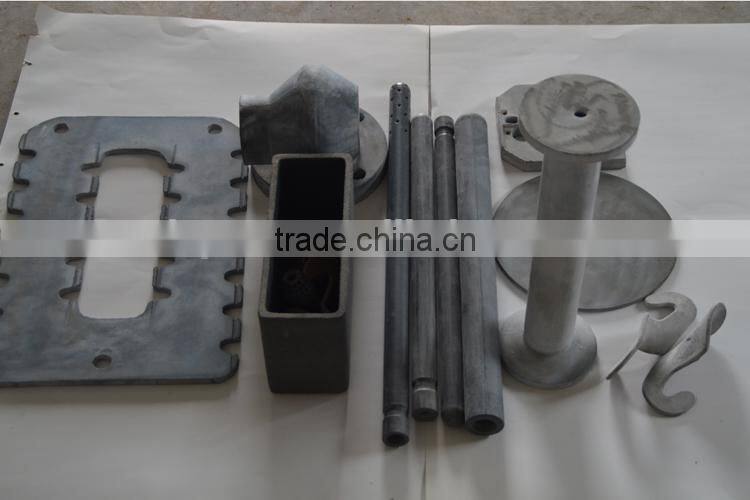

4.Different Shapes of Si3N4 Product
5.Application of Product silicon nitrid ceramic tube
Si3N4 tube is made from composite material with combination of Si3N4 and SiC.
It is special used as rise tube in non-ferrous metal industry, thermocouple protective tube, electric heating element protective tube, gas protective tube in carbon fiber industry.
It is characterized by good ability in resisting corrosion, resisting thermal shock,resisting oxidizability,resisting high temperature liquid scour.
More products details, pls click the photo.
1.Introduction of Company silicon nitrid ceramic tube
Business Type:Manufacturer, Trading Company
Registration No.: 410102000058705
Main Products:MoSi2 heating element,SiC heating element,Ceramic fiber board,Silicon carbide products,Silicon nitride products
Location:Henan, China (Mainland)
